DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
_Series.jpg)
|
3414NLFAN AXIAL 92X25.4MM 24VDC WIRE |
3,218 | 37.51 |
|
Datasheet |
3400N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 35.9 CFM (1.01m³/min) | - | Ball | Tubeaxial | - | 23.0dB(A) | 1.4 W | 1950 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
|
614NNFAN AXIAL 60X25.4MM 24VDC WIRE |
4,379 | 37.78 |
|
Datasheet |
600N | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 24.7 CFM (0.692m³/min) | - | Ball | Tubeaxial | - | 35.0dB(A) | 1.8 W | 5100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.145 lb (65.77 g) |
BF.jpg)
|
CFM-A238BF-165-635-22FAN AXIAL 120X38MM 12VDC WIRE |
2,902 | 38.06 |
|
Datasheet |
CFM-120BF | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 213.8 CFM (6.98m³/min) | 1.430 in H2O (356.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 63.5dB(A) | 33.36 W | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
3414NFAN AXIAL 92X25.4MM 24VDC WIRE |
4,652 | 39.96 |
|
Datasheet |
3400N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 49.4 CFM (1.38m³/min) | - | Ball | Tubeaxial | - | 32.0dB(A) | 2.3 W | 2700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
|
|
OD1238-24HHB10AZX24VDC 120X120X38MM REVERSIBLE FL |
4,361 | 0.00 |
|
Datasheet |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 146.0 CFM (4.09m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Reversible Flow, Speed Sensor (Tach) | 50.0dB(A) | 8.2 W | 3590 RPM | 4 Wire Leads | - | 5 ~ 149°F (-15 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
614NHHRFAN AXIAL 60X25.4MM 24VDC WIRE |
1,609 | 39.60 |
|
Datasheet |
600N | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 2.9 W | 6850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.146 lb (66.22 g) |
|

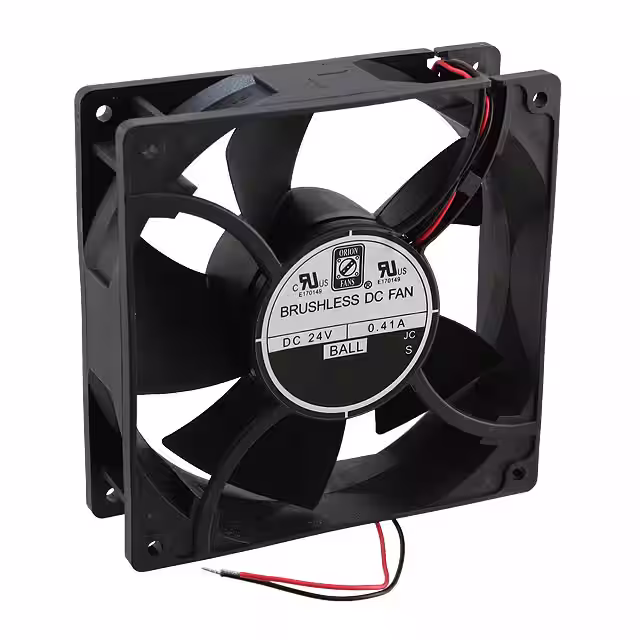

OD127-24HBFAN AXIAL 127X38.5MM 24VDC WIRE |
1,715 | 33.68 |
|
Datasheet |
OD127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.50mm | 161.0 CFM (4.51m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | - | 56.0dB | - | 3500 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|

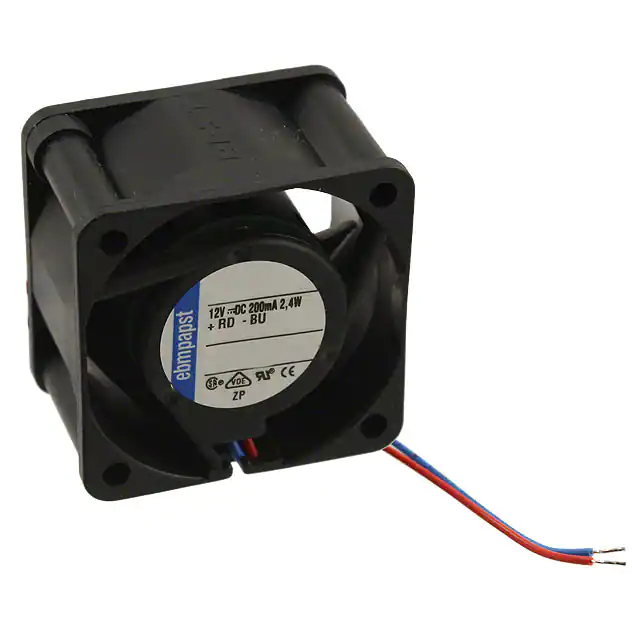

412JFAN AXIAL 40X25.4MM 12VDC WIRE |
2,477 | 42.05 |
|
Datasheet |
400J | Box | Active | 12VDC | Square - 40mm L x 40mm H | 25.40mm | 11.2 CFM (0.314m³/min) | - | Ball | Tubeaxial | - | 39.0dB(A) | 2.4 W | 10300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.111 lb (50.35 g) |
|
19028865AFAN AXIAL 119.1X39.1MM MD12B1 |
2,250 | 57.13 |
|
Datasheet |
Muffin XL | Bulk | Active | 12VDC | Square - 119.13mm L x 119.13mm H | 39.12mm | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 50.0dB(A) | 6 W | 3330 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 1.4 lbs (635.0 g) |
|

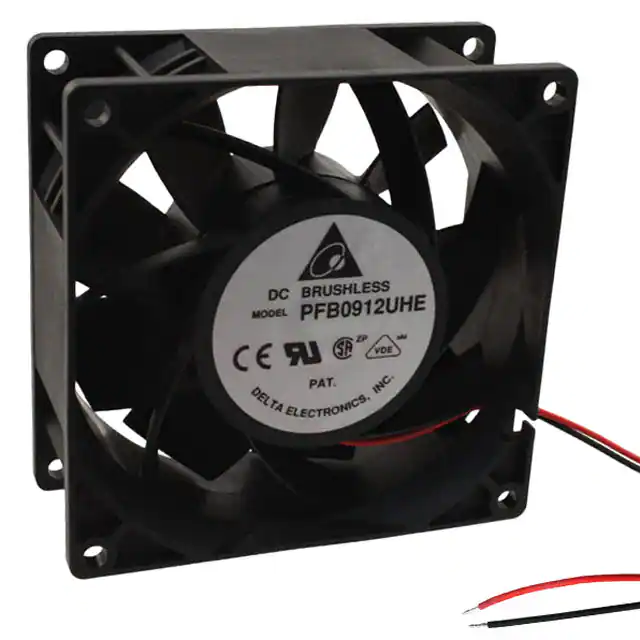

PFB0912UHEFAN AXIAL 92X38MM 12VDC WIRE |
4,712 | 38.29 |
|
Datasheet |
PFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 153.5 CFM (4.30m³/min) | 1.449 in H2O (360.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 23.5 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
OD1238-48HBIP68FAN AXIAL 120X38MM 48VDC WIRE |
3,644 | 39.78 |
|
Datasheet |
OD1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | Tubeaxial | Auto Restart | 44.1dB(A) | 14 W | 2895 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.572 lb (259.45 g) |
|
4312MFAN AXIAL 119X32MM 12VDC WIRE |
2,836 | 42.63 |
|
Datasheet |
4300 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 82.4 CFM (2.31m³/min) | - | Ball | Tubeaxial | - | 39.0dB(A) | 2.6 W | 2300 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.485 lb (219.99 g) |
|
9WF0924S201FAN AXIAL 92X32MM 24VDC WIRE |
3,027 | 28.13 |
|
Datasheet |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 98.9 CFM (2.78m³/min) | 1.020 in H2O (255.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 58.0dB(A) | 12 W | 7300 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.408 lb (185.07 g) |
|

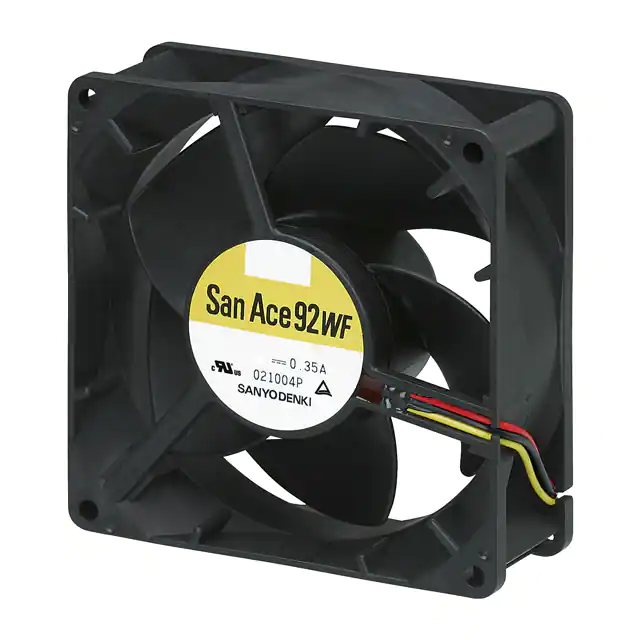

9WF0924H201FAN AXIAL 92X32MM 24VDC WIRE |
3,394 | 29.32 |
|
Datasheet |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 86.5 CFM (2.42m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 56.0dB(A) | 8.4 W | 6500 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.408 lb (185.07 g) |
|
19030599AFAN AXIAL 120X32MM 24VDC MC24B7 |
4,435 | 41.27 |
|
Datasheet |
Muffin | Box | Active | 24VDC | Square - 120mm L x 120mm H | 32.00mm | 102.0 CFM (2.86m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 47.8dB(A) | 5.5 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 0.529 lb (239.95 g) |
|
624/2HHFAN AXIAL 60X25.4MM 24VDC WIRE |
4,375 | 41.51 |
|
Datasheet |
620 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 3.6 W | 8200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.187 lb (84.82 g) |
|
|
4314LFAN AXIAL 119X32MM 24VDC WIRE |
2,748 | 42.63 |
|
Datasheet |
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 56.0 CFM (1.57m³/min) | - | Ball | Tubeaxial | - | 30.0dB(A) | 1.2 W | 1550 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.485 lb (219.99 g) |
|
9G1212E1D011FAN AXIAL 119X38MM 12VDC WIRE |
3,656 | 23.60 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.0dB(A) | 7.32 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
9G1224G1D011FAN AXIAL 120X38MM 24VDC WIRE |
4,195 | 20.73 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 49.0dB(A) | 12 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
OD1238-48HHBVXE10AFAN 48VDC 120X38MM PWM/TACH |
2,743 | 0.00 |
|
Datasheet |
OD1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 258.8 CFM (7.27m³/min) | 1.900 in H2O (473.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 62.3dB(A) | 56.4 W | 5475 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
