DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G1224H1011FAN AXIAL 119X38MM 24VDC WIRE |
2,932 | 22.83 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 5.28 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
OD1238-48HHBFAN AXIAL 120X38MM 48VDC WIRE |
1,023 | 23.06 |
|
Datasheet |
OD1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 135.8 CFM (3.80m³/min) | 0.558 in H2O (139.0 Pa) | Ball | Tubeaxial | Auto Restart | 48.2dB(A) | 15 W | 3195 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
9GA0812P2H001FAN AXIAL 80X32MM 12VDC WIRE |
1,035 | 30.34 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 77.7 CFM (2.18m³/min) | 1.180 in H2O (294.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 7.08 W | 8700 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
8414NLFAN AXIAL 80X25.4MM 24VDC WIRE |
1,453 | 35.51 |
|
Datasheet |
8400N | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 19.4 CFM (0.543m³/min) | - | Ball | Tubeaxial | - | 17.0dB(A) | 700 mW | 1500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
OD1238-60HBFAN AXIAL 120X38MM 60VDC WIRE |
4,769 | 32.32 |
|
Datasheet |
OD1238 | Box | Active | 60VDC | Square - 120mm L x 120mm H | 38.00mm | 115.0 CFM (3.22m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | - | 41.0dB | 14.4 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9GA0824A2001FAN AXIAL 80X32MM 24VDC WIRE |
2,271 | 30.48 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 3.6 W | - | 3 Wire Leads | - | - | - | - |
|
PFB0924GHEFAN AXIAL 92X38MM 24VDC WIRE |
1,632 | 30.83 |
|
Datasheet |
PFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 129.3 CFM (3.62m³/min) | 1.015 in H2O (252.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 60.5dB(A) | 15.12 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|

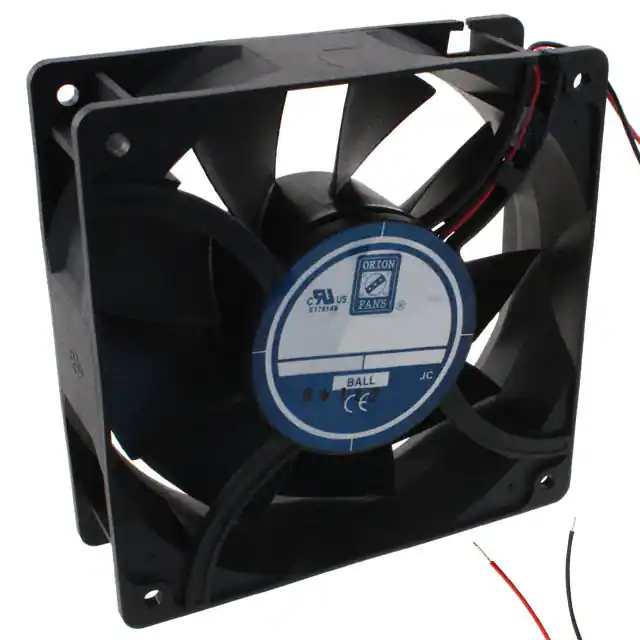

OD1238-12HBXCFAN AXIAL 120X38.5MM 12VDC WIRE |
2,585 | 30.35 |
|
Datasheet |
OD1238 XC | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.50mm | 200.0 CFM (5.60m³/min) | 0.640 in H2O (159.4 Pa) | Ball | Tubeaxial | Auto Restart | 61.0dB | 23 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
8412NFAN AXIAL 80X25.4MM 12VDC WIRE |
1,722 | 35.51 |
|
Datasheet |
8400N | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 40.6 CFM (1.14m³/min) | - | Ball | Tubeaxial | - | 32.0dB(A) | 2 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
3312NHFAN AXIAL 92X32MM 12VDC WIRE |
3,353 | 50.45 |
|
Datasheet |
3300N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 54.0 CFM (1.51m³/min) | - | Ball | Tubeaxial | - | 38.0dB(A) | 2.8 W | 3050 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | UL | 0.419 lb (190.06 g) |
|
9G1248E1021FAN AXIAL 119X38MM 48VDC WIRE |
4,324 | 24.85 |
|
Datasheet |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | - | 46.0dB(A) | 8.16 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
622LFAN AXIAL 60X25.4MM 12VDC WIRE |
3,647 | 37.51 |
|
Datasheet |
620 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 12.4 CFM (0.347m³/min) | - | Ball | Tubeaxial | - | 20.0dB(A) | 500 mW | 3200 RPM | 2 Wire Leads | - | -4 ~ 185°F (-20 ~ 85°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
9GA0912P1H031FAN AXIAL 92X38MM 12VDC WIRE |
3,362 | 24.94 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 141.2 CFM (3.95m³/min) | 2.010 in H2O (500.7 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 25.2 W | 9700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
CFM-A238BF-280-680-20FAN AXIAL 120X38MM 24VDC WIRE |
3,317 | 35.39 |
|
Datasheet |
CFM-120 BF | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 263.3 CFM (7.37m³/min) | 2.160 in H2O (540.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 68.1dB(A) | 70.56 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
_Series.jpg)
|
3414NMFAN AXIAL 92X25.4MM 24VDC WIRE |
1,378 | 37.51 |
|
Datasheet |
3400N | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 42.4 CFM (1.19m³/min) | - | Ball | Tubeaxial | - | 28.0dB(A) | 1.8 W | 2300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
|
4314-180FAN AXIAL 119X32MM 24VDC WIRE |
3,027 | 44.56 |
|
Datasheet |
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 120.1 CFM (3.36m³/min) | - | Ball | Tubeaxial | - | 51.0dB(A) | 9.5 W | 3400 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, VDE | 0.49 lb (222.26 g) |
|

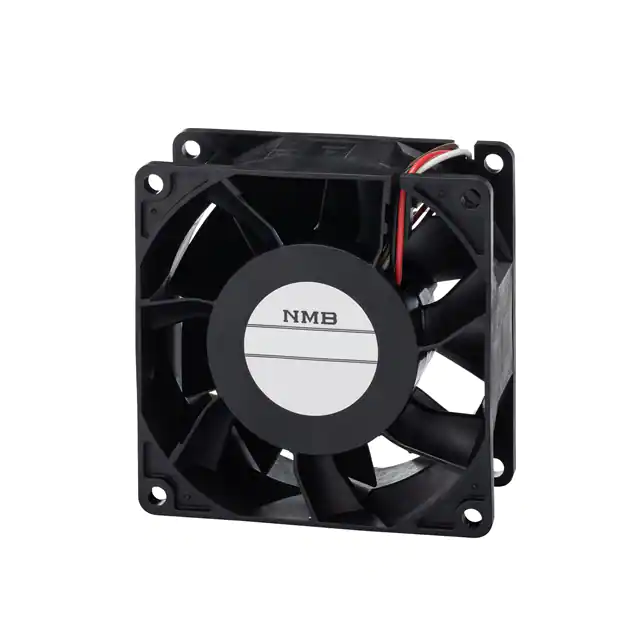

08038RE-24R-GT-00FAN AXIAL 80X38MM 24VDC WIRE |
2,739 | 34.16 |
|
Datasheet |
08038RE | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 1.430 in H2O (356.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 59.5dB(A) | 20.88 W | 7500 RPM | 3 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cULus, VDE | - |
(8020BF)(8038BF).jpg)
|
CFM-8038BF-2150-662-22FAN AXIAL 80X38MM 24VDC WIRE |
1,224 | 35.71 |
|
Datasheet |
CFM-80BF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 114.3 CFM (3.20m³/min) | 3.640 in H2O (906.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 66.3dB(A) | 35.04 W | 15000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
3412NHHFAN AXIAL 92X25.4MM 12VDC WIRE |
4,555 | 37.51 |
|
Datasheet |
3400N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 60.0 CFM (1.68m³/min) | - | Ball | Tubeaxial | - | 39.0dB(A) | 2.9 W | 3250 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
|
|
CFM-9238BF68-280-585-22DC AXIAL FAN, 92 MM SQUARE, 38 M |
4,996 | 0.00 |
|
Datasheet |
CFM-92BF68 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 108.9 CFM (3.05m³/min) | 1.640 in H2O (408.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 58.5dB(A) | 16.8 W | 8000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
