DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8312FAN AXIAL 80X32MM 12VDC WIRE |
1,228 | 42.69 |
|
Datasheet |
8300 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 31.8 CFM (0.890m³/min) | - | Ball | Tubeaxial | - | 36.0dB(A) | 2.2 W | 3300 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
9BMB24S201FAN BLOWER 97.1X33MM 24VDC WIRE |
1,823 | 27.45 |
|
Datasheet |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 43.1 CFM (1.21m³/min) | 2.450 in H2O (610.0 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 59.0dB(A) | 16.8 W | 5250 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
|
9BMB12F201FAN BLOWER 97.1X33MM 12VDC WIRE |
2,603 | 27.45 |
|
Datasheet |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 36.7 CFM (1.03m³/min) | 1.647 in H2O (410.0 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 56.0dB(A) | 10.8 W | 4500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
|
9RA1224G1001120X38MM 24VDC TACH |
1,531 | 0.00 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 141.0 CFM (3.95m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 8.4 W | 4200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

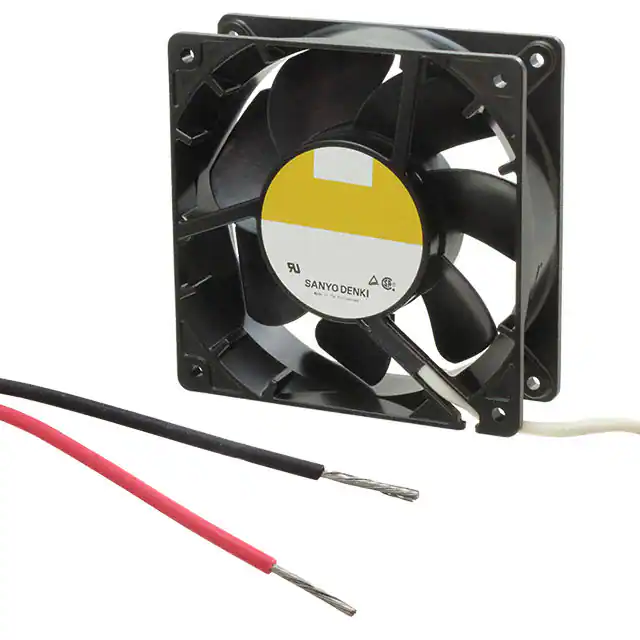

9WG1212G102-EFAN AXIAL 120X38MM 12VDC WIRE |
4,080 | 33.79 |
|
Datasheet |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 49.0dB(A) | 11.76 W | 3600 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
9WG1224G101-EFAN AXIAL 120X38MM 24VDC WIRE |
3,981 | 29.69 |
|
Datasheet |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 49.0dB(A) | 12 W | 3600 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|

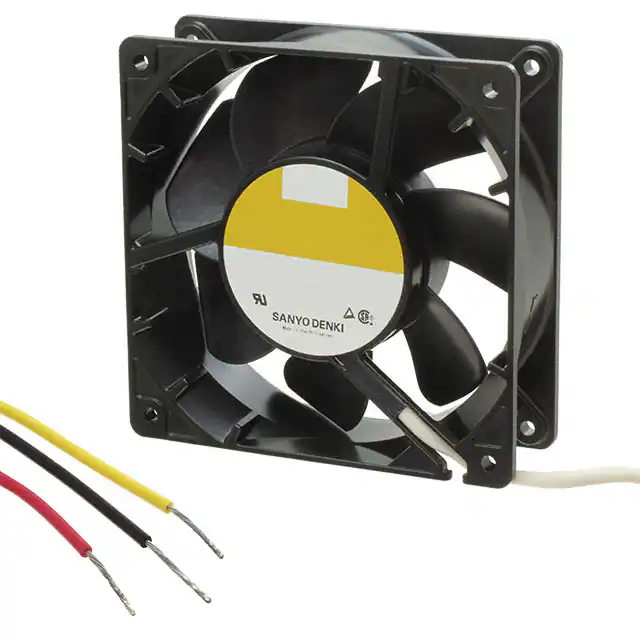

9WG1212G101-EFAN AXIAL 120X38MM 12VDC WIRE |
3,056 | 33.79 |
|
Datasheet |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 49.0dB(A) | 11.76 W | 3600 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
4312SFAN AXIAL 119X32MM 12VDC WIRE |
4,018 | 47.32 |
|
Datasheet |
4300 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 100.0 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 5 W | - | 3 Wire Leads | - | - | CE, CSA, UL, VDE | 0.5 lb (226.8 g) |
|
|
OD1238-24HHBVXE10AFAN 24VDC 120X38MM PWM/TACH |
1,346 | 0.00 |
|
Datasheet |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 258.8 CFM (7.27m³/min) | 1.900 in H2O (473.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 62.3dB(A) | 60 W | 5475 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
8412NGMLVFAN AXIAL 80X25.4MM 12VDC WIRE |
2,824 | 41.82 |
|
Datasheet |
8400NV | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 26.5 CFM (0.742m³/min) | - | Sintec | Tubeaxial | - | 19.0dB(A) | 1.5 W | 2050 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|

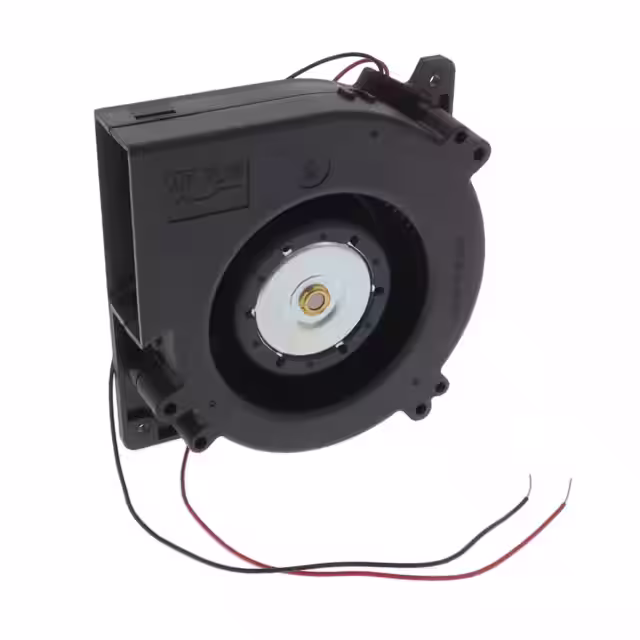

BFB1248VH-AFAN BLOWER 120X32MM 48VDC WIRE |
2,640 | 43.39 |
|
Datasheet |
BFB | Box | Active | 48VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 42.5 CFM (1.19m³/min) | 1.848 in H2O (460.3 Pa) | Ball | Blower | Locked Rotor Protection | 57.0dB(A) | 17.76 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.661 lb (299.82 g) |
|

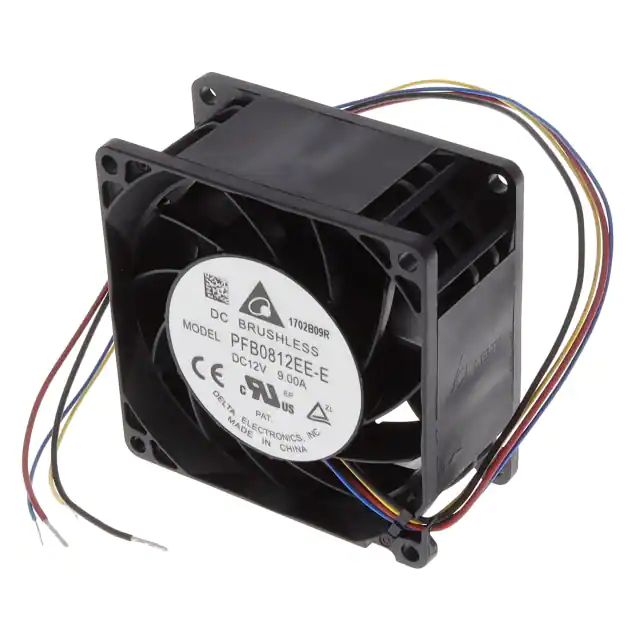

PFB0812EE-EFAN AXIAL 80X38MM 12VDC WIRE |
2,918 | 40.39 |
|
Datasheet |
PFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 129.6 CFM (3.63m³/min) | 6.010 in H2O (1497.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 48 W | 16800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9GV0912P1F03FAN AXIAL 92X38MM 12VDC WIRE |
4,481 | 26.44 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 146.6 CFM (4.10m³/min) | 1.050 in H2O (261.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 22.8 W | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.553 lb (250.84 g) |
|
|
9WP1248H102FAN AXIAL 120X38MM 48VDC WIRE |
1,010 | 44.60 |
|
Datasheet |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 5.28 W | 2600 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
3314NNFAN AXIAL 92X32MM 24VDC WIRE |
4,454 | 49.95 |
|
Datasheet |
3300N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 46.9 CFM (1.31m³/min) | - | Ball | Tubeaxial | - | 35.0dB(A) | 1.8 W | 2650 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.419 lb (190.06 g) |
|
|
9RA1212P1K0011120X38MM 12VDC RBLS TACH/PWM |
1,147 | 0.00 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 158.0 CFM (4.42m³/min) | 0.683 in H2O (170.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 11.5 W | 4700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

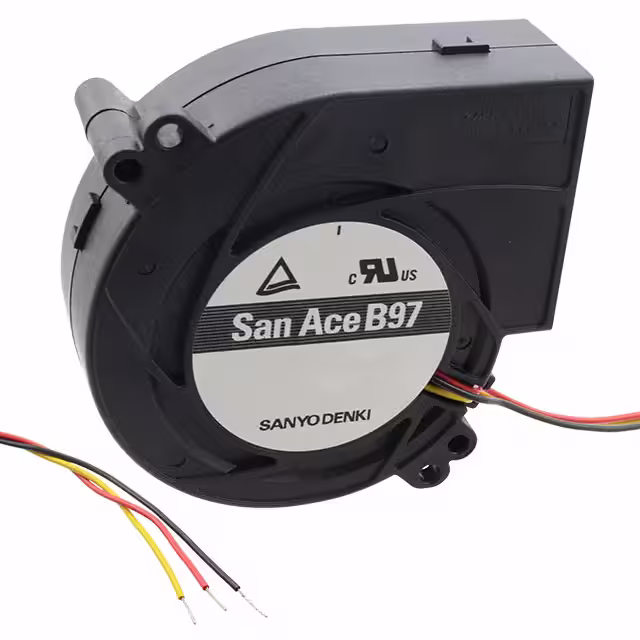

9BMB12K201FAN BLOWER 97.1X33MM 12VDC WIRE |
2,083 | 29.37 |
|
Datasheet |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 56.8 CFM (1.59m³/min) | 5.140 in H2O (1280.0 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 66.0dB(A) | 40.8 W | 6850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
BFB1224GH-TA50FAN BLOWER 120X32MM 24VDC WIRE |
1,797 | 44.56 |
|
Datasheet |
BFB | Bulk | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 60.4 CFM (1.69m³/min) | 4.094 in H2O (1019.8 Pa) | Ball | Blower | Locked Rotor Protection | 65.0dB(A) | 38.4 W | 4400 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.661 lb (299.82 g) |
|
17240JA-12M-YA-00FAN AXIAL 172X40MM 12VDC WIRE |
1,222 | 45.64 |
|
Datasheet |
17240JA | Bulk | Active | 12VDC | Square - 172mm L x 172mm H | 40.00mm | 128.2 CFM (3.59m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart | 33.5dB | 1.92 W | 1550 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.717 lb (325.22 g) |
|
4314NHHFAN AXIAL 119X32MM 24VDC WIRE |
1,894 | 51.32 |
|
Datasheet |
4300N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 116.5 CFM (3.26m³/min) | - | Ball | Tubeaxial | - | 49.0dB(A) | 6 W | 3600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.507 lb (229.97 g) |
