DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9RA0812P4G001FAN AXIAL 80X25MM 12VDC WIRE |
1,748 | 19.87 |
|
Datasheet |
San Ace 80 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 49.4 CFM (1.38m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 2.64 W | 5000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9GA0812P4G0011FAN AXIAL 80X25MM 12VDC WIRE |
3,489 | 16.86 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 67.4 CFM (1.89m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 45.0dB(A) | 5.76 W | 6800 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9RA0812P4G0011FAN AXIAL 80X25MM 12VDC WIRE |
2,355 | 19.87 |
|
Datasheet |
San Ace 80 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 49.4 CFM (1.38m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 2.64 W | 5000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9G0948G101FAN AXIAL 92X38MM 48VDC WIRE |
1,650 | 21.02 |
|
Datasheet |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 110.0 CFM (3.08m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 50.0dB(A) | 12.96 W | 5000 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.397 lb (180.08 g) |
|

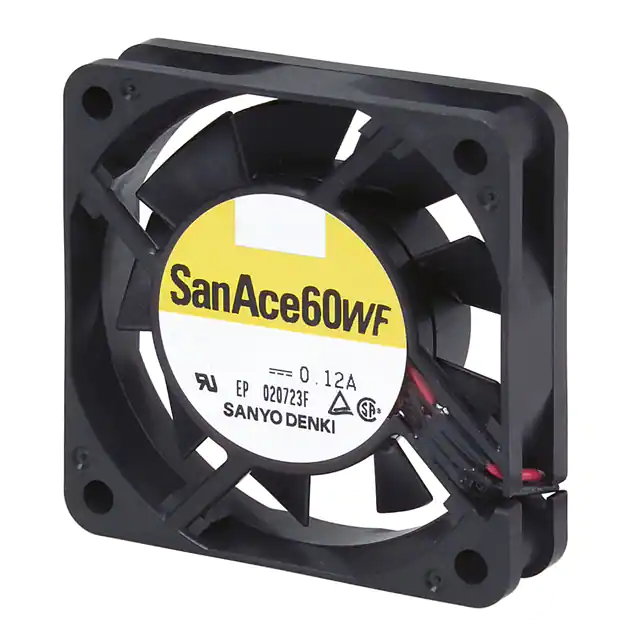

9WF0624H7D01FAN AXIAL 60X15MM 24VDC WIRE |
2,823 | 18.80 |
|
Datasheet |
San Ace 60WF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 18.3 CFM (0.512m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 44.0dB(A) | 2.88 W | 6800 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.137 lb (62.14 g) |
|

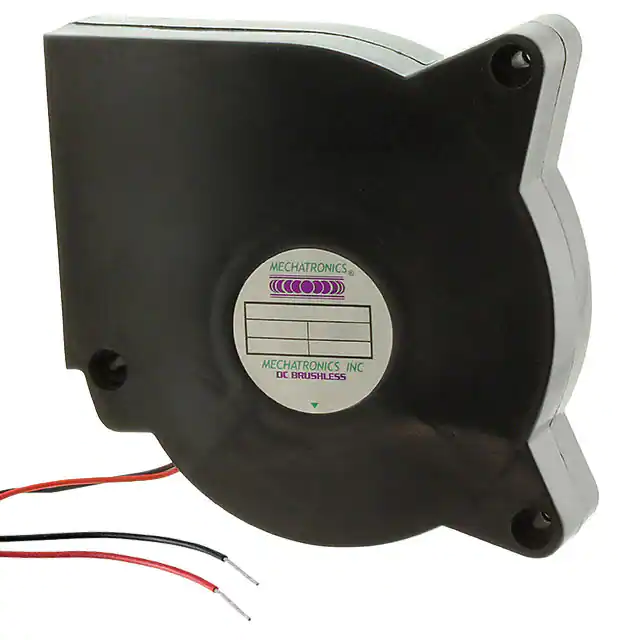

B1232H24B-BSR-E-CC-IM4FAN BLOWER 120X32MM 24VDC WIRE |
3,405 | 21.34 |
|
Datasheet |
B1232 | Bulk | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 28.0 CFM (0.784m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Blower | Conformal Coating, Thermal Overload Protector (TOP) | 49.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.706 lb (320.24 g) |
|
AFB1212HHE-R00FAN AXIAL 120X38MM 12VDC WIRE |
2,495 | 21.25 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 44.0dB(A) | 5.52 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
605FFAN AXIAL 60X15MM 5VDC WIRE |
1,116 | 23.34 |
|
Datasheet |
600F | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 15.00mm | 17.1 CFM (0.479m³/min) | - | Sintec | Tubeaxial | Locked Rotor Protection | 27.0dB(A) | 1.1 W | 4000 RPM | 2 Wire Leads | - | -4 ~ 122°F (-20 ~ 50°C) | CE, CSA, UL, VDE | - |
|
|
MS1225H12B-FHR-2EMFAN AXIAL 120X25MM 12VDC WIRE |
1,882 | 19.07 |
|
Datasheet |
MS1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 86.0 CFM (2.41m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart | 41.0dB(A) | - | 2600 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.267 lb (121.11 g) |
|

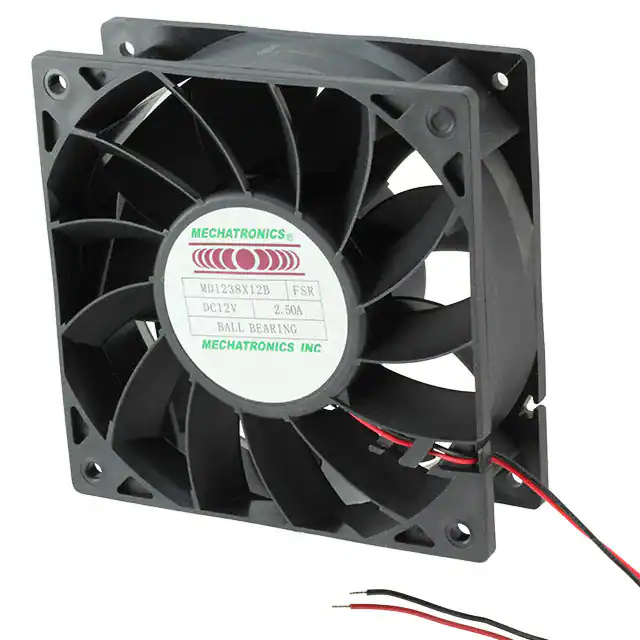

MD1238X12B-FSRFAN AXIAL 120X38MM 12VDC WIRE |
1,982 | 22.43 |
|
Datasheet |
MD1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 205.0 CFM (5.74m³/min) | 0.943 in H2O (234.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 62.0dB(A) | - | 4500 RPM | 2 Wire Leads | - | - | cUL, UL | 0.906 lb (410.95 g) |
|
MR1238M48B-FSRFAN AXIAL 120X38MM 48VDC WIRE |
4,148 | 22.62 |
|
Datasheet |
MR1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 210.0 CFM (5.88m³/min) | 0.850 in H2O (211.7 Pa) | Ball | Tubeaxial | Auto Restart | 61.7dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|
|
9G0948S2011FAN AXIAL 92X32MM 48VDC WIRE |
2,021 | 18.64 |
|
Datasheet |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 32.00mm | 70.6 CFM (1.98m³/min) | 0.309 in H2O (77.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 38.0dB(A) | 5.28 W | 3500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
AFB1224HHE-F00FAN AXIAL 120X38MM 24VDC WIRE |
2,325 | 22.11 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 7.2 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
9G1224G1D01FAN AXIAL 119X38MM 24VDC WIRE |
1,229 | 23.60 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 49.0dB(A) | 12 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
8412NGLEFAN AXIAL 80X25.4MM 12VDC WIRE |
3,985 | 24.70 |
|
Datasheet |
8400N | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 19.4 CFM (0.543m³/min) | - | Sintec | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 500 mW | 1500 RPM | 2 Wire Leads | - | -4 ~ 185°F (-20 ~ 85°C) | CE, CSA, UL, VDE | - |
|
|
MR1238H48B-FSRFAN AXIAL 120X38MM 48VDC WIRE |
1,864 | 22.62 |
|
Datasheet |
MR1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 235.0 CFM (6.58m³/min) | 1.075 in H2O (267.8 Pa) | Ball | Tubeaxial | Auto Restart | 64.6dB(A) | - | 4500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|
9WP0812H4011FAN AXIAL 80X25MM 12VDC WIRE |
1,400 | 21.99 |
|
Datasheet |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 36.3 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 29.0dB(A) | 1.56 W | 2900 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|

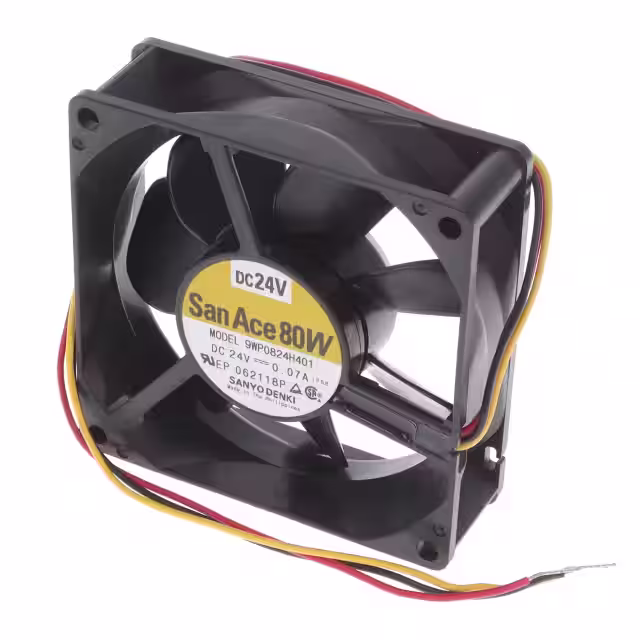

9WP0824H401FAN AXIAL 80X25MM 24VDC WIRE |
2,192 | 25.03 |
|
Datasheet |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.3 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 29.0dB(A) | 1.68 W | 2900 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|

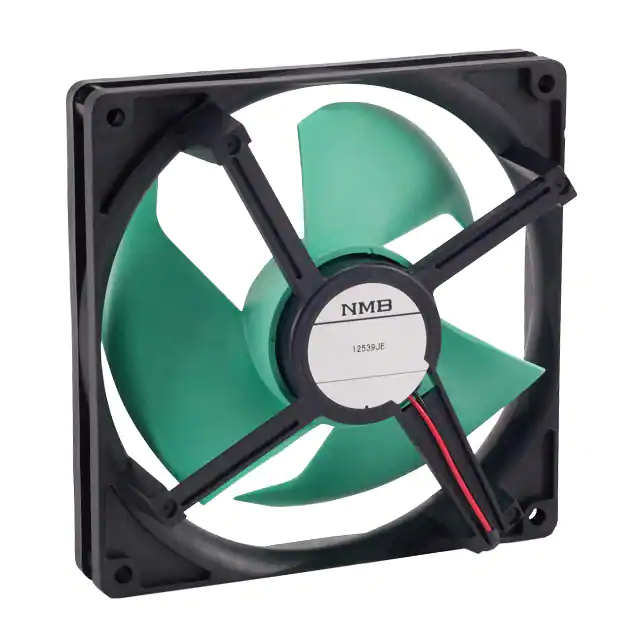

12539JE-12L-BA-F0FAN AXIAL 125.4X39MM 12VDC WIRE |
2,754 | 24.81 |
|
Datasheet |
12539JE | Box | Active | 12VDC | Square - 125.4mm L x 125.4mm H | 39.00mm | 75.0 CFM (2.10m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Auto Restart | 34.0dB | 2.88 W | 2300 RPM | 2 Wire Leads | - | -40 ~ 104°F (-40 ~ 40°C) | - | - |
|

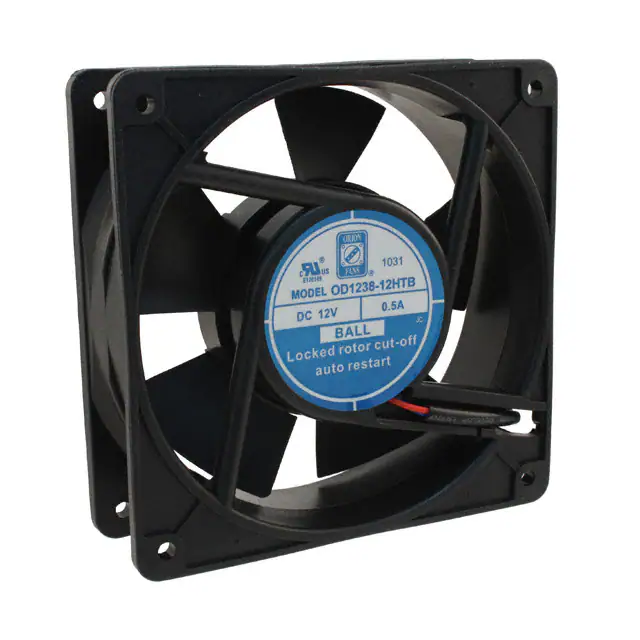

OD1238-12HTBFAN AXIAL 120X38.5MM 12VDC TERM |
3,944 | 24.90 |
|
Datasheet |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.50mm | 105.0 CFM (2.94m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | - | 43.0dB | 6 W | 2800 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
