DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G1212A4021FAN AXIAL 119X25MM 12VDC WIRE |
1,269 | 17.67 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 100.1 CFM (2.80m³/min) | 0.309 in H2O (77.0 Pa) | Ball | Tubeaxial | - | 44.0dB(A) | 4.8 W | 3150 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
9G1224M4021FAN AXIAL 119X25MM 24VDC WIRE |
1,480 | 19.75 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 59.0 CFM (1.65m³/min) | 0.124 in H2O (30.9 Pa) | Ball | Tubeaxial | - | 29.0dB(A) | 1.92 W | 1950 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
9G1212H4021FAN AXIAL 119X25MM 12VDC WIRE |
4,798 | 19.75 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 88.0 CFM (2.46m³/min) | 0.257 in H2O (64.0 Pa) | Ball | Tubeaxial | - | 40.0dB(A) | 3.72 W | 2850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
|
9G1224A4D01FAN AXIAL 119X25MM 24VDC WIRE |
4,095 | 16.58 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 100.0 CFM (2.80m³/min) | 0.309 in H2O (77.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 44.0dB(A) | 5.04 W | 3150 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
OD1238-12HBXEFAN AXIAL 120X38MM 12VDC WIRE |
3,417 | 32.70 |
|
Datasheet |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 238.8 CFM (6.69m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Auto Restart | 62.1dB(A) | 46 W | 5175 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
9G1224H4D011FAN AXIAL 119X25MM 24VDC WIRE |
4,851 | 20.05 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 88.0 CFM (2.46m³/min) | 0.257 in H2O (64.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB(A) | 4.08 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
OD8032-48HBIP69KFAN AXIAL 80X32MM 48VDC WIRE |
4,539 | 29.83 |
|
Datasheet |
OD8032-IP69K | Box | Active | 48VDC | Square - 80mm L x 80mm H | 32.00mm | 77.0 CFM (2.16m³/min) | 0.730 in H2O (181.8 Pa) | Ball | Tubeaxial | Auto Restart | 50.0dB(A) | 7.8 W | 6000 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
MS9238H48B-FHR-2EMFAN AXIAL 92X38MM 48VDC WIRE |
2,797 | 23.69 |
|
Datasheet |
MS9238-H | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 166.7 CFM (4.67m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | Auto Restart | 65.0dB(A) | - | 8000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.446 lb (202.3 g) |
|
ODB9733-24HHBFAN BLOWER 97.2X33MM 24VDC WIRE |
3,438 | 24.64 |
|
Datasheet |
ODB9733 | Bulk | Active | 24VDC | Rectangular/Rounded - 97.2mm L x 94.3mm H | 33.00mm | 38.4 CFM (1.08m³/min) | 1.900 in H2O (473.3 Pa) | Ball | Blower | Auto Restart | 59.3dB(A) | 17 W | 4190 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | - |
|

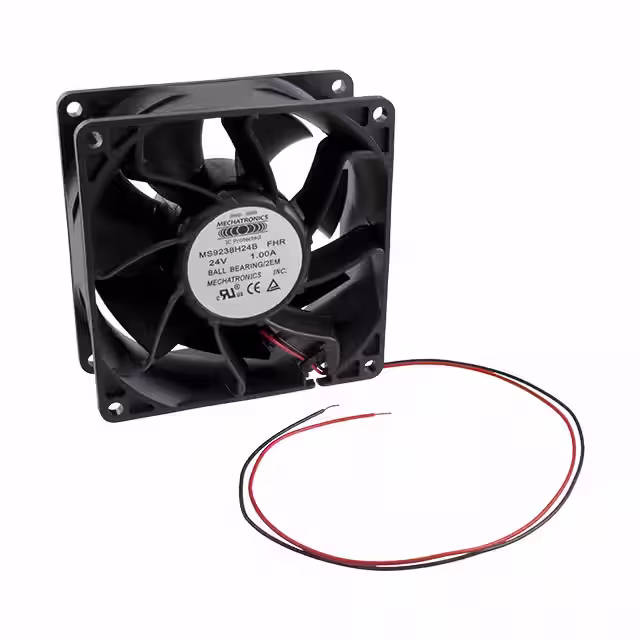

MS9238H24B-FHR-2EMFAN AXIAL 92X38MM 24VDC WIRE |
1,371 | 24.43 |
|
Datasheet |
MS9238-H | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 166.7 CFM (4.67m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | Auto Restart | 65.0dB(A) | - | 8000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.446 lb (202.3 g) |
|
|
9HV3612P3K001FAN AXIAL 36X28MM 12VDC WIRE |
1,399 | 23.74 |
|
Datasheet |
San Ace 36 | Bulk | Active | 12VDC | Square - 36mm L x 36mm H | 28.00mm | 25.4 CFM (0.711m³/min) | 5.620 in H2O (1400.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 67.0dB(A) | 21 W | 32500 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | - | 0.117 lb (53.07 g) |
|
|
9G1224G4D01FAN AXIAL 119X25MM 24VDC WIRE |
4,189 | 23.60 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 130.0 CFM (3.64m³/min) | 0.482 in H2O (120.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 51.0dB(A) | 11.28 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
|
CFM-9225BG68-150-502-22DC AXIAL FAN, 92 MM SQUARE, 25 M |
3,325 | 0.00 |
|
Datasheet |
CFM-92BG68 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 88.1 CFM (2.47m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 50.2dB(A) | 7.92 W | 5000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

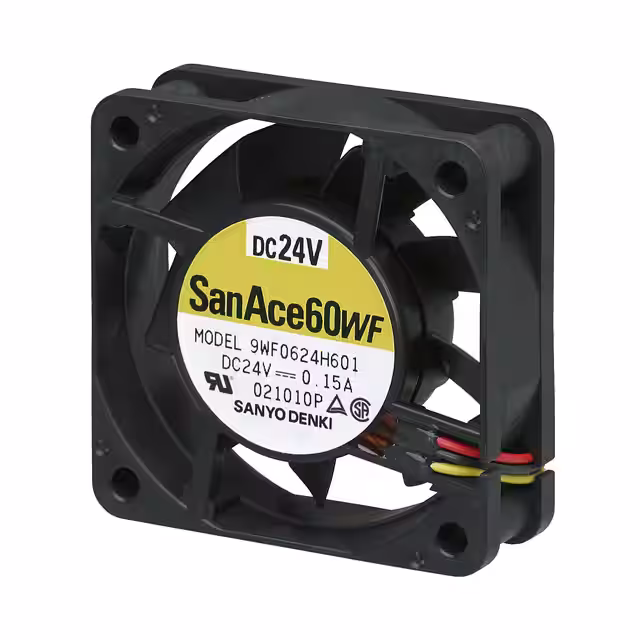

9WF0624H601FAN AXIAL 60X20MM 24VDC WIRE |
2,601 | 0.00 |
|
Datasheet |
San Ace 60WF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 24.3 CFM (0.680m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 42.0dB(A) | 3.6 W | 6600 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.177 lb (80.29 g) |
|

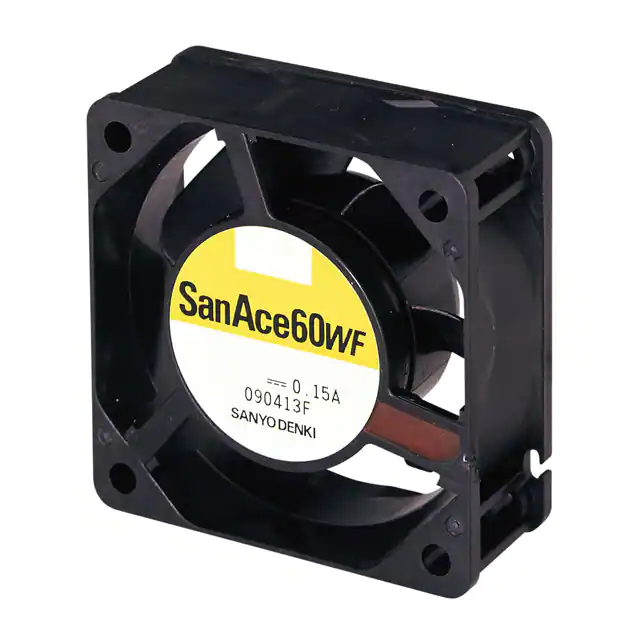

9WF0624H401FAN AXIAL 60X25MM 24VDC WIRE |
1,366 | 22.87 |
|
Datasheet |
San Ace 60WF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.6 CFM (0.661m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 41.0dB(A) | 3.6 W | 6500 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
OD1232-24LBFAN AXIAL 120X32MM 24VDC WIRE |
2,773 | 22.45 |
|
Datasheet |
OD1232 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 32.00mm | 93.0 CFM (2.60m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | - | 44.0dB | - | 2900 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
CFM-8038BF-1150-662FAN AXIAL 80X38MM 12VDC WIRE |
1,687 | 28.52 |
|
Datasheet |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 114.3 CFM (3.20m³/min) | 3.640 in H2O (906.7 Pa) | Ball | Tubeaxial | Auto Restart | 66.3dB(A) | 36.48 W | 15000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

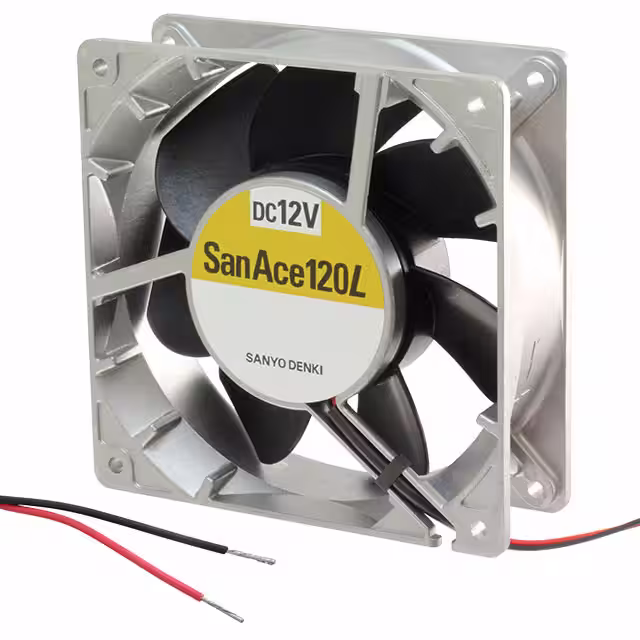

9GL1212G102FAN AXIAL 119X38MM 12VDC WIRE |
2,908 | 27.43 |
|
Datasheet |
San Ace 120L | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | - | 49.0dB(A) | 11.8 W | 3600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
9GL1224G102FAN AXIAL 119X38MM 24VDC WIRE |
1,826 | 27.43 |
|
Datasheet |
San Ace 120L | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | - | 49.0dB(A) | 12 W | 3600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
9RA0648P4J001FAN AXIAL 60X25MM 48VDC WIRE |
4,807 | 25.78 |
|
Datasheet |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 38.8 CFM (1.09m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 41.0dB(A) | 4.8 W | 7700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
