DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB1212GHE-CF00FAN AXIAL 120X38MM 12VDC WIRE |
426 | 36.12 |
|
Datasheet |
AFB | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 241.0 CFM (6.75m³/min) | 1.082 in H2O (269.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 62.0dB(A) | 29.4 W | 5200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
|
|
AFB1212SHE-CF00FAN AXIAL 120X38MM 12VDC WIRE |
200 | 36.12 |
|
Datasheet |
AFB | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 190.5 CFM (5.33m³/min) | 0.694 in H2O (173.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 55.5dB(A) | 15 W | 4100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
|

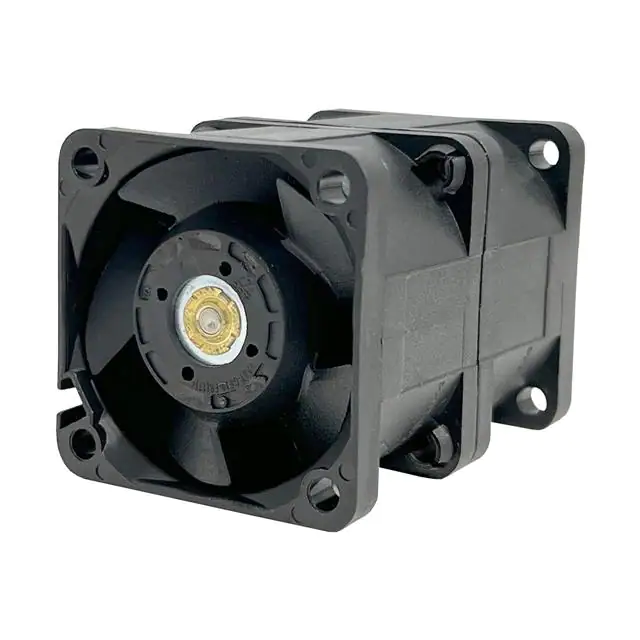

DS0405612V2B-BT0FAN AXIAL DUAL 40X56MM 12VDC |
181 | 46.56 |
|
Datasheet |
DS | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 37.6 CFM (1.05m³/min) | 9.561 in H2O (2381.5 Pa) | Ball | Tubeaxial (Dual) | PWM Control, Speed Sensor (Tach) | 82.5dB(A) | 43.2 W | 32000 Front, 30500 Rear | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
4392FAN AXIAL 119X32MM 12VDC TERM |
2,428 | 45.74 |
|
Datasheet |
4300 | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 100.0 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 5 W | - | 2 Terminals | - | - | CE, CSA, UL, VDE | 0.5 lb (226.8 g) |
|
|
FD1238B48W7-84-4JYDC Fan 120x120x38mm 48VDC |
130 | 0.00 |
|
Datasheet |
51 | Tape & Box (TB) | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 203.9 CFM (5.71m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 58.6dB(A) | 23.04 W | 4600 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cUL, TUV, UL | 0.827 lb (375.12 g) |
|
FFB1312SHEFAN AXIAL 127X38MM 12VDC WIRE |
354 | 41.20 |
|
Datasheet |
FFB | Tray | Obsolete | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 180.0 CFM (5.04m³/min) | 0.642 in H2O (159.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.5dB(A) | 22.2 W | 3450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
|
OD1238-12HBVXEXFAN AXIAL 120X38MM 12VDC WIRE |
196 | 0.00 |
|
Datasheet |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 235.5 CFM (6.59m³/min) | 1.600 in H2O (398.6 Pa) | Ball | Tubeaxial | Auto Restart | 60.6dB(A) | 46.3 W | 4925 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
XYW17251024BS-4172X51MM 24V BALL 4500RPM W/ALAR |
159 | 44.33 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9WPA0412P3G0011FAN AXIAL 40X28MM 12VDC WIRE |
118 | 48.68 |
|
Datasheet |
San Ace 40W | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 22.2 CFM (0.622m³/min) | 2.220 in H2O (553.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 6 W | 22200 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
11938MA-24N-EA-D0FAN AXIAL 119X38.4MM 24VDC WIRE |
306 | 52.30 |
|
Datasheet |
11938MA | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 162.1 CFM (4.59m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | Auto Restart | 56.5dB | 17.8 W | 4200 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
19031481AFAN AXIAL 80X32MM 48VDC ST48K0X |
105 | 65.61 |
|
Datasheet |
Sprint | Box | Active | 48VDC | Square - 80mm L x 80mm H | 32.00mm | 40.0 CFM (1.12m³/min) | 0.301 in H2O (75.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 44.2dB(A) | 5.3 W | 4250 RPM | 3 Wire Leads with Splice Terminals | - | - | CE, UL | - |
|
|
9WPA0412H30011FAN AXIAL 40X28MM 12VDC WIRE |
124 | 47.59 |
|
Datasheet |
San Ace 40W | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 18.3 CFM (0.512m³/min) | 1.510 in H2O (375.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 4.1 W | 18500 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0424P3G0011FAN AXIAL 40X28MM 24VDC WIRE |
122 | 48.68 |
|
Datasheet |
San Ace 40W | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 22.2 CFM (0.622m³/min) | 2.220 in H2O (553.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 6 W | 22200 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0612G420260X25MM 12VDC IP68 -40C |
4,728 | 0.00 |
|
Datasheet |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0624G420260X25MM 24VDC IP68 -40C |
1,080 | 0.00 |
|
Datasheet |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0612G420160X25MM 12VDC IP68 -40C TACH |
2,026 | 0.00 |
|
Datasheet |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0624G4D20160X25MM 24VDC IP68 -40C LCKRTRSN |
2,946 | 0.00 |
|
Datasheet |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0612G4D20160X25MM 12VDC IP68 -40C LCKRTRSN |
2,388 | 0.00 |
|
Datasheet |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0624G420160X25MM 24VDC IP68 -40C TACH |
1,336 | 0.00 |
|
Datasheet |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0624P4G201160X25MM 24VDC IP68 RBLS -40C TAC |
1,140 | 0.00 |
|
Datasheet |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | 2400 RPM, 8250 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | - |
