DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NYW08025012BSS-NAE-1280X25MM 4500RPM 12VDC W/PWM, 4 W |
398 | 0.00 |
|
- |
NYW08025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 59.5 CFM (1.67m³/min) | 0.346 in H2O (86.2 Pa) | Ball | Tubeaxial | - | 44.0dB(A) | 3.36 W | 4500 RPM | 2 Wire Leads | - | - | - | - |
|

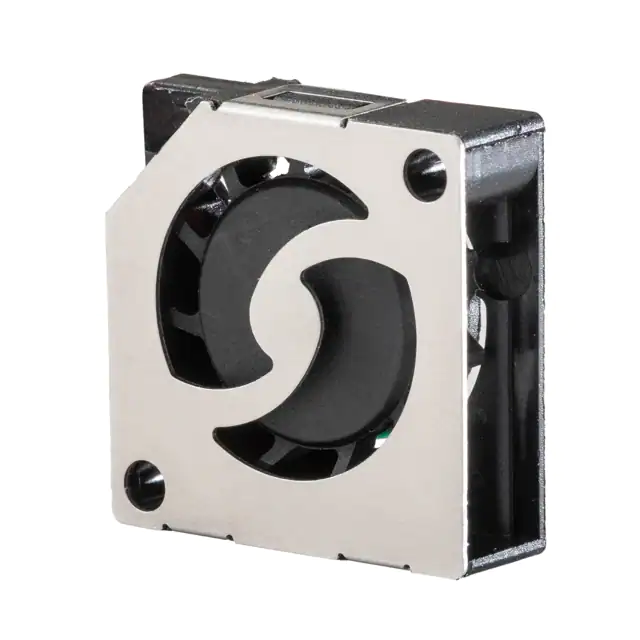

AGB154FAN MICR BLOWER 15X4MM 3VDC WIRE |
125 | 18.75 |
|
- |
Air-G | Box | Active | 3VDC | Square - 15mm L x 15mm H | 4.00mm | 0.190 CFM (0.005m³/min) | 0.097 in H2O (24.1 Pa) | Axial Groove | Micro Blower | Locked Rotor Protection, Auto Restart, Polarity Protection | 18.6dB(A) | - | 14500 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.003 lb (1.36 g) |
|
FFB0412SHN-AF00FAN AXIAL 40X28MM 12VDC WIRE |
281 | 11.92 |
|
Datasheet |
FFB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 23.1 CFM (0.647m³/min) | 1.066 in H2O (265.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 52.5dB(A) | 4.8 W | 13000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.078 lb (35.38 g) |
|
|
NYW06025012BH-5(M338)60X25 12V 4300RPM, 3 WIRES |
199 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
4715KL-04W-B40-E00FAN AXIAL 119X38.4MM 12VDC WIRE |
4,702 | 20.51 |
|
Datasheet |
11938KA | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 118.0 CFM (3.30m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | - | 46.5dB | 8.4 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
4715KL-05W-B40-E00FAN AXIAL 119X38.4MM 24VDC WIRE |
405 | 20.51 |
|
Datasheet |
11938KA | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 118.0 CFM (3.30m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | - | 46.5dB | 8.4 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
EYW12038048BH-EAH-12IP55FAN AXIAL 120X38MM 48VDC WIRE |
101 | 20.08 |
|
Datasheet |
EYW | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 238.8 CFM (6.76m³/min) | 1.630 in H2O (406.0 Pa) | Ball | Tubeaxial | PWM Control | 64.9dB(A) | 43.2 W | 6000 RPM | 3 Wire Leads | - | - | - | - |
|
BFB0724H-F00FAN BLOWER 75.7X30MM 24VDC WIRE |
635 | 19.75 |
|
Datasheet |
BFB | Bulk | Obsolete | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 11.3 CFM (0.316m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 2.88 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.211 lb (95.71 g) |
|
9G0812P1H03FAN AXIAL 80X38MM 12VDC WIRE |
2,737 | 18.91 |
|
Datasheet |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 80.0 CFM (2.24m³/min) | 0.687 in H2O (171.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 49.0dB(A) | 10.8 W | 5700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
4715KL-05W-B59-E00FAN AXIAL 119X38.4MM 24VDC WIRE |
1,702 | 21.09 |
|
Datasheet |
11938KA | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 130.0 CFM (3.64m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 50.0dB | 12 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 104°F (-10 ~ 40°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|

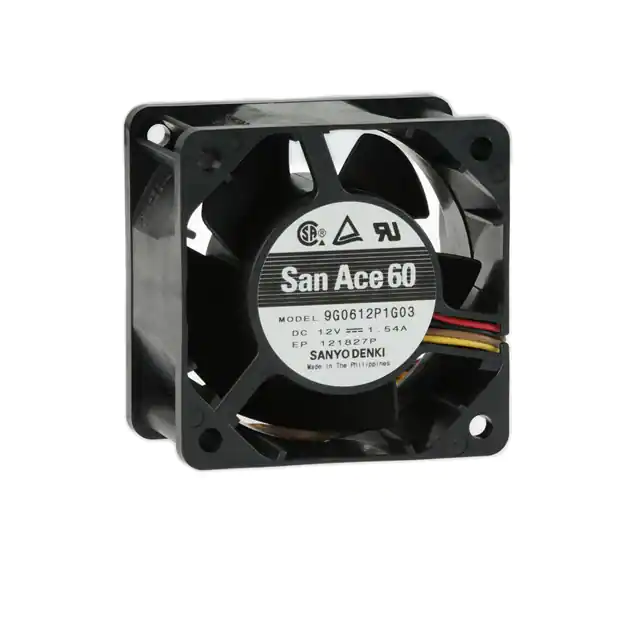

9G0612P1G03FAN AXIAL 60X38MM 12VDC WIRE |
248 | 18.66 |
|
Datasheet |
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | - | - | - | 4 Wire Leads | - | - | - | 0.243 lb (110.22 g) |
.U.GN.jpg)
|

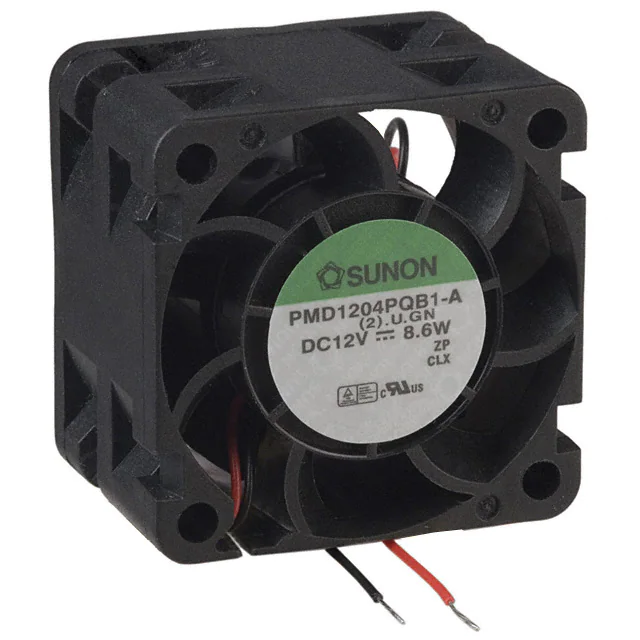

PMD1204PQB1-A.(2).U.GNFAN AXIAL 40X28MM 12VDC WIRE |
2,225 | 0.00 |
|
Datasheet |
PMD | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.0 CFM (0.672m³/min) | 1.340 in H2O (333.8 Pa) | Ball | Tubeaxial | - | 55.5dB(A) | 8.6 W | 15000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.101 lb (45.81 g) |
|
AFB0612VHE-AFAN AXIAL 60X38MM 12VDC WIRE |
519 | 20.65 |
|
Datasheet |
AFB | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 49.5 CFM (1.39m³/min) | 0.984 in H2O (245.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 8.16 W | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.258 lb (117.03 g) |
|
BG0903-B047-00S-00FAN BLOWER 97X33MM 12VDC WIRE |
254 | 21.37 |
|
Datasheet |
09533GA | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 33.00mm | 38.1 CFM (1.07m³/min) | 1.935 in H2O (482.0 Pa) | Ball | Blower | Speed Sensor (Tach) | - | 19.2 W | 5200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.463 lb (210.01 g) |
|
|
ASFN62391FAN AXIAL 60X25MM 12VDC WIRE |
3,722 | 20.57 |
|
- |
ASFN6 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 15.8 CFM (0.442m³/min) | 0.094 in H2O (23.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 22.5dB(A) | 1.2 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus | - |
|
BFB1024HHX01FAN BLOWER 97.2X33MM 24VDC WIRE |
631 | 23.18 |
|
Datasheet |
BFB | Box | Obsolete | 24VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 28.3 CFM (0.792m³/min) | 1.299 in H2O (323.6 Pa) | Ball | Blower | Locked Rotor Sensor | 55.0dB(A) | 13.2 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.353 lb (160.12 g) |
|

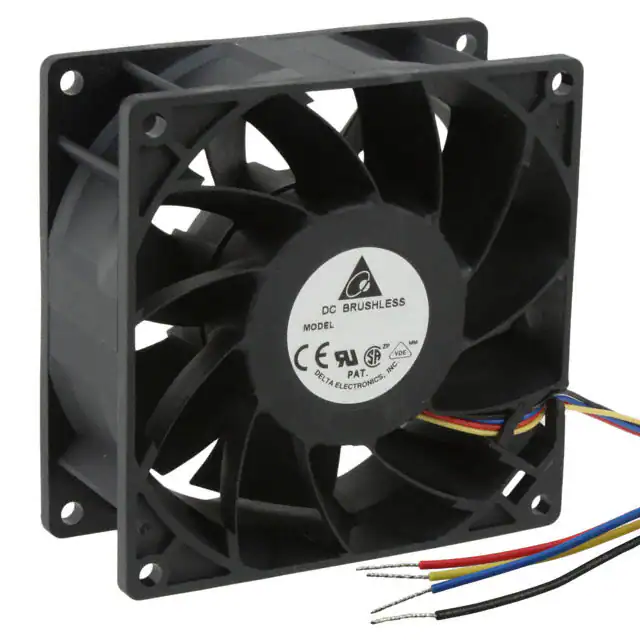

FFC0912DE-TP04FAN AXIAL 92X38MM 12VDC WIRE |
1,168 | 22.52 |
|
Datasheet |
FFC | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 110.2 CFM (3.09m³/min) | 0.665 in H2O (165.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 9.6 W | 4800 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
|
OD1225-12HBIP5521FAN AXIAL 120X25MM 12VDC CONN |
1,000 | 0.00 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
4712KL-07W-B49-P00FAN AXIAL 119X32MM 48VDC WIRE |
163 | 23.29 |
|
Datasheet |
4712KL | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 32.00mm | 112.0 CFM (3.14m³/min) | 0.329 in H2O (82.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 47.0dB | 10.1 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
|
G1238M12B1+6-FSR-WSFAN AXIAL 119X38MM 12VDC WIRE |
243 | 17.40 |
|
Datasheet |
G1238 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 125.0 CFM (3.50m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Alarm Sensor, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 43.0dB(A) | - | 2800 RPM | 5 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
