DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

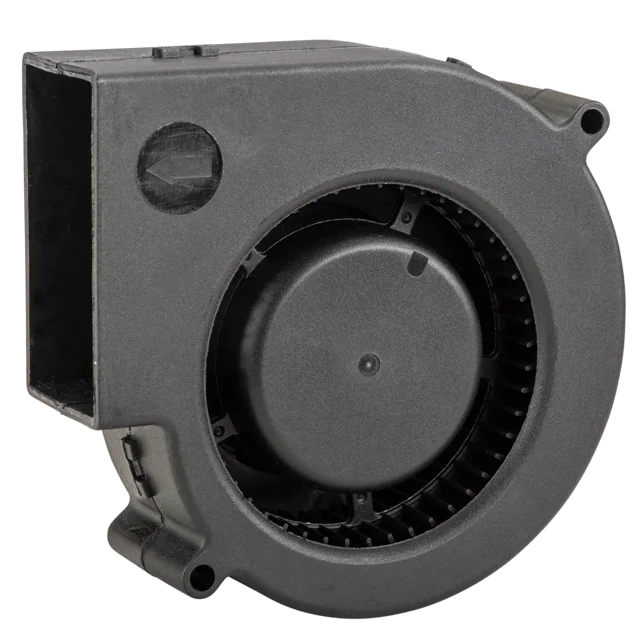

RBH9733BFAN BLOWER 97X33MM 12VDC WIRE |
968 | 14.88 |
|
Datasheet |
hiFLOW | Bulk | Active | 12VDC | Rectangular/Round - 97mm L x 94mm H | 33.00mm | 21.9 CFM (0.62m³/min) | 0.820 in H2O (204.2 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection | 50.0dB(A) | 9.6 W | 3300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | - |
|
AFB0824SH-F00FAN AXIAL 80X25.4MM 24VDC WIRE |
2,093 | 14.58 |
|
Datasheet |
AFB | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 46.6 CFM (1.30m³/min) | 0.267 in H2O (66.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 3.84 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
AFB0912LBFAN AXIAL 92X15MM 12VDC WIRE |
1,485 | 14.60 |
|
Datasheet |
AFB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 15.00mm | 26.1 CFM (0.731m³/min) | 0.045 in H2O (11.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 1.2 W | 1800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.154 lb (69.85 g) |
|
PF80381BX-000U-S99FAN AXIAL 80X38MM 12VDC WIRE |
230 | 33.44 |
|
Datasheet |
PF | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 141.9 CFM (3.97m³/min) | 3.200 in H2O (797.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 74.1dB(A) | 48 W | 14000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.43 lb (195.04 g) |
|
|
FBD7530B12W9-61-2RC1DC BLOWER 75X77X30mm 12V |
12,137 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | 12VDC | Rectangular/Rounded - 77mm L x 75.7mm H | 30.00mm | 12.5 CFM (0.350m³/min) | 0.524 in H2O (130.5 Pa) | Ball | Blower | - | 42.4dB(A) | 3.84 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
FD5010B12W7-71-2NDC Axial Fan 50x50x10mm 12VDC |
394 | 0.00 |
|
Datasheet |
71 | Tape & Box (TB) | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 11.2 CFM (0.314m³/min) | 0.106 in H2O (26.4 Pa) | Ball | Tubeaxial | - | 29.7dB(A) | 1.56 W | 5300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 0.036 lb (16.33 g) |
|
06020VA-24Q-CAS-060MM X 20MM, 24VDC, 24.6 CFM, RI |
120 | 15.62 |
|
Datasheet |
06020VA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 24.7 CFM (0.692m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Auto Restart | 42.0dB | 3.6 W | 6900 RPM | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
AFB0712VHB-F00FAN AXIAL 70X15MM 12VDC WIRE |
248 | 14.58 |
|
Datasheet |
AFB | Box | Obsolete | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 45.5 CFM (1.27m³/min) | 0.306 in H2O (76.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 4.44 W | 5200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.116 lb (52.62 g) |
|
AFB0624HDFAN AXIAL 60X20MM 24VDC WIRE |
132 | 10.02 |
|
Datasheet |
AFB | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 16.6 CFM (0.465m³/min) | 0.189 in H2O (47.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.2 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.137 lb (62.14 g) |
|
9GV0412J301FAN AXIAL 40X28MM 12VDC WIRE |
466 | 14.61 |
|
Datasheet |
San Ace 40 | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.0 CFM (0.672m³/min) | 1.325 in H2O (330.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 55.0dB(A) | 7.2 W | 14700 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|

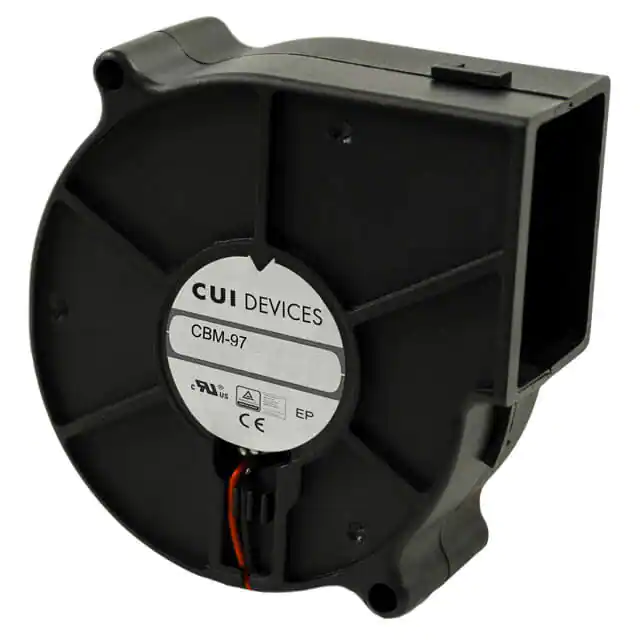

CBM-979533B-168FAN BLOWER 97X33MM 12VDC WIRE |
106 | 24.14 |
|
Datasheet |
CBM-97B | Tray | Obsolete | 12VDC | Rectangular/Rounded - 97mm L x 95mm H | 33.00mm | 54.7 CFM (1.53m³/min) | 5.220 in H2O (1300.3 Pa) | Ball | Blower | Auto Restart | 69.9dB(A) | 48.3 W | 6800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.406 lb (184.16 g) |
|

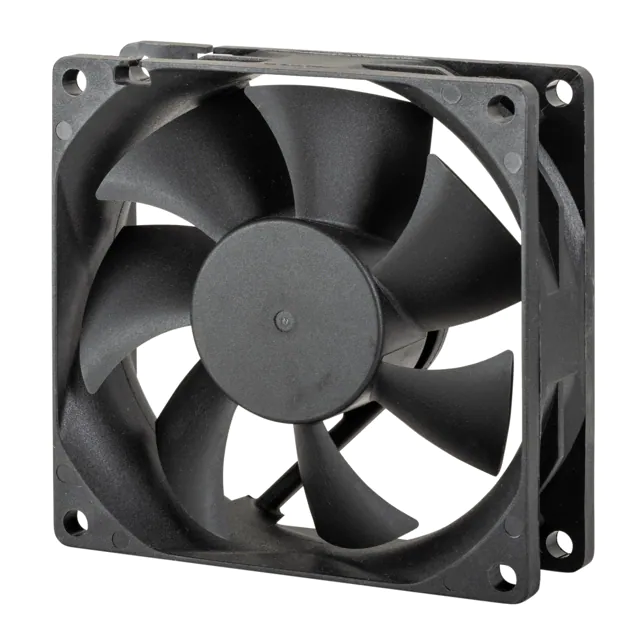

D8025L48BPLB1FAN AXIAL 80X25MM 48VDC WIRE |
104 | 15.30 |
|
Datasheet |
Intelligent Motion | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 28.8 CFM (0.82m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection | 23.8dB(A) | 1.44 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
BG0703-B044-00L-00FAN BLOWER 75.7X30MM 12VDC WIRE |
277 | 16.11 |
|
Datasheet |
07530GA | Bulk | Obsolete | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 10.6 CFM (0.297m³/min) | 0.441 in H2O (110.0 Pa) | Ball | Blower | Locked Rotor Sensor | 38.5dB | 3.48 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.198 lb (89.81 g) |
|
9GA0424P3J035FAN AXIAL 40X28MM 24VDC WIRE |
126 | 0.00 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AFB0624VHD-AR00FAN AXIAL 60X20MM 24VDC WIRE |
2,076 | 15.32 |
|
Datasheet |
AFB | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 29.1 CFM (0.815m³/min) | 0.278 in H2O (69.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 41.0dB(A) | 2.4 W | 5400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.124 lb (56.25 g) |
|
AFB0912HHB-F00FAN AXIAL 92X15MM 12VDC WIRE |
600 | 15.32 |
|
Datasheet |
AFB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 15.00mm | 51.3 CFM (1.44m³/min) | 0.156 in H2O (38.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.5dB(A) | 3.72 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.154 lb (69.85 g) |
|
PF40281B1-000U-G99FAN AXIAL 40X28MM 12VDC WIRE |
324 | 16.74 |
|
Datasheet |
PF | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.9 CFM (0.697m³/min) | 1.950 in H2O (485.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 56.0dB(A) | 6.12 W | 17600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.093 lb (42.18 g) |
|
|
XYW12038024BSS-R-NAC-6FAN AXIAL 120X38MM 24VDC WIRE |
389 | 0.00 |
|
Datasheet |
XYW | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 142.0 CFM (4.02m³/min) | 0.787 in H2O (196.0 Pa) | Ball | Tubeaxial | Auto Restart | 58.5dB(A) | 12.48 W | 4500 RPM | 2 Wire Leads | - | - | - | - |
|

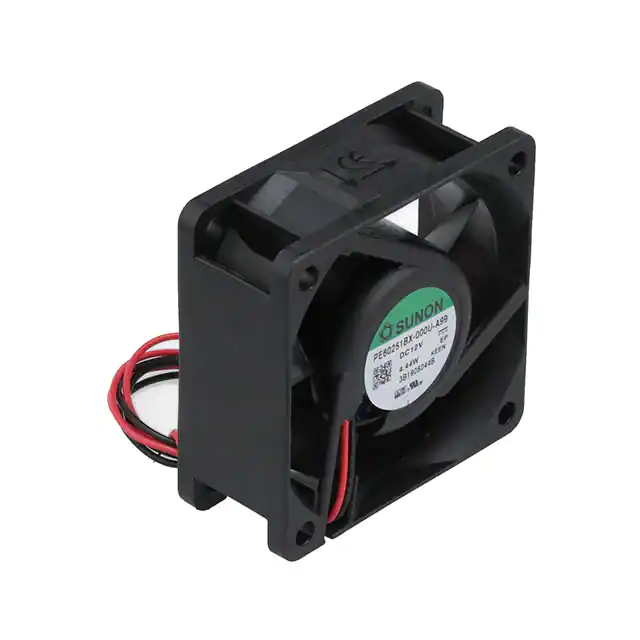

PE60251BX-000U-A99FAN AXIAL 60X25MM 12VDC WIRE |
814 | 13.45 |
|
Datasheet |
PE | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.640 in H2O (159.4 Pa) | Ball | Tubeaxial | Auto Restart | 46.0dB(A) | 4.44 W | 7600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.157 lb (71.21 g) |
|
3610VL-04W-B70-B00FAN AXIAL 92X25MM 12VDC WIRE |
959 | 17.17 |
|
Datasheet |
09225VA | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 96.4 CFM (2.70m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | - | 51.0dB(A) | 8.64 W | 5600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.298 lb (135.17 g) |
