DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4184N4184N |
4,501 | 0.00 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

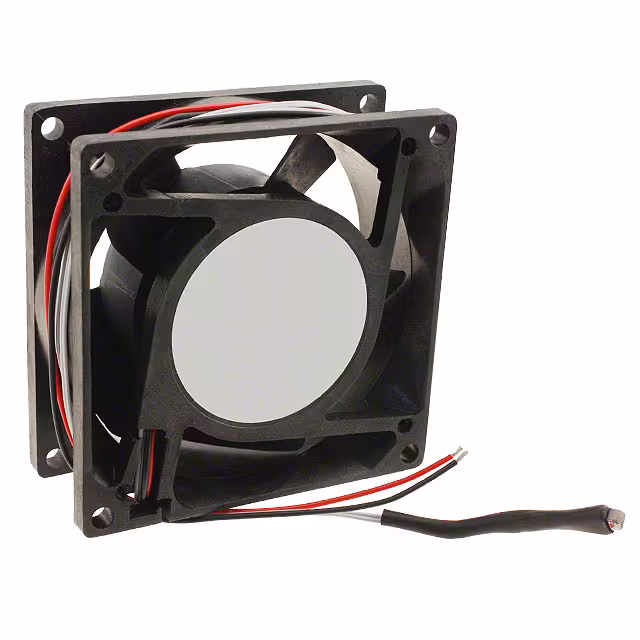

19032397AFAN AXIAL 80X32MM 24VDC ST24S3H |
3,824 | 57.68 |
|
Datasheet |
Sprint | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 34.0 CFM (0.952m³/min) | 0.325 in H2O (80.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Thermistor | 40.2dB(A) | 3.8 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 0.397 lb (180.08 g) |
|
|
9WPA0812G4D20180X25MM 12VDC IP68 -40C LCKRTRSN |
4,667 | 0.00 |
|
Datasheet |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.20mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0812G420180X25MM 12VDC IP68 -40C TACH |
4,053 | 0.00 |
|
Datasheet |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.20mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0824G420180X25MM 24VDC IP68 -40C TACH |
1,262 | 0.00 |
|
Datasheet |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.20mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0824G4D20180X25MM 24VDC IP68 -40C LCKRTRSN |
1,899 | 0.00 |
|
Datasheet |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.20mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | - |
|
|
17001221AFAN AXIAL 48VDC MSD48B3-E3 |
4,989 | 64.43 |
|
Datasheet |
Muffin XP | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.10mm | 110.0 CFM (3.08m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 49.1dB(A) | 7.2 W | 3000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
9WPA0812P4G201180X25MM 12VDC IP68 RBLS -40C TAC |
1,153 | 0.00 |
|
Datasheet |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.20mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0824H400280X25MM 24VDC IP68 HIGH PERF. |
3,657 | 0.00 |
|
Datasheet |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
12038MA-48R-EE-00FAN AXIAL 120X38MM 48VDC WIRE |
3,653 | 58.20 |
|
Datasheet |
12038MA | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 185.5 CFM (5.19m³/min) | 2.970 in H2O (740.0 Pa) | Ball | Tubeaxial | Auto Restart | 72.0dB | 39.36 W | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
4412FN/2HFAN AXIAL 119X25.4MM 12VDC WIRE |
4,831 | 92.69 |
|
- |
4400FN | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 25.40mm | 132.5 CFM (3.71m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 40.0dB(A) | 12 W | 5400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.529 lb (240.00 g) |
|
|
9LG0812F400180X25MM 12V, HIGH PERF LONG LIFE |
2,132 | 0.00 |
|
Datasheet |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 32.5 CFM (0.910m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 1.2 W | 3300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
17001172AFAN AXIAL 48VDC GLD48B3E2X-E3 |
101 | 92.43 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.10mm | 150.0 CFM (4.20m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.6dB(A) | 14.9 W | 3300 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|

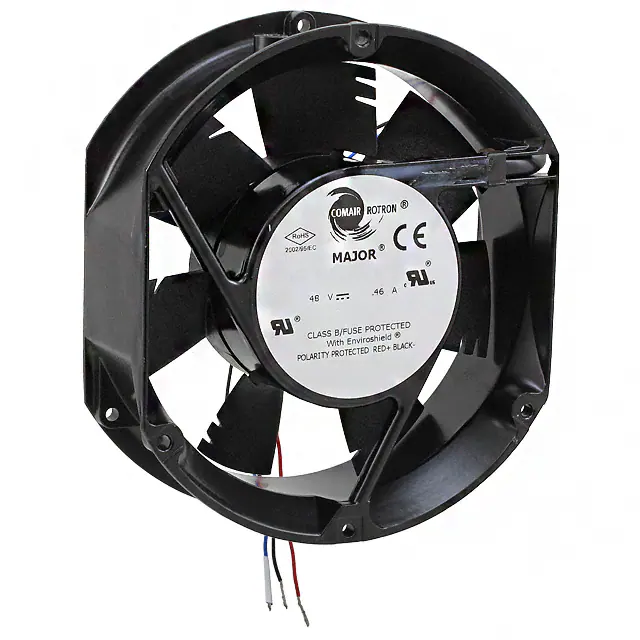

19041119AFAN AXIAL 171.4X50MM JQ48B7X-E2 |
528 | 82.22 |
|
Datasheet |
Major | Bulk | Active | 48VDC | Rectangular/Rounded - 171.4mm L x 150.4mm H | 50.80mm | 235.0 CFM (6.58m³/min) | 0.810 in H2O (201.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 54.3dB(A) | 20.1 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 1.8 lbs (816.5 g) |
|
|
9WL0624S400260X25MM 24V; SPLASH & DUST PROOF |
4,309 | 0.00 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
17001216AFAN AXIAL 12VDC SDD12B1-E3 |
2,314 | 76.57 |
|
Datasheet |
Sprite | Box | Active | 12VDC | Square - 79.8mm L x 79.8mm H | 41.80mm | 35.0 CFM (0.980m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 47.6dB(A) | 3 W | 3500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|

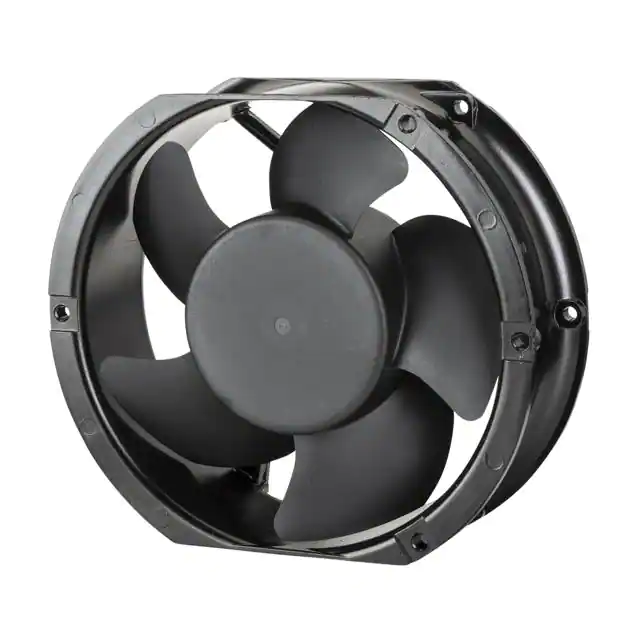

G1751Z24BALB1-5FAN AXIAL 172X51MM 24VDC WIRE |
131 | 66.40 |
|
Datasheet |
Intelligent Motion | Bulk | Active | 24VDC | Rectangular/Round - 172mm L x 150mm H | 51.00mm | 374.3 CFM (10.6m³/min) | 1.500 in H2O (373.6 Pa) | Ball | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, IP56, Locked Rotor Protection, Polarity Protection | 68.0dB(A) | 43.2 W | 5200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
W1G110-AG03-07FAN AXIAL 119X38MM 24VDC WIRE |
4,575 | 105.57 |
|
Datasheet |
W1G110 | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 138.0 CFM (3.86m³/min) | - | Ball | Tubeaxial | - | 58.0dB(A) | 11 W | - | 2 Wire Leads | - | - | - | - |
|
OD1238-12HHBIP68FAN AXIAL 119.5X38MM 12VDC WIRE |
2,590 | 23.84 |
|
Datasheet |
OD1238 | Box | Active | 12VDC | Square - 119.5mm L x 119.5mm H | 38.00mm | 136.0 CFM (3.81m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Auto Restart | 48.0dB | 8.4 W | 3200 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 0.572 lb (259.45 g) |
|
RER125-19/18NFAN IMP MTRZD 138X35MM 48VDC |
2,229 | 87.09 |
|
Datasheet |
RER125N | Bulk | Active | 48VDC | Round - 138mm Dia | 35.00mm | 64.7 CFM (1.81m³/min) | - | Ball | Motorized Impellers | - | 47.0dB(A) | 5 W | 2650 RPM | 2 Wire Leads | - | -22 ~ 167°F (-30 ~ 75°C) | - | 0.705 lb (319.78 g) |
