DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19039842AFAN IMP MTR 175X53MM DD692124K1A |
1,729 | 151.58 |
|
Datasheet |
Diplomat | Bulk | Active | 24VDC | Round - 175mm Dia | 53.00mm | 250.0 CFM (7.00m³/min) | 1.590 in H2O (396.1 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 67.2dB(A) | 30.7 W | 3250 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 2.5 lbs (1.1 kg) |
|

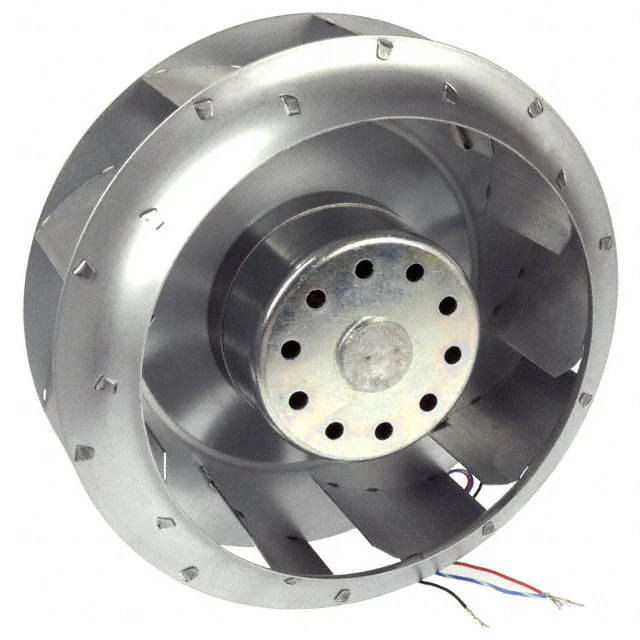

19039848AFAN IMP MTR 175X68MM DD692724B1A |
3,722 | 152.06 |
|
Datasheet |
Diplomat | Bulk | Active | 24VDC | Round - 175mm Dia | 68.58mm | 275.0 CFM (7.70m³/min) | 1.060 in H2O (264.0 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 65.0dB(A) | 30.5 W | 2850 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 2.5 lbs (1.1 kg) |
|
W1G115-AG03-05FAN AXL 127X38MM 24VDC RECT CONN |
3,220 | 142.84 |
|
Datasheet |
W1G115 | Bulk | Obsolete | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 160.0 CFM (4.48m³/min) | - | Ball | Tubeaxial | - | 52.0dB(A) | 10 W | 3950 RPM | 3 Position Rectangular Connector | IP22 | - | - | - |
|

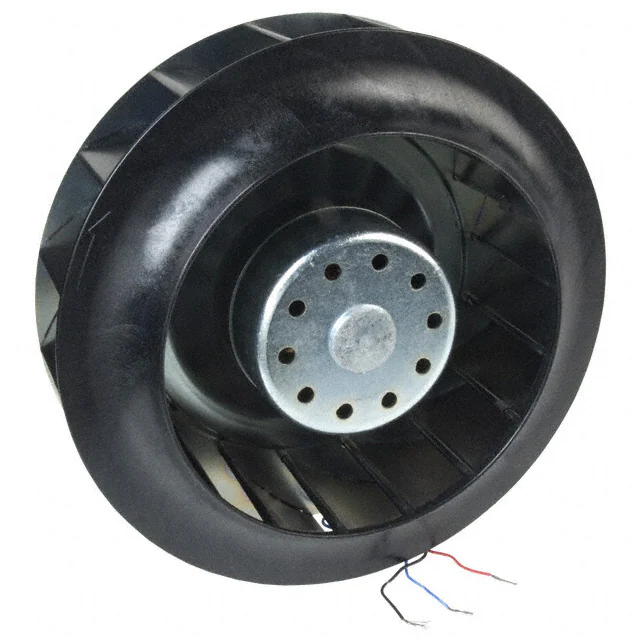

19039859AFAN IMP MTR 192X69MM DD752712K1A |
3,258 | 155.92 |
|
Datasheet |
Diplomat | Bulk | Obsolete | 12VDC | Round - 192mm Dia | 69.00mm | 300.0 CFM (8.40m³/min) | 1.260 in H2O (313.9 Pa) | Ball | Motorized Impellers | Speed Sensor (Tach) | 57.6dB(A) | 30 W | 2150 RPM | 3 Wire Leads | - | - | - | 2.2 lbs (997.9 g) |
|
|
FD1751B24W7-3P-61DC Axial Fan 172x150x51mm 24VDC |
1,063 | 0.00 |
|
Datasheet |
61 | Tape & Box (TB) | Active | 24VDC | Rectangular/Round - 172mm L x 150mm H | 51.00mm | 288.4 CFM (8.08m³/min) | 1.090 in H2O (271.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 60.4dB(A) | 28.8 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 1.653 lb (750.0 g) |
|
|
DV5288NFAN AXIAL 127X38MM |
2,655 | 101.25 |
|
- |
DV5200 | Bulk | Active | - | Square - 127mm L x 127mm H | 38.00mm | - | - | - | Tubeaxial | - | 65.0dB(A) | - | - | - | - | - | - | - |
|
|
4184N/2X-268FAN AXIAL 119X38MM BALL 24VDC |
2,708 | 209.95 |
|
- |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 106.0 CFM (2.97m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 49.0dB(A) | 4.9 W | 3200 RPM | - | - | - | - | 0.86 lb (390.09 g) |
|
|
W1G200-EC95-47DW1G200-EC95-47D |
1,875 | 0.00 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
19039858AFAN IMP MTR 192X69MM DD752748B1A |
4,273 | 165.28 |
|
Datasheet |
Diplomat | Bulk | Obsolete | 48VDC | Round - 192mm Dia | 69.00mm | 250.0 CFM (7.00m³/min) | 0.880 in H2O (219.2 Pa) | Ball | Motorized Impellers | Speed Sensor (Tach) | 53.7dB(A) | 23 W | 1850 RPM | 3 Wire Leads | - | - | - | 2.2 lbs (997.9 g) |
|
|
R1G225-AF59-35R1G225-AF59-35 |
368 | 203.45 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

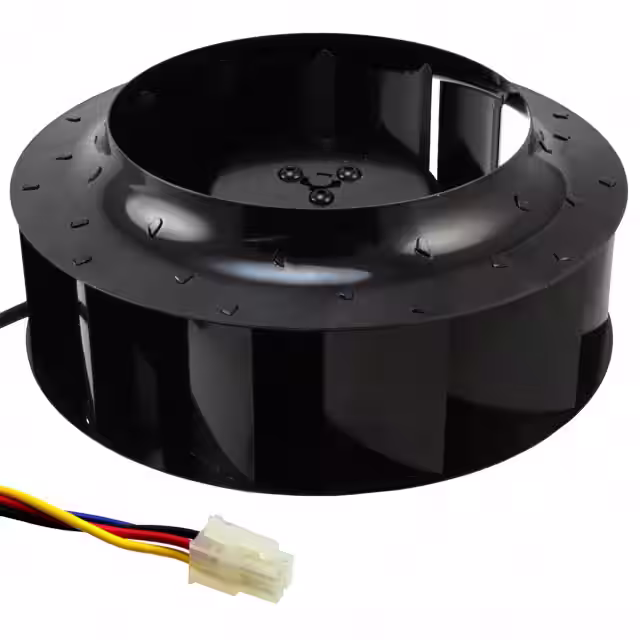

19043137AFAN 227X99MM DDE893948B1S5X-E2 |
1,394 | 208.77 |
|
Datasheet |
Diplomat | Box | Active | 48VDC | Round - 227mm Dia | 99.00mm | 685.0 CFM (19.18m³/min) | 1.900 in H2O (473.3 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 106 W | 2600 RPM | 4 Position Rectangular Connector | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | cUL, UL | 3.8 lbs (1.7 kg) |
|

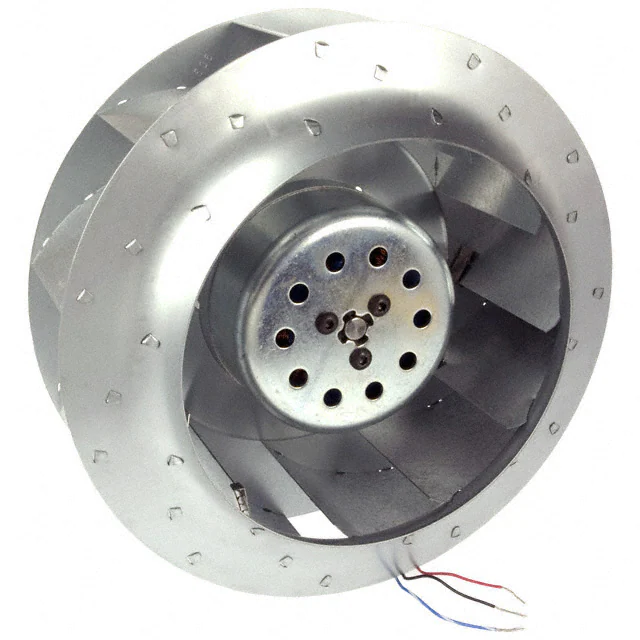

19039871AFAN IMP MTR 227X99MM DD893948B1A |
3,254 | 228.26 |
|
Datasheet |
Diplomat | Bulk | Active | 48VDC | Round - 227mm Dia | 99.00mm | 626.0 CFM (17.53m³/min) | 1.900 in H2O (473.3 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 73.5dB(A) | 100 W | 2550 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 3.8 lbs (1.7 kg) |
|
RER225-63/18/2TDMPFAN IMP MTRZD 225X99MM 48VDC |
2,615 | 197.82 |
|
Datasheet |
RER225TD | Bulk | Obsolete | 48VDC | Round - 225mm Dia | 99.00mm | 789.0 CFM (22.09m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | - | - | 4 Wire Leads | IP54 - Dust Protected, Water Resistant | - | - | - |
|
W1G200-CH77-52FAN AXIAL 280X80MM 24VDC WIRE |
4,109 | 421.61 |
|
Datasheet |
W1G200 | Bulk | Active | 24VDC | Round - 280mm Dia | 80.00mm | 588.0 CFM (16.46m³/min) | - | Ball | Tubeaxial | - | 60.0dB(A) | 55 W | - | 2 Wire Leads | - | - | CSA, UL | 3.3 lbs (1.5 kg) |
|
|
AD0412HB-G70(T1)DC, 40x10,12V,HI, BALL |
1,006 | 0.00 |
|
Datasheet |
AD | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 6.0 CFM (0.168m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 30.5dB(A) | 1.2 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | - |
|
|
AD0405LB-G70(T1)DC, 40x10,5V,LOW, BALL |
783 | 0.00 |
|
Datasheet |
AD | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 4.1 CFM (0.115m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | - | 21.0dB(A) | 0.4 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | - |
|
|
AD0405HB-G70(T1)DC, 40x10,5V,HI, BALL |
446 | 0.00 |
|
Datasheet |
AD4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 6.0 CFM (0.168m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 30.5dB(A) | 0.95 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | - |
|
|
AD0412LB-G70(T1)DC, 40x10,12V,LOW, BALL |
213 | 0.00 |
|
Datasheet |
AD4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.1 CFM (0.115m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | - | 21.0dB(A) | 0.84 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | - |
|
|
AD0524HB-G70(BT1)DC,50X10,24V,HI,BALL |
113 | 0.00 |
|
Datasheet |
AD5010 | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 10.50mm | 10.3 CFM (0.289m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 30.4dB(A) | 2.64 W | 5000 RPM | 2 Wire Leads | - | - | CE, cURus, TUV, UR | - |
|
|
AD0312LX-K70(TX)DC Fan, 30x30x6, 12v,Low Speed, |
229 | 0.00 |
|
Datasheet |
AD | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 6.50mm | 2.4 CFM (0.067m³/min) | 0.080 in H2O (19.9 Pa) | Hypro | Tubeaxial | - | 25.0dB(A) | 0.72 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | - |
