DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFB03505HHA-AFAN BLOWER 35X10MM 5VDC WIRE |
7,038 | 13.31 |
|
Datasheet |
BFB | Bulk | Obsolete | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 2.1 CFM (0.059m³/min) | 0.443 in H2O (110.3 Pa) | Ball | Blower | Locked Rotor Protection | 31.0dB(A) | 750 mW | 8500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.025 lb (11.34 g) |
|
BFB0312HA-AFAN BLOWER 30X10MM 12VDC WIRE |
4,493 | 13.31 |
|
Datasheet |
BFB | Tray | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 1.5 CFM (0.042m³/min) | 0.285 in H2O (71.0 Pa) | Ball | Blower | Locked Rotor Protection | 29.0dB(A) | 720 mW | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.023 lb (10.43 g) |
|
PF38281B2-000U-A99FAN AXIAL 38X28MM 12VDC WIRE |
556 | 14.10 |
|
Datasheet |
PF | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 16.9 CFM (0.473m³/min) | 1.260 in H2O (313.9 Pa) | Ball | Tubeaxial | Auto Restart | 51.0dB(A) | 3.48 W | 15000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.089 lb (40.37 g) |
|
109P0812H702FAN AXIAL 80X15MM 12VDC WIRE |
387 | 12.82 |
|
Datasheet |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 32.1 CFM (0.899m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 2.4 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.15 lb (68.04 g) |
|
109R0824H4021FAN AXIAL 80X25MM 24VDC WIRE |
159 | 12.61 |
|
Datasheet |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 29.0dB(A) | 1.68 W | 2900 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
CFM-9225V-245-460FAN AXIAL 92X25MM 24VDC WIRE |
1,870 | 14.96 |
|
Datasheet |
CFM-92V | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 46.0dB(A) | 6.08 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.234 lb (106.14 g) |
|
|
XYW06038012BSS-NCK-1260X38MM 12V 7500RPM, PWM, 4 WIRE |
767 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
109P0812H701FAN AXIAL 80X15MM 12VDC WIRE |
2,279 | 13.15 |
|
Datasheet |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 32.1 CFM (0.899m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 2.4 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.15 lb (68.04 g) |
|
4715KL-04W-B30-E00FAN AXIAL 119X38.4MM 12VDC WIRE |
1,435 | 20.51 |
|
Datasheet |
11938KA | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 108.0 CFM (3.02m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | - | 42.5dB | 6.6 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
AFB02512HHA-AF00FAN AXIAL 25X10MM 12VDC WIRE |
704 | 13.24 |
|
Datasheet |
AFB | Tray | Not For New Designs | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.4 CFM (0.067m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 960 mW | 13000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.024 lb (10.89 g) |
|
EFB0812HHBFAN AXIAL 80X15MM 12VDC WIRE |
330 | 13.91 |
|
Datasheet |
EFB | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 48.8 CFM (1.37m³/min) | 0.171 in H2O (42.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 3.96 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.148 lb (67.13 g) |
|
AFB0812LBFAN AXIAL 80X15MM 12VDC WIRE |
304 | 13.91 |
|
Datasheet |
AFB | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 24.7 CFM (0.692m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 27.5dB(A) | 1.08 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.128 lb (58.06 g) |
|

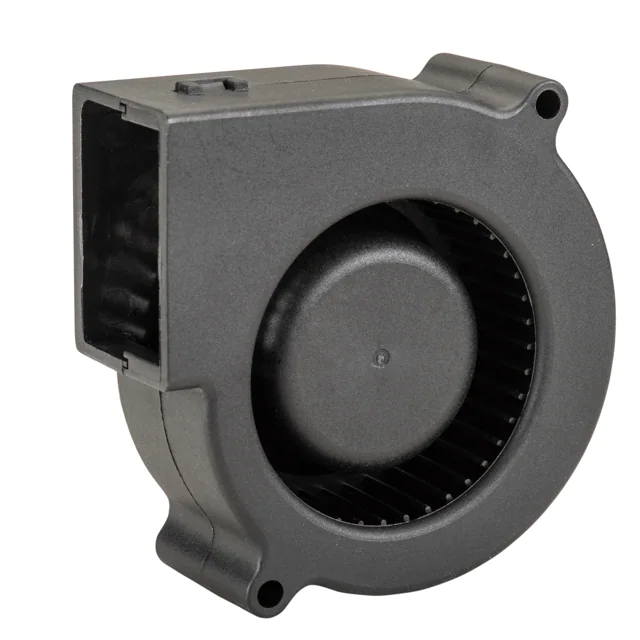

RBM7530B2FAN BLOWER 75X30MM 24VDC WIRE |
644 | 14.31 |
|
Datasheet |
hiFLOW | Bulk | Active | 24VDC | Rectangular/Round - 75mm L x 75mm H | 30.00mm | 10.6 CFM (0.30m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection | 38.0dB(A) | 4.32 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUL, UL | - |
|
4715KL-05W-B39-E00FAN AXIAL 119X38.4MM 24VDC WIRE |
13,641 | 18.24 |
|
Datasheet |
11938KA | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 108.0 CFM (3.02m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.5dB | 7.44 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
BG0703-B054-000-00FAN BLOWER 75X30MM 24VDC WIRE |
3,519 | 15.52 |
|
Datasheet |
07530GA | Bulk | Obsolete | 24VDC | Square/Rounded - 75mm L x 75mm H | 30.00mm | 10.6 CFM (0.297m³/min) | 0.441 in H2O (110.0 Pa) | Ball | Blower | - | 38.5dB | 3.6 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.198 lb (89.81 g) |
|
BG0703-B044-000-00FAN BLOWER 75X30MM 12VDC WIRE |
477 | 15.52 |
|
Datasheet |
07530GA | Bulk | Obsolete | 12VDC | Square/Rounded - 75mm L x 75mm H | 30.00mm | 10.6 CFM (0.297m³/min) | 0.441 in H2O (110.0 Pa) | Ball | Blower | - | 38.5dB | 3.48 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.198 lb (89.81 g) |
|
PF40281B2-000U-A99FAN AXIAL 40X28MM 12VDC WIRE |
255 | 15.25 |
|
Datasheet |
PF | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 18.0 CFM (0.504m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Auto Restart | 48.7dB(A) | 2.96 W | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.101 lb (45.81 g) |
|
PF38281BX-000U-S99FAN AXIAL 38X28MM 12VDC WIRE |
2,231 | 15.34 |
|
Datasheet |
PF | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 23.0 CFM (0.644m³/min) | 2.230 in H2O (555.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 6.24 W | 20000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.091 lb (41.28 g) |
|
AFB0512VHDFAN AXIAL 50X20MM 12VDC WIRE |
750 | 13.28 |
|
Datasheet |
AFB | Tray | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 20.3 CFM (0.568m³/min) | 0.303 in H2O (75.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.5dB(A) | 1.92 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|
FFB03812MNFAN AXIAL 38X28MM 12VDC WIRE |
144 | 10.31 |
|
Datasheet |
FFB | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 12.4 CFM (0.347m³/min) | 0.566 in H2O (141.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 3 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.102 lb (46.27 g) |
