Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

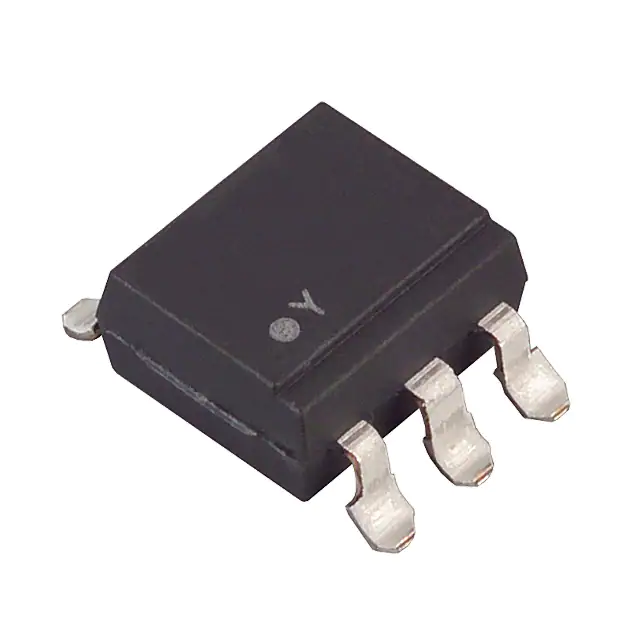

MOC3023S-TA1OPTOISOLATOR 5KV TRIAC 6SMD Lite-On Inc. |
13,720 | 0.62 |
|
Datasheet |
MOC302x | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 400 V | 1kV/µs | 5mA | - | 250µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SMD | CQC, CSA, TUV, UL, VDE |
|
MOC3063OPTOISOLATOR 5KV TRIAC 6DIP Lite-On Inc. |
42,920 | 0.69 |
|
Datasheet |
MOC306x | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CSA, FIMKO, UL |
|
|
MOC3063S-TA1OPTOISOLATOR 5KV TRIAC 6SMD Lite-On Inc. |
243,852 | 0.72 |
|
Datasheet |
MOC306x | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SMD | CSA, FIMKO, UL |
|
|
MOC3022S-TA1OPTOISOLATOR 5KV TRIAC 6SMD Lite-On Inc. |
109,761 | 0.57 |
|
Datasheet |
MOC302x | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 400 V | 1kV/µs | 10mA | - | 250µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SMD | CQC, CSA, TUV, UL, VDE |
|
|
MOC3022OPTOISOLATOR 5KV TRIAC 6DIP Lite-On Inc. |
9,433 | 0.54 |
|
Datasheet |
MOC302x | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 400 V | 1kV/µs | 10mA | - | 250µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, CSA, TUV, UL, VDE |
|
|
MOC3021SOPTOISOLATOR 5KV TRIAC 6SMD Lite-On Inc. |
20,004 | 0.56 |
|
Datasheet |
MOC302x | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 5000Vrms | 400 V | 1kV/µs | 15mA | - | 250µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SMD | CQC, CSA, TUV, UL, VDE |
|
|
MOC3021S-TA1OPTOISOLATOR 5KV TRIAC 6SMD Lite-On Inc. |
53,230 | 0.57 |
|
Datasheet |
MOC302x | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 400 V | 1kV/µs | 15mA | - | 250µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SMD | CQC, CSA, TUV, UL, VDE |
|
|
MOC3083S-TA1OPTOISOLATOR 5KV TRIAC 6SMD Lite-On Inc. |
26,606 | 0.81 |
|
Datasheet |
MOC308x | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 800V/µs | 5mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SMD | CSA, FIMKO, UL |
|
|
MOC3023OPTOISOLATOR 5KV TRIAC 6DIP Lite-On Inc. |
6,279 | 0.59 |
|
Datasheet |
MOC302x | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 400 V | 1kV/µs | 5mA | - | 250µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, CSA, TUV, UL, VDE |
|
|
MOC3021OPTOISOLATOR 5KV TRIAC 6DIP Lite-On Inc. |
7,639 | 0.54 |
|
Datasheet |
MOC302x | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 400 V | 1kV/µs | 15mA | - | 250µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, CSA, TUV, UL, VDE |
