DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD1238-24MBVXEFAN AXIAL 120X38MM 24VDC WIRE |
4,712 | 31.68 |
|
Datasheet |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 215.0 CFM (6.02m³/min) | 1.300 in H2O (323.6 Pa) | Ball | Tubeaxial | Auto Restart | 58.2dB(A) | 34.2 W | 4450 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD1238-24HHBVXEFAN AXIAL 120X38MM 24VDC WIRE |
4,170 | 31.68 |
|
Datasheet |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 258.8 CFM (7.27m³/min) | 1.900 in H2O (473.3 Pa) | Ball | Tubeaxial | Auto Restart | 62.3dB(A) | 60 W | 5475 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD1238-12MBVXEFAN AXIAL 120X38MM 12VDC WIRE |
1,713 | 31.68 |
|
Datasheet |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 215.0 CFM (6.02m³/min) | 1.300 in H2O (323.6 Pa) | Ball | Tubeaxial | Auto Restart | 58.2dB(A) | 34.2 W | 4450 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
AFB1248VHE-T9LNFAN AXIAL 120X38MM 48VDC WIRE |
3,057 | 30.69 |
|
Datasheet |
AFB | Bulk | Not For New Designs | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 190.5 CFM (5.33m³/min) | 0.694 in H2O (173.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.5dB(A) | 14.88 W | 4100 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
|
8314GFAN AXIAL 80X32MM 24VDC WIRE |
1,146 | 52.10 |
|
Datasheet |
8300 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 32.0 CFM (0.896m³/min) | - | Sintec | Tubeaxial | - | 36.0dB(A) | 2.5 W | 3300 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
|
9RA1248A4002120X25MM 48V, LOW NOISE DC 0 |
3,558 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1248G40021120X25MM 48V, LOW NOISE, RBLS DC |
1,353 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1248E40021120X25MM 48V, LOW NOISE, RBLS DC |
3,090 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1248E4002120X25MM 48V, LOW NOISE DC 0 |
2,393 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1248A40021120X25MM 48V, LOW NOISE, RBLS DC |
1,694 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1248G4002120X25MM 48V, LOW NOISE DC 0 |
4,291 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
19031048AFAN BLOWER 124.7X36MM 24V VK24B3 |
3,373 | 0.00 |
|
Datasheet |
Viking | - | Obsolete | 24VDC | Rectangular/Rounded - 124.7mm L x 126.2mm H | 36.00mm | 33.0 CFM (0.924m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Blower | - | 57.6dB(A) | 19.2 W | 4000 RPM | 2 Wire Leads | - | - | - | 0.994 lb (450.87 g) |
|
4412FMDFAN AXIAL 119X25.4MM 12VDC WIRE |
2,994 | 35.90 |
|
Datasheet |
4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 25.40mm | 82.0 CFM (2.30m³/min) | - | Ball | Tubeaxial | - | 38.0dB(A) | 3.2 W | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.38 lb (172.37 g) |
|
4212HFAN AXIAL 119X38MM 12VDC WIRE |
3,850 | 0.00 |
|
Datasheet |
4200 | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 108.3 CFM (3.03m³/min) | - | Ball | Tubeaxial | - | 49.0dB(A) | 5.3 W | 3400 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CE, CSA, UL, VDE | 0.64 lb (290.3 g) |
|
|
4214HFAN AXIAL 119X38MM 24VDC WIRE |
1,269 | 0.00 |
|
Datasheet |
4200 | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 108.3 CFM (3.03m³/min) | - | Ball | Tubeaxial | - | 49.0dB(A) | 5.3 W | - | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, UL, VDE | 0.639 lb (289.85 g) |
|

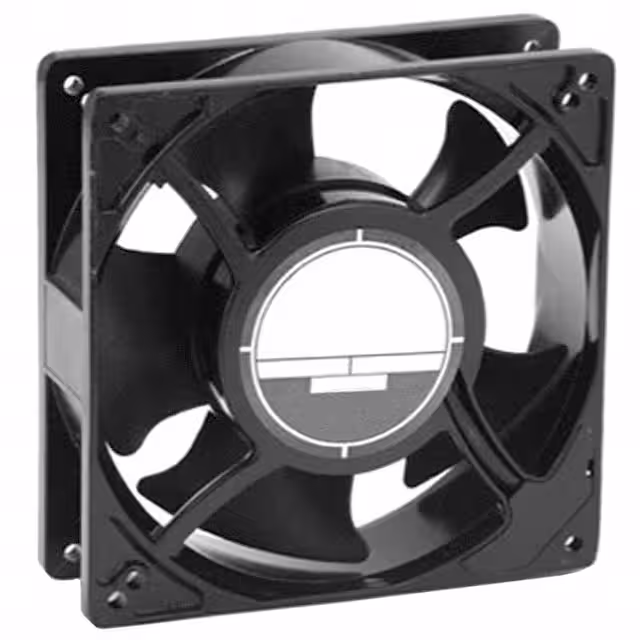

OD127AP-48HTBFAN AXIAL 127X38.5MM 48VDC TERM |
1,797 | 31.32 |
|
Datasheet |
OD127AP | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.50mm | 140.0 CFM (3.92m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | - | 46.0dB | - | 3200 RPM | 2 Terminals | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
VF60384B1-1000U-A9HThermal Products |
4,178 | 0.00 |
|
Datasheet |
VF | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 54.1 CFM (1.51m³/min) | 4.230 in H2O (1053.6 Pa) | Ball | Tubeaxial | Auto Restart | 60.9dB(A) | 12.72 W | 18300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
VF60384BX-1000U-A9HThermal Products |
2,500 | 0.00 |
|
Datasheet |
VF | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 67.8 CFM (1.90m³/min) | 4.840 in H2O (1205.6 Pa) | Ball | Tubeaxial | Auto Restart | 64.1dB(A) | 22.08 W | 22800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
GF92251B2-000U-AE9FAN AXIAL 92X25MM 12VDC WIRE |
2,966 | 22.74 |
|
Datasheet |
GF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | - | 45.0dB(A) | 3.6 W | 4200 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.253 lb (114.76 g) |
|
|
GF92251B3-000U-AE9FAN AXIAL 92X25MM 12VDC WIRE |
2,329 | 22.74 |
|
Datasheet |
GF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | - | 43.0dB(A) | 2.76 W | 3900 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.253 lb (114.76 g) |
