DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19032179AFAN BLOWER 120.7X31MM 24V BD24A3 |
4,117 | 0.00 |
|
Datasheet |
Biscuit | - | Obsolete | 24VDC | Square/Rounded - 120.7mm L x 120.7mm H | 31.00mm | 26.0 CFM (0.728m³/min) | 0.870 in H2O (216.7 Pa) | Sleeve | Blower | - | 51.2dB(A) | 11.5 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 0.619 lb (280.77 g) |
|

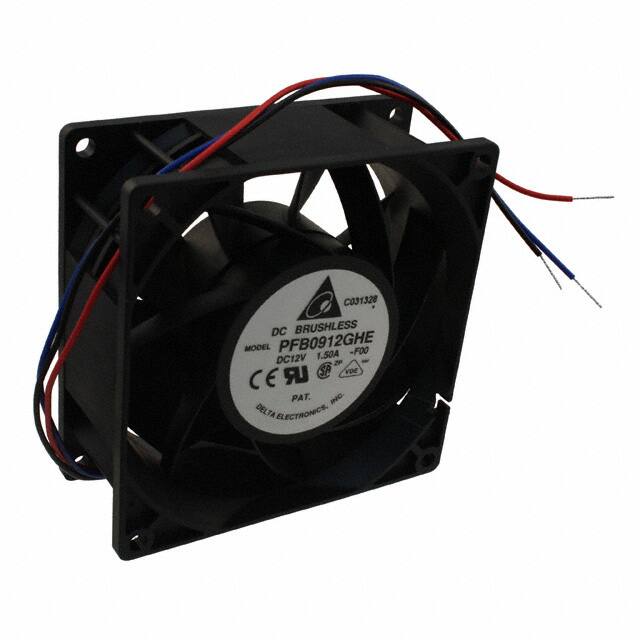

PFB0912GHE-F00FAN AXIAL 92X38MM 12VDC WIRE |
4,407 | 29.30 |
|
Datasheet |
PFB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 129.3 CFM (3.62m³/min) | 1.015 in H2O (252.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 60.5dB(A) | 14.64 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
PFB0912UHE-F00FAN AXIAL 92X38MM 12VDC WIRE |
4,686 | 29.30 |
|
Datasheet |
PFB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 153.5 CFM (4.30m³/min) | 1.449 in H2O (360.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 64.0dB(A) | 23.5 W | 7000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
|
CFM-9238BF68-280-585-20DC AXIAL FAN, 92 MM SQUARE, 38 M |
1,209 | 0.00 |
|
Datasheet |
CFM-92BF68 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 108.9 CFM (3.05m³/min) | 1.640 in H2O (408.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 58.5dB(A) | 16.8 W | 8000 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9238BF68-195-628DC AXIAL FAN, 92 MM SQUARE, 38 M |
2,987 | 0.00 |
|
Datasheet |
CFM-92BF68 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 129.6 CFM (3.63m³/min) | 2.300 in H2O (572.9 Pa) | Ball | Tubeaxial | Auto Restart | 62.8dB(A) | 23.4 W | 9500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
12038VA-48N-EL-00DC AXIAL FAN |
2,309 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12038VA-12M-ETE-0DC AXIAL FAN |
1,584 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12038VA-12N-ETE-0DC AXIAL FAN |
3,995 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12038VA-24N-ELE-0DC AXIAL FAN |
2,223 | 0.00 |
|
Datasheet |
12038VA | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 182.6 CFM (5.17m³/min) | 0.831 in H2O (207.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 59.0dB | 17.76 W | 4700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
12038VA-48L-EL-00DC AXIAL FAN |
2,132 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12038VA-12N-ELE-0DC AXIAL FAN |
2,992 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12038VA-12M-ELE-0DC AXIAL FAN |
3,563 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12038VA-24M-ELE-0DC AXIAL FAN |
3,840 | 0.00 |
|
Datasheet |
12038VA | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 141.3 CFM (3.96m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 53.0dB | 10.8 W | 3800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
12038VA-12Q-ELE-0DC AXIAL FAN |
3,511 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12038VA-24N-ETE-0DC AXIAL FAN |
1,036 | 0.00 |
|
Datasheet |
12038VA | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 182.6 CFM (5.17m³/min) | 0.831 in H2O (207.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 59.0dB | 17.76 W | 4700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
12038VA-24M-ETE-0DC AXIAL FAN |
1,646 | 0.00 |
|
Datasheet |
12038VA | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 141.3 CFM (3.96m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 53.0dB | 10.8 W | 3800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
12038VA-24L-ETE-0DC AXIAL FAN |
4,125 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
.GN, PMB1212PLB3-A(2).GN.jpg)
|
PMB1212PLB3-A.(2).GNFAN BLOWER 120X32MM 12VDC WIRE |
2,685 | 28.10 |
|
Datasheet |
PMB | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 31.4 CFM (0.879m³/min) | 0.640 in H2O (159.4 Pa) | Ball | Blower | - | 49.6dB(A) | 5.4 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.551 lb (249.93 g) |
|
FFB1248EHEFAN AXIAL 120X38MM 48VDC WIRE |
4,054 | 36.98 |
|
Datasheet |
FFB | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 190.0 CFM (5.32m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 59.0dB(A) | 24 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
FFB1248VHEFAN AXIAL 120X38MM 48VDC WIRE |
3,212 | 35.57 |
|
Datasheet |
FFB | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 151.8 CFM (4.25m³/min) | 0.445 in H2O (110.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 13.44 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
