DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FFB1248SHE-R00FAN AXIAL 120X38MM 48VDC WIRE |
2,512 | 29.97 |
|
Datasheet |
FFB | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 170.9 CFM (4.79m³/min) | 0.563 in H2O (140.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 56.5dB(A) | 18.24 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
FFB1248VHE-R00FAN AXIAL 120X38MM 48VDC WIRE |
1,761 | 29.97 |
|
Datasheet |
FFB | Tray | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 151.8 CFM (4.25m³/min) | 0.445 in H2O (110.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 53.0dB(A) | 13.44 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
PFB0812DHE-TYNTFAN AXIAL 80X38MM 12VDC WIRE |
4,270 | 28.04 |
|
Datasheet |
PFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 132.6 CFM (3.71m³/min) | 2.030 in H2O (505.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 33 W | 9000 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, VDE | 0.452 lb (205.02 g) |
|

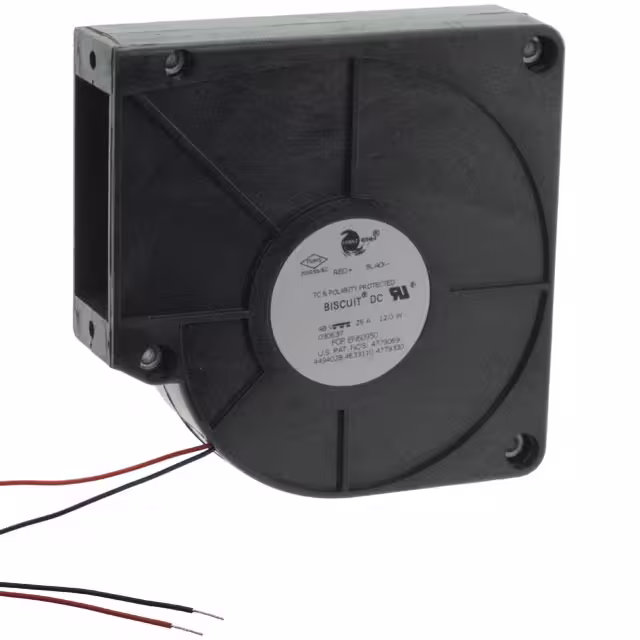

19030637AFAN BLOWER 120.7X31MM 48V BD48B3 |
3,065 | 42.57 |
|
Datasheet |
Biscuit | Box | Active | 48VDC | Square/Rounded - 120.7mm L x 120.7mm H | 31.00mm | 25.0 CFM (0.700m³/min) | 0.870 in H2O (216.7 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection | 52.3dB(A) | 12 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 0.619 lb (280.77 g) |
|
|
PMD1212PMB2-A.(2).R.GNThermal Products |
1,517 | 0.00 |
|
- |
PM | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 170.0 CFM (4.76m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 51.0dB(A) | 14.4 W | 3800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
712F/2-002DC TUBEAXIAL FAN |
1,390 | 0.00 |
|
- |
4100N | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | - | - | Sleeve | - | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
PSD1206PWB1-A(2).Z.R.PWM.GNFAN AXIAL DUAL 60X60MM 12VDC |
1,399 | 30.02 |
|
Datasheet |
MagLev® PSD | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 60.00mm | 67.0 CFM (1.88m³/min) | 2.523 in H2O (628.5 Pa) | Ball | Tubeaxial (Dual) | Auto Restart, Dual Speed, PWM Control | 66.3dB(A) | 20.3 W | 11500 Front, 11000 Rear | 3 Wire Leads | - | - | - | - |
|
|
9GA0948H101FAN AXIAL 92X38MM 48VDC WIRE |
1,826 | 31.15 |
|
Datasheet |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 141.0 CFM (3.95m³/min) | 2.010 in H2O (500.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 63.0dB(A) | 26.4 W | 9700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|

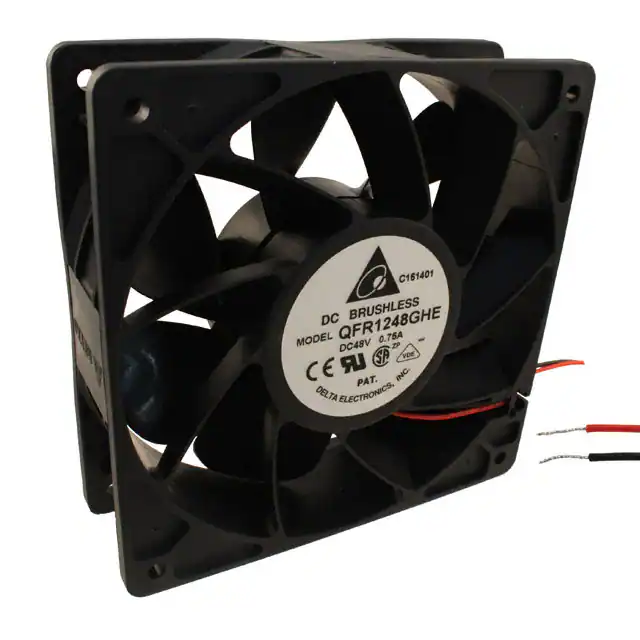

QFR1248GHEFAN AXIAL 120X38MM 48VDC WIRE |
3,934 | 30.15 |
|
Datasheet |
QFR | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 210.4 CFM (5.89m³/min) | 1.170 in H2O (291.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 24 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
|
4212LFAN AXIAL 119X38MM 12VDC WIRE |
1,191 | 0.00 |
|
Datasheet |
4200 | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 51.0 CFM (1.43m³/min) | - | Ball | Tubeaxial | - | 29.0dB(A) | 1.2 W | 1600 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.639 lb (289.85 g) |
|
|
DC0405612U2B-3T3FAN 40X56MM 12VDC TACH MOLEX 22- |
1,156 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 37.2 CFM (1.04m³/min) | 3.870 in H2O (963.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 69.0dB(A) | 20.64 W | 21000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

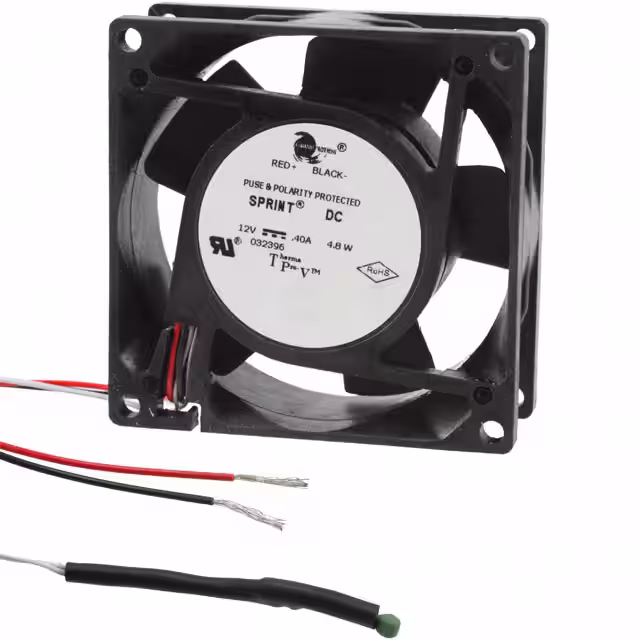

19032396AFAN AXIAL 80X32MM 12VDC ST12T3H |
1,205 | 48.49 |
|
Datasheet |
Sprint | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 38.0 CFM (1.06m³/min) | 0.128 in H2O (31.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Thermistor | 42.7dB(A) | 5 W | 3900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 0.397 lb (180.08 g) |
|
|
9CRE0412J502FAN AXIAL DUAL 40X56MM 12VDC |
1,559 | 23.45 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 31.8 CFM (0.890m³/min) | 2.290 in H2O (570.4 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 16.8 W | 15800 Front, 12200 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.243 lb (110.22 g) |
|
|
9CRV0412P5S20140X56MM 12VDC TACH/PWM CLOSELOOP |
3,180 | 0.00 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 24.3 CFM (0.680m³/min) | 2.369 in H2O (590.0 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 9.6 W | 17000 RPM Front, 15100 RPM Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
DC0405612U2B-BT4FAN 40X56MM 12VDC PWM/TACH MOLEX |
2,221 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 37.2 CFM (1.04m³/min) | 3.870 in H2O (963.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 20.64 W | 21000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
614N/2GNFAN AXIAL 60X25.4MM 24VDC WIRE |
1,991 | 31.06 |
|
- |
600NG | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 24.7 CFM (0.692m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 41.0dB(A) | 2.1 W | - | 3 Wire Leads | - | 158°F (70°C) | - | 0.19 lb (86.18 g) |
|
|
4715SL-04W-B79-D00FAN AXIAL 119X38.4MM 12VDC WIRE |
4,569 | 0.00 |
|
Datasheet |
4715SL | - | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 201.0 CFM (5.63m³/min) | 1.046 in H2O (260.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 62.3dB | 38.4 W | 5100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.882 lb (400.07 g) |
|
|
4715SL-05W-B79-D00FAN AXIAL 119X38.4MM 24VDC WIRE |
3,182 | 0.00 |
|
Datasheet |
4715SL | - | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 201.0 CFM (5.63m³/min) | 1.046 in H2O (260.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 62.3dB | 36 W | 5100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.882 lb (400.07 g) |
|
|
9GA0948P1H031FAN AXIAL 92X38MM 48VDC WIRE |
1,202 | 31.59 |
|
Datasheet |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 141.2 CFM (3.95m³/min) | 2.010 in H2O (500.7 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 26.4 W | 9700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
|
SFB0312HH-F00FAN BLOWER 180X38X45MM 12V WIRE |
3,463 | 0.00 |
|
- |
SFB | Box | Obsolete | 12VDC | Rectangular - 180mm L x 45mm H | 38.00mm | 34.2 CFM (0.958m³/min) | 0.669 in H2O (166.6 Pa) | Ball | Blower, Centrifugal (Triple) | Speed Sensor (Tach) | 53.0dB(A) | 11.16 W | 7000 RPM | 3 Wire Leads | - | - | CE, CSA, UL, VDE | 0.331 lb (150.14 g) |
