DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

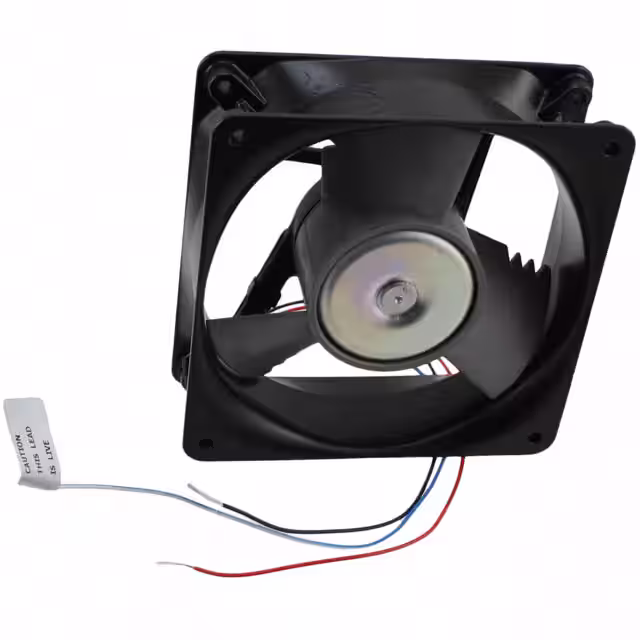

19030714AFAN AXIAL 119.1X39.1MM WD48B7 |
1,168 | 43.99 |
|
Datasheet |
Whisper XL | Box | Active | 48VDC | Square - 119.13mm L x 119.13mm H | 39.10mm | 85.0 CFM (2.38m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 41.1dB(A) | 4.3 W | 2475 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 1.3 lbs (589.7 g) |
|
614NMFAN AXIAL 60X25.4MM 24VDC WIRE |
1,178 | 37.78 |
|
Datasheet |
600N | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 20.6 CFM (0.577m³/min) | - | Ball | Tubeaxial | - | 28.0dB(A) | 1.4 W | 4100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.145 lb (65.77 g) |
|
255/2HFAN AXIAL 25X8MM 12VDC WIRE |
1,384 | 28.71 |
|
Datasheet |
250 | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 8.00mm | 2.6 CFM (0.073m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 23.0dB(A) | 600 mW | 12000 RPM | 3 Wire Leads | - | 14 ~ 131°F (-10 ~ 55°C) | - | - |
|
4715VL-04W-B60-E00FAN AXIAL 120X38MM 12VDC WIRE |
2,387 | 31.93 |
|
Datasheet |
4715VL | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 189.9 CFM (5.32m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Tubeaxial | - | 59.5dB(A) | 18 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UL, VDE | 0.816 lb (370.13 g) |
|
|
12038VA-48Q-EA-00FAN AXIAL 120X38MM 48VDC WIRE |
2,786 | 31.93 |
|
Datasheet |
12038VA | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
12038VA-12Q-EA-00FAN AXIAL 120X38MM 12VDC WIRE |
1,768 | 31.93 |
|
Datasheet |
12038VA | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
12038VA-12N-EA-00FAN AXIAL 120X38MM 12VDC WIRE |
3,484 | 31.93 |
|
Datasheet |
12038VA | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
12038VA-24Q-EA-00FAN AXIAL 120X38MM 24VDC WIRE |
3,114 | 31.93 |
|
Datasheet |
12038VA | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 215.7 CFM (6.04m³/min) | 1.150 in H2O (286.5 Pa) | Ball | Tubeaxial | Auto Restart | 63.0dB | 24.96 W | 5700 RPM | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
12038VA-48P-EA-E0FAN AXIAL 120X38MM 48VDC WIRE |
4,120 | 0.00 |
|
Datasheet |
12038VA | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 189.9 CFM (5.32m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Tubeaxial | Auto Restart | 59.5dB | 21.6 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
12038VA-48R-EA-E0FAN AXIAL 120X38MM 48VDC WIRE |
2,260 | 0.00 |
|
Datasheet |
12038VA | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 243.2 CFM (6.81m³/min) | 1.460 in H2O (363.7 Pa) | Ball | Tubeaxial | Auto Restart | 66.0dB | 38.4 W | 6400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
PF40561B1-1000U-H9H12VDC FAN 40X56MM PWM |
1,939 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 26.9 CFM (0.753m³/min) | 2.640 in H2O (657.6 Pa) | Ball | Tubeaxial (Dual) | PWM Control | 62.3dB(A) | 10.68 W | 18000 Front, 15000 Rear | 3 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF40561B1-1000U-G9H12VDC FAN 40X56MM ALARM |
1,915 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 26.9 CFM (0.753m³/min) | 2.640 in H2O (657.6 Pa) | Ball | Tubeaxial (Dual) | Speed Sensor (Tach) | 62.3dB(A) | 10.68 W | 18000 Front, 15000 Rear | 3 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF40561BX-1000U-H9H12VDC FAN 40X56MM PWM |
2,760 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 31.7 CFM (0.888m³/min) | 3.760 in H2O (936.6 Pa) | Ball | Tubeaxial (Dual) | PWM Control | 65.9dB(A) | 16.68 W | 21500 Front, 18000 Rear | 3 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF40561BX-1000U-G9H12VDC FAN 40X56MM ALARM |
3,056 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 31.7 CFM (0.888m³/min) | 3.760 in H2O (936.6 Pa) | Ball | Tubeaxial (Dual) | Speed Sensor (Tach) | 65.9dB(A) | 16.68 W | 21500 Front, 18000 Rear | 3 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
FFB1324VHEFAN AXIAL 127X38MM 24VDC WIRE |
1,999 | 0.00 |
|
Datasheet |
FFB | Bulk | Obsolete | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 160.0 CFM (4.48m³/min) | 0.504 in H2O (125.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 14.4 W | 3050 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
|
FFB1324EHEFAN AXIAL 127X38MM 24VDC WIRE |
3,827 | 41.32 |
|
Datasheet |
FFB | Box | Obsolete | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 200.0 CFM (5.60m³/min) | 0.799 in H2O (199.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 59.5dB(A) | 28.8 W | 3850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
|
FFB1324SHEFAN AXIAL 127X38MM 24VDC WIRE |
4,141 | 0.00 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

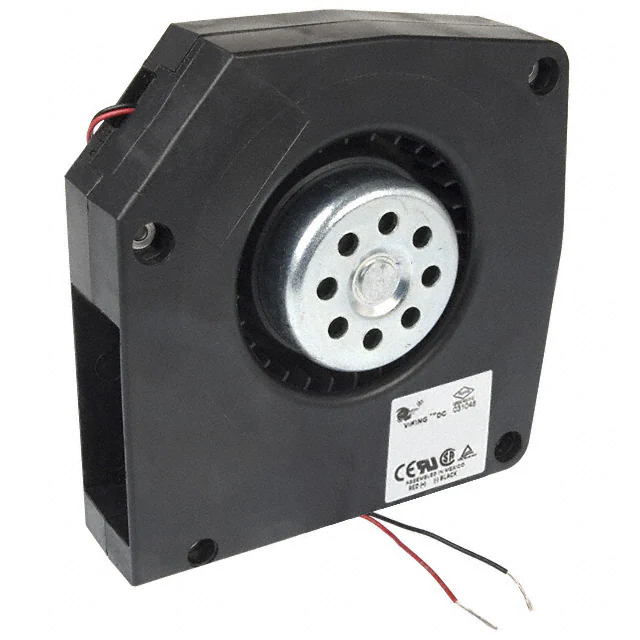

19031047AFAN BLOWER 124.7X36MM 12V VK12B3 |
4,223 | 0.00 |
|
Datasheet |
Viking | - | Obsolete | 12VDC | Rectangular/Rounded - 124.7mm L x 126.2mm H | 36.00mm | 33.0 CFM (0.924m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Blower | - | 57.6dB(A) | 16 W | 3925 RPM | 2 Wire Leads | - | - | - | 0.994 lb (450.87 g) |
|
|
PF40561B1-1000U-F9H12VDC FAN 40X56MM TACH |
3,694 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 26.9 CFM (0.753m³/min) | 2.640 in H2O (657.6 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Sensor | 62.3dB(A) | 10.68 W | 18000 Front, 15000 Rear | 3 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF40561BX-1000U-F9H12VDC FAN 40X56MM TACH |
4,801 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 31.7 CFM (0.888m³/min) | 3.760 in H2O (936.6 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Sensor | 65.9dB(A) | 16.68 W | 21500 Front, 18000 Rear | 3 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
