DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMD1207PTB3-A.(2).GNFAN AXIAL 70X25MM 12VDC WIRE |
4,637 | 8.67 |
|
Datasheet |
PMD | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart | 39.0dB(A) | 2.9 W | 4200 RPM | 2 Wire Leads | - | - | - | - |
_Series.jpg)
|
3412NGMFAN AXIAL 92X25.4MM 12VDC WIRE |
1,652 | 0.00 |
|
Datasheet |
3400N | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 42.0 CFM (1.18m³/min) | - | Sintec | Tubeaxial | - | 28.0dB(A) | 1.6 W | 2300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.31 lb (140.61 g) |
|
|
CFM-A238BJ-226-469-22DC AXIAL FAN, 120 MM SQUARE, 38 |
1,351 | 0.00 |
|
Datasheet |
CFM-A2BJ | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 46.9dB(A) | 6 W | 2600 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0402824L2B-BT0FAN 40X28MM 24VDC PWM/TACH |
4,798 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 13.8 CFM (0.386m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.0dB(A) | 3.36 W | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

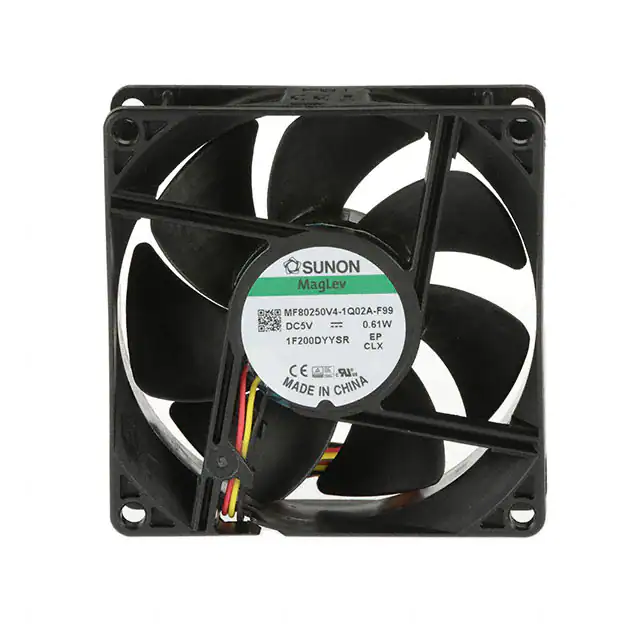

4511HQ/MF80250V4-1Q02A-F99DC FAN 80X25MM VAPO RD 3 WIRE |
2,936 | 16.85 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DC0402824M2B-2T2FAN 40X28MM 24VDC MOLEX 22-01-10 |
3,288 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 15.9 CFM (0.445m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 6.24 W | 9500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0402824L2B-2T2FAN 40X28MM 24VDC MOLEX 22-01-10 |
2,632 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 13.8 CFM (0.386m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 38.0dB(A) | 3.36 W | 8000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0402824H2B-2T2FAN 40X28MM 24VDC MOLEX 22-01-10 |
2,297 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 18.7 CFM (0.524m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 51.0dB(A) | 8.4 W | 11000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0402824U2B-2T2FAN 40X28MM 24VDC MOLEX 22-01-10 |
2,588 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 24.8 CFM (0.694m³/min) | 1.640 in H2O (408.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 58.0dB(A) | 15.36 W | 15000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
CBM-979433B-127FAN BLOWER 97.2X33MM 12VDC WIRE |
1,052 | 16.92 |
|
Datasheet |
CBM-97B | Tray | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 22.4 CFM (0.627m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Blower | Auto Restart | 50.0dB(A) | 3.6 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.408 lb (185.07 g) |
|
|
CBM-979433B-132FAN BLOWER 97.2X33MM 12VDC WIRE |
4,496 | 16.92 |
|
Datasheet |
CBM-97B | Tray | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 26.6 CFM (0.745m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Blower | Auto Restart | 53.1dB(A) | 5.28 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.408 lb (185.07 g) |
|
|
CBM-979433B-136FAN BLOWER 97.2X33MM 12VDC WIRE |
2,325 | 16.92 |
|
Datasheet |
CBM-97B | Tray | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 30.5 CFM (0.854m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Blower | Auto Restart | 55.8dB(A) | 7.2 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.408 lb (185.07 g) |
|
|
PMB2475PNB1-AY (2).GN.IP55FAN BLOWER 75.7X30MM 24VDC WIRE |
1,138 | 16.26 |
|
Datasheet |
PMB | Bulk | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 13.6 CFM (0.381m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Blower | Auto Restart | 43.5dB(A) | 4.1 W | 3400 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.191 lb (86.64 g) |
|
|
PMB2475PNB3-AY (2).GN.IP55FAN BLOWER 75.7X30MM 24VDC WIRE |
1,716 | 16.26 |
|
Datasheet |
PMB | Bulk | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 9.6 CFM (0.269m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Blower | Auto Restart | 33.9dB(A) | 1.9 W | 2400 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.191 lb (86.64 g) |
|
|
PMB2475PNB4-AY (2).GN.IP55FAN BLOWER 75.7X30MM 24VDC WIRE |
4,166 | 16.26 |
|
Datasheet |
PMB | Bulk | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 7.5 CFM (0.210m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Blower | Auto Restart | 28.0dB(A) | 1.2 W | 1900 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.191 lb (86.64 g) |
|
|
PF75302B3-1B00U-S9924VDC FAN 75X30MM TACH/PWM |
2,683 | 0.00 |
|
Datasheet |
PF | Box | Active | 24VDC | Square/Rounded - 75mm L x 75mm H | 30.00mm | 10.8 CFM (0.302m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.9dB(A) | 1.13 W | 2400 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF75302B1-1B00U-S9924VDC FAN 75X30MM TACH/PWM |
3,915 | 0.00 |
|
Datasheet |
PF | Box | Active | 24VDC | Square/Rounded - 75mm L x 75mm H | 30.00mm | 15.5 CFM (0.434m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 42.0dB(A) | 2.76 W | 3400 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF75302B2-1B00U-S9924VDC FAN 75X30MM TACH/PWM |
2,528 | 0.00 |
|
Datasheet |
PF | Box | Active | 24VDC | Square/Rounded - 75mm L x 75mm H | 30.00mm | 13.8 CFM (0.386m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.6dB(A) | 1.92 W | 3000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
UB3F3-500BFAN BLOWER 15X3MM VAPO 3VDC WIRE |
3,894 | 23.41 |
|
Datasheet |
MagLev® UB, Mighty Mini | Tray | Active | 3VDC | Square - 15mm L x 15mm H | 3.00mm | 0.170 CFM (0.005m³/min) | 0.136 in H2O (33.9 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 100 mW | 14000 RPM | 3 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
|
UF3F3-500BFAN AXIAL 15X3MM VAPO 3VDC WIRE |
2,887 | 25.44 |
|
Datasheet |
MagLev® UF, Mighty Mini | Tray | Active | 3VDC | Square - 15mm L x 15mm H | 3.00mm | 0.309 CFM (0.009m³/min) | 0.082 in H2O (20.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 100 mW | 14500 RPM | 3 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
