DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-A238-43-10FAN AXIAL 120X38MM 48VDC WIRE |
1,752 | 17.15 |
|
Datasheet |
CFM-120 | Tray | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 200.9 CFM (5.63m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Auto Restart | 61.5dB(A) | 23.04 W | 4600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.624 lb (283.04 g) |
|
PMD1204PPB1-A(2)FAN AXIAL DUAL 40X56MM 12VDC |
3,102 | 0.00 |
|
- |
PMD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 26.5 CFM (0.742m³/min) | 1.730 in H2O (430.9 Pa) | Ball | Tubeaxial (Dual) | - | 59.0dB(A) | 16.8 W | 14500 Front, 9500 Rear | 2 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.195 lb (88.45 g) |
|
DC0602512W2B-3T0FAN AXIAL 60X25MM 12VDC WIRE |
1,255 | 13.66 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 55.4 CFM (1.55m³/min) | 1.170 in H2O (291.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 66.0dB(A) | 6.48 W | 9800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.126 lb (57.15 g) |
|
|
DC0602512U2B-3T0FAN AXIAL 60X25MM 12VDC WIRE |
3,967 | 13.66 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 43.8 CFM (1.23m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 56.0dB(A) | 5.4 W | 6800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.126 lb (57.15 g) |
|
|
DC0602512V2B-3T0FAN AXIAL 60X25MM 12VDC WIRE |
3,071 | 13.66 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 47.8 CFM (1.34m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 63.0dB(A) | 5.76 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.126 lb (57.15 g) |
|
|
DC0602524V2B-2T0FAN 60X25MM 24VDC |
2,455 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 47.8 CFM (1.34m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 63.0dB(A) | 11.52 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0602524W2B-2T0FAN 60X25MM 24VDC |
2,062 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 55.2 CFM (1.55m³/min) | 1.170 in H2O (291.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 66.0dB(A) | 12.96 W | 9800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0602524U2B-2T0FAN 60X25MM 24VDC |
1,948 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 43.8 CFM (1.23m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.0dB(A) | 10.8 W | 6800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

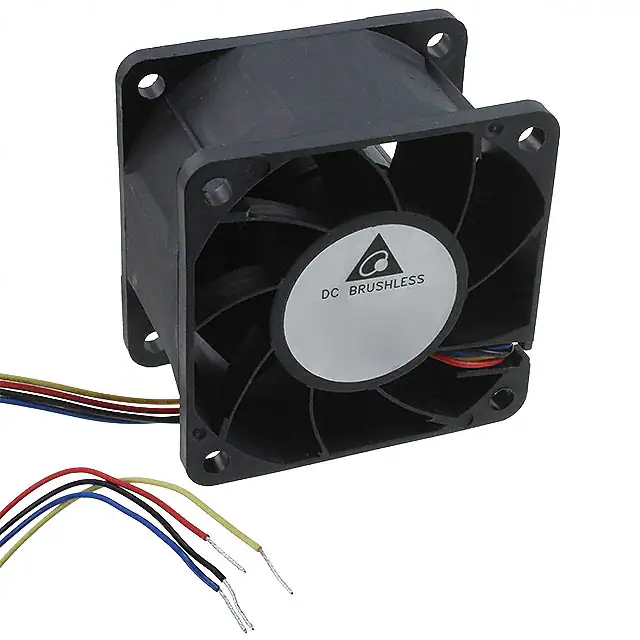

FFC0612DE-PP01FAN AXIAL 60X38MM 12VDC WIRE |
2,552 | 24.31 |
|
Datasheet |
FFC | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 54.8 CFM (1.53m³/min) | 1.182 in H2O (294.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 10.8 W | 9000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.234 lb (106.14 g) |
|
|
MXB9733M24B-BSRFAN BLOWER 97X33MM 24VDC WIRE |
1,917 | 16.33 |
|
Datasheet |
MXB9733 | Bulk | Active | 24VDC | Rectangular/Rounded - 97mm L x 94.4mm H | 33.00mm | 24.0 CFM (0.672m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Blower | Thermal Overload Protector (TOP) | 51.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.397 lb (180.08 g) |
|
|
MXB9733L24B-BSRFAN BLOWER 97X33MM 24VDC WIRE |
4,930 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9G0624G1D011FAN AXIAL 60X38MM 24VDC WIRE |
1,900 | 15.56 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 65.0 CFM (1.82m³/min) | 1.747 in H2O (435.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 58.0dB(A) | 20.4 W | 11800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9G0624H1D01FAN AXIAL 60X38MM 24VDC WIRE |
1,710 | 15.56 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 54.4 CFM (1.52m³/min) | 1.223 in H2O (304.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 54.0dB(A) | 13.68 W | 9800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9G0624S1D01FAN AXIAL 60X38MM 24VDC WIRE |
1,851 | 15.56 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 60.0 CFM (1.68m³/min) | 1.486 in H2O (370.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 56.0dB(A) | 16.8 W | 10800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9G0624H101FAN AXIAL 60X38MM 24VDC WIRE |
3,126 | 15.56 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 54.4 CFM (1.52m³/min) | 1.223 in H2O (304.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 54.0dB(A) | 13.68 W | 9800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9G0624H1011FAN AXIAL 60X38MM 24VDC WIRE |
1,075 | 15.56 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 54.4 CFM (1.52m³/min) | 1.223 in H2O (304.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 54.0dB(A) | 13.68 W | 9800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9G0624S1011FAN AXIAL 60X38MM 24VDC WIRE |
2,998 | 15.56 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 60.0 CFM (1.68m³/min) | 1.486 in H2O (370.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 56.0dB(A) | 16.8 W | 10800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
CBM-A232B-130-521-22FAN BLOWER 119.3X32MM 12VDC WIRE |
2,767 | 0.00 |
|
Datasheet |
CBM-120B-2 | Box | Active | 12VDC | Square/Rounded - 119.3mm L x 119mm H | 32.00mm | 27.7 CFM (0.776m³/min) | 1.350 in H2O (336.3 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 52.1dB(A) | 12.96 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
612GFAN AXIAL 60X25.4MM 12VDC WIRE |
3,841 | 0.00 |
|
Datasheet |
600 | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 24.0 CFM (0.672m³/min) | - | Sintec | Tubeaxial | - | 40.0dB(A) | 2.8 W | - | 2 Wire Leads | - | - | - | 0.19 lb (86.18 g) |
|
|
612GLFAN AXIAL 60X25.4MM 12VDC WIRE |
1,904 | 0.00 |
|
Datasheet |
600 | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 12.0 CFM (0.336m³/min) | - | Sintec | Tubeaxial | - | 24.0dB(A) | 1 W | - | 2 Wire Leads | - | - | - | 0.19 lb (86.18 g) |
