DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G0624S1021FAN AXIAL 60X38MM 24VDC WIRE |
1,390 | 15.27 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 60.0 CFM (1.68m³/min) | 1.486 in H2O (370.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.0dB(A) | 16.8 W | 10800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
DC1203812H2B-2T0FAN AXIAL 120X38MM 12VDC WIRE |
4,582 | 15.85 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 136.0 CFM (3.81m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 9.6 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.508 lb (230.42 g) |
|
|
PF75301B2-1B00U-Q9912VDC FAN 75X30MM ALARM/PWM |
1,740 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square/Rounded - 75mm L x 75mm H | 30.00mm | 13.8 CFM (0.386m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Blower | Auto Restart, Locked Rotor Sensor, PWM Control | 38.6dB(A) | 1.71 W | 3000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF75301B3-1B00U-Q9912VDC FAN 75X30MM ALARM/PWM |
1,956 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square/Rounded - 75mm L x 75mm H | 30.00mm | 10.8 CFM (0.302m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Blower | Auto Restart, Locked Rotor Sensor, PWM Control | 32.9dB(A) | 0.99 W | 2400 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF75301B1-1B00U-Q9912VDC FAN 75X30MM ALARM/PWM |
3,559 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square/Rounded - 75mm L x 75mm H | 30.00mm | 15.5 CFM (0.434m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Blower | Auto Restart, Locked Rotor Sensor, PWM Control | 42.0dB(A) | 2.4 W | 3400 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
DC0382812H2B-3T1FAN 38X28MM 12VDC TACH COMPUTER |
2,928 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 16.3 CFM (0.456m³/min) | 1.020 in H2O (255.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 3.48 W | 13000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0382812V2B-3T1FAN 38X28MM 12VDC TACH COMPUTER |
2,964 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 20.8 CFM (0.582m³/min) | 1.670 in H2O (416.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 59.0dB(A) | 10.2 W | 17000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0382812L2B-3T1FAN 38X28MM 12VDC TACH COMPUTER |
1,035 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 9.4 CFM (0.263m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 1.32 W | 8000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0382812M2B-3T1FAN 38X28MM 12VDC TACH COMPUTER |
3,282 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 12.5 CFM (0.350m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 1.8 W | 10000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
MD9238H48B-FSR-CCFAN AXIAL 92X38MM 48VDC WIRE |
4,308 | 19.62 |
|
Datasheet |
MD9238 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 100.7 CFM (2.82m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 53.5dB(A) | - | 4400 RPM | 2 Wire Leads | - | - | CE, TUV, UL | 0.397 lb (180.08 g) |
|
UB393-700FAN BLOWER 9X3MM VAPO 3VDC WIRE |
2,695 | 0.00 |
|
Datasheet |
MagLev® UB, Mighty Mini | Tray | Obsolete | 3VDC | Square - 9mm L x 9mm H | 3.00mm | 0.041 CFM (0.001m³/min) | 0.065 in H2O (16.2 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 25.0dB(A) | 280 mW | 17400 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|
UB393-700TCFAN BLOWER 9X3MM VAPO 3VDC WIRE |
3,553 | 18.50 |
|
Datasheet |
MagLev® UB, Mighty Mini | Tray | Active | 3VDC | Square - 9mm L x 9mm H | 3.00mm | 0.041 CFM (0.001m³/min) | 0.065 in H2O (16.2 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 25.0dB(A) | 280 mW | 15500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
B.jpg)
|
CFM-A238B-238-529-22FAN AXIAL 120X37.5MM 24VDC WIRE |
4,677 | 16.75 |
|
Datasheet |
CFM-120B | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 146.9 CFM (4.11m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 13.92 W | 3800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-A238B-138-529-22FAN AXIAL 120X37.5MM 12VDC WIRE |
3,729 | 16.75 |
|
Datasheet |
CFM-120B | Box | Active | 12VDC | Square - 120mm L x 120mm H | 37.50mm | 146.9 CFM (4.11m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 13.2 W | 3800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

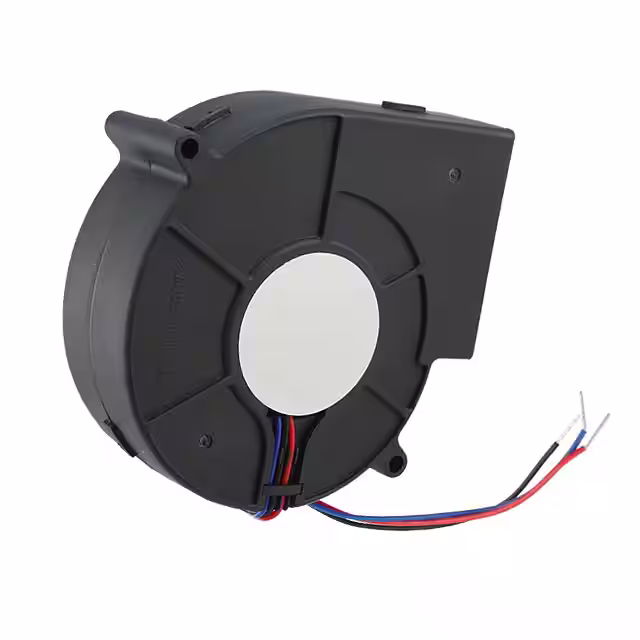

BFB1012H-F00FAN BLOWER 97.2X33MM 12VDC WIRE |
3,613 | 0.00 |
|
Datasheet |
BFB | Box | Obsolete | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 25.4 CFM (0.711m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 52.0dB(A) | 9.6 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.353 lb (160.12 g) |
|
BFB1012M-F00FAN BLOWER 97.2X33MM 12VDC WIRE |
1,877 | 0.00 |
|
Datasheet |
BFB | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 22.6 CFM (0.633m³/min) | 0.748 in H2O (186.3 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 49.0dB(A) | 6.84 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.353 lb (160.12 g) |
|
|
9GA0624G6D00160X20MM 24V,HIGH PERF.,LOW POWER |
1,549 | 0.00 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
MS6038L12B-FSR-2EMFAN AXIAL 60X38MM 12VDC WIRE |
1,114 | 14.44 |
|
Datasheet |
MS6038-S | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 26.1 CFM (0.731m³/min) | 0.470 in H2O (117.1 Pa) | Ball | Tubeaxial | Auto Restart | 39.0dB(A) | - | 6000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.231 lb (104.78 g) |
|
|
MS6038M12B-FSR-2EMFAN AXIAL 60X38MM 12VDC WIRE |
3,923 | 14.44 |
|
Datasheet |
MS6038-S | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 44.0 CFM (1.23m³/min) | 0.810 in H2O (201.8 Pa) | Ball | Tubeaxial | Auto Restart | 54.0dB(A) | - | 8000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.231 lb (104.78 g) |
|
|
MS6038L24B-FSR-2EMFAN AXIAL 60X38MM 24VDC WIRE |
3,274 | 14.44 |
|
Datasheet |
MS6038-S | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 26.1 CFM (0.731m³/min) | 0.470 in H2O (117.1 Pa) | Ball | Tubeaxial | Auto Restart | 39.0dB(A) | - | 6000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.231 lb (104.78 g) |
