DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
OD9238-12LBVXCFAN AXIAL 92.5X38MM 12VDC WIRE |
3,997 | 0.00 |
|
Datasheet |
OD9238 VA | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 38.00mm | 108.0 CFM (3.02m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Auto Restart | 52.0dB | 9 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD9238-12MBVXCFAN AXIAL 92.5X38MM 12VDC WIRE |
3,810 | 0.00 |
|
Datasheet |
OD9238 VA | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.590 in H2O (147.0 Pa) | Ball | Tubeaxial | Auto Restart | 55.0dB | 11 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD9238-24MBVXCFAN AXIAL 92.5X38MM 24VDC WIRE |
2,061 | 0.00 |
|
Datasheet |
OD9238 VA | Bulk | Active | 24VDC | Square - 92.5mm L x 92.5mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.590 in H2O (147.0 Pa) | Ball | Tubeaxial | Auto Restart | 55.0dB | 11 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
CFM-9225BG68-257-533-22DC AXIAL FAN, 92 MM SQUARE, 25 M |
1,877 | 0.00 |
|
Datasheet |
CFM-92BG68 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 101.2 CFM (2.83m³/min) | 0.720 in H2O (179.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 53.3dB(A) | 11.28 W | 5700 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9225BG68-157-533-22DC AXIAL FAN, 92 MM SQUARE, 25 M |
2,199 | 0.00 |
|
Datasheet |
CFM-92BG68 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 101.2 CFM (2.83m³/min) | 0.720 in H2O (179.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 53.3dB(A) | 11.16 W | 5700 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
PF80252B3-1000U-Q9924VDC FAN 80X25MM ALARM/PWM |
4,367 | 0.00 |
|
Datasheet |
PF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 42.5dB(A) | 2.4 W | 4200 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF80252B1-1000U-Q9924VDC FAN 80X25MM ALARM/PWM |
2,238 | 0.00 |
|
Datasheet |
PF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 45.5dB(A) | 3.72 W | 4800 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF80252B2-1000U-Q9924VDC FAN 80X25MM ALARM/PWM |
1,088 | 0.00 |
|
Datasheet |
PF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 56.0 CFM (1.6m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 44.0dB(A) | 3.24 W | 4500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
UB3C3-700BFAN BLOWER 12X3MM VAPO 3VDC WIRE |
1,728 | 22.87 |
|
Datasheet |
MagLev® UB, Mighty Mini | Tray | Active | 3VDC | Square - 12mm L x 12mm H | 3.00mm | 0.094 CFM (0.003m³/min) | 0.092 in H2O (23.0 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 26.0dB(A) | 100 mW | 15500 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|
UB3F3-700BFAN BLOWER 15X3MM VAPO 3VDC WIRE |
4,375 | 22.87 |
|
Datasheet |
MagLev® UB, Mighty Mini | Tray | Active | 3VDC | Square - 15mm L x 15mm H | 3.00mm | 0.160 CFM (0.004m³/min) | 0.116 in H2O (28.8 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 30.0dB(A) | 100 mW | 14000 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
|
GB0503PFV1-8 B1837.GNFAN BLOWER 30X10MM 5VDC WIRE |
3,691 | 0.00 |
|
Datasheet |
MagLev® GB | Bulk | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.320 in H2O (79.7 Pa) | Vapo-Bearing™ | Blower | - | 30.9dB(A) | 500 mW | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.019 lb (8.62 g) |
|
|
PMB1275PNB1-AY (2).GN.IP55FAN BLOWER 75.7X30MM 12VDC WIRE |
4,333 | 16.16 |
|
Datasheet |
PMB | Bulk | Active | 12VDC | Square - 75.7mm L x 75.7mm H | 30.00mm | 13.6 CFM (0.381m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Blower | Auto Restart | 43.5dB(A) | 3.6 W | 3400 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PMB1275PNB2-AY (2).GN.IP55FAN BLOWER 75.7X30MM 12VDC WIRE |
1,593 | 16.16 |
|
Datasheet |
PMB | Bulk | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 12.3 CFM (0.344m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Blower | Auto Restart | 40.5dB(A) | 2.8 W | 3000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.191 lb (86.64 g) |
|
|
PMB1275PNB3-AY (2).GN.IP55FAN BLOWER 75.7X30MM 12VDC WIRE |
1,967 | 16.16 |
|
Datasheet |
PMB | Bulk | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 9.6 CFM (0.269m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Blower | Auto Restart | 33.9dB(A) | 1.6 W | 2400 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.191 lb (86.64 g) |
|
|
PMB1275PNB4-AY (2).GN.IP55FAN BLOWER 75.7X30MM 12VDC WIRE |
4,053 | 16.16 |
|
Datasheet |
PMB | Bulk | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 7.5 CFM (0.210m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Blower | Auto Restart | 28.0dB(A) | 1 W | 1900 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.191 lb (86.64 g) |
|

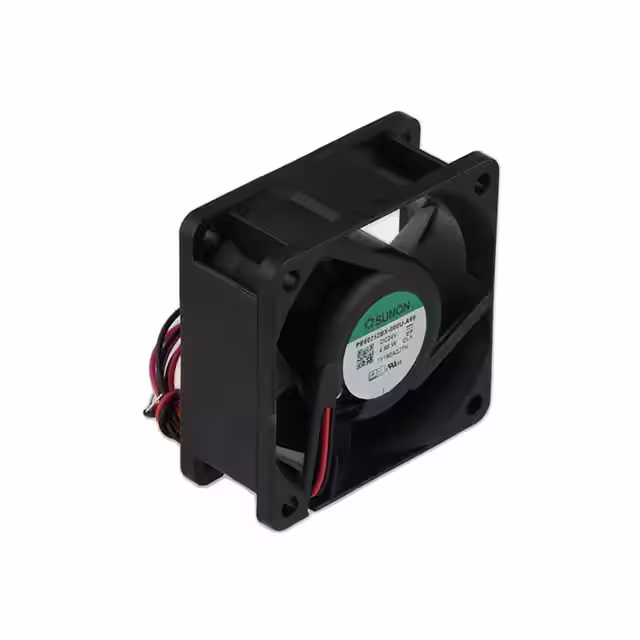

PE60252BX-000U-A99FAN AXIAL 60X25MM 24VDC WIRE |
1,367 | 13.45 |
|
Datasheet |
PE | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.640 in H2O (159.4 Pa) | Ball | Tubeaxial | Auto Restart | 46.0dB(A) | 4.56 W | 7600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.167 lb (75.75 g) |
|
|
EEC0252B1-000U-F99FAN AXIAL 120X25MM 24VDC WIRE |
1,676 | 11.10 |
|
Datasheet |
EEC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 44.5dB(A) | 5 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.346 lb (156.94 g) |
|
|
EEC0252B2-000U-F9924VDC FAN 120X25MM TACH |
3,280 | 0.00 |
|
Datasheet |
EE | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.220 in H2O (55.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 40.5dB(A) | 3.5 W | 2700 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EEC0252B3-000U-F9924VDC FAN 120X25MM TACH |
2,372 | 0.00 |
|
Datasheet |
EE | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 34.0dB(A) | 2 W | 2200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
DC0401005U2B-3T1FAN 40X10MM 5VDC TACH COMPUTER |
1,021 | 0.00 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 9.3 CFM (0.260m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 1 W | 8000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
