DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
04020VA-24M-AA-00FAN AXIAL 40X20MM 24VDC WIRE |
2,298 | 11.95 |
|
Datasheet |
04020VA | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 8.8 CFM (0.246m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart | 29.0dB | 1.2 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CFM-8025BG-270-517FAN AXIAL 80X25.4MM 24VDC WIRE |
4,995 | 15.36 |
|
Datasheet |
CFM-80BG | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 72.4 CFM (2.03m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Auto Restart | 51.8dB(A) | 13.44 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0401012V2B-BT0FAN AXIAL 40X10MM 12VDC WIRE |
2,440 | 7.77 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 12.2 CFM (0.342m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 39.0dB(A) | 2.04 W | 10000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.045 lb (20.41 g) |
|
UF3H3-500TCFAN AXIAL 17X3MM VAPO 3VDC WIRE |
1,377 | 19.45 |
|
Datasheet |
MagLev® UF, Mighty Mini | Tray | Active | 3VDC | Square - 17mm L x 17mm H | 3.00mm | 0.575 CFM (0.016m³/min) | 0.085 in H2O (21.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 100 mW | 13000 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
|
9GA0612P7H01FAN AXIAL 60X15MM 12VDC WIRE |
3,480 | 16.65 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 19.7 CFM (0.552m³/min) | 0.223 in H2O (55.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 34.0dB(A) | 1.2 W | 4900 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
06015VA-24P-CA-00FAN AXIAL 60X15MM 24VDC WIRE |
2,738 | 15.21 |
|
Datasheet |
06015VA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 19.4 CFM (0.543m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | - | 36.5dB | 1.68 W | 5600 RPM | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | 0.132 lb (59.87 g) |
|
9S0612M401FAN AXIAL 60X25MM 12VDC WIRE |
2,026 | 14.53 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 14.1 CFM (0.395m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 16.0dB(A) | 840 mW | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
109P0412H302FAN AXIAL 40X28MM 12VDC WIRE |
2,739 | 13.71 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | - | 37.0dB(A) | 2.34 W | 8700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
|
109P0412M702FAN AXIAL 40X15MM 12VDC WIRE |
3,090 | 12.40 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 5.3 CFM (0.148m³/min) | 0.213 in H2O (53.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 1.14 W | 6500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.071 lb (32.21 g) |
|
MA2506H05C-RSRFAN AXIAL 25X6.1MM 5VDC WIRE |
1,440 | 15.25 |
|
Datasheet |
MA2506 | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 6.10mm | 2.1 CFM (0.059m³/min) | 0.130 in H2O (32.4 Pa) | 1 Ball/1 Sleeve | Tubeaxial | Thermal Overload Protector (TOP) | 25.5dB(A) | - | 10500 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.018 lb (8.16 g) |
|
OD6025-48HBFAN AXIAL 60X25MM 48VDC WIRE |
4,817 | 16.47 |
|
Datasheet |
OD6025 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 25.0 CFM (0.700m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart | 30.0dB(A) | 3.4 W | 3975 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.141 lb (63.96 g) |
|
FFB0412HHNFAN AXIAL 40X28MM 12VDC WIRE |
4,716 | 15.08 |
|
Datasheet |
FFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 13.2 CFM (0.370m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 1.32 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
AFB0612VHC-R00FAN AXIAL 60X13MM 12VDC WIRE |
3,963 | 14.58 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 13.00mm | 27.7 CFM (0.776m³/min) | 0.252 in H2O (62.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.0dB(A) | 2.88 W | 5400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.074 lb (33.56 g) |
|

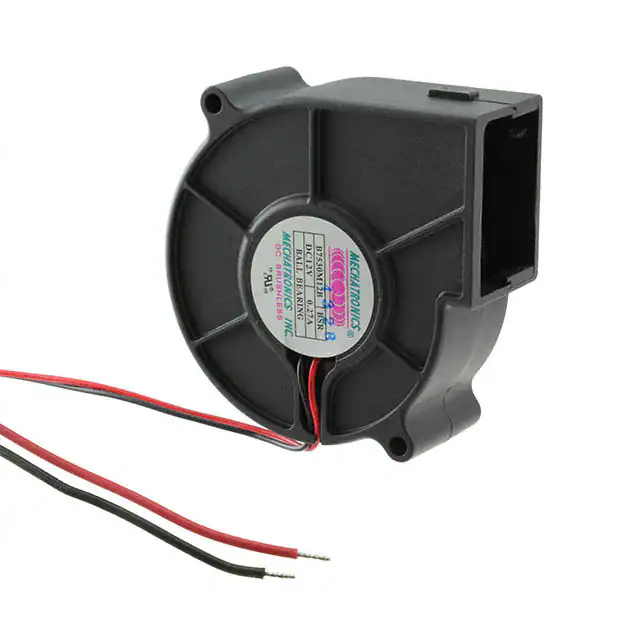

B7530M12B-BSRFAN BLOWER 76X30MM 12VDC WIRE |
3,696 | 15.80 |
|
Datasheet |
B7530 | Bulk | Active | 12VDC | Square/Rounded - 76mm L x 76mm H | 30.00mm | 10.6 CFM (0.297m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Blower | Thermal Overload Protector (TOP) | 38.0dB(A) | - | 3000 RPM | 2 Wire Leads | - | - | CE, cUL, UL | 0.192 lb (87.08 g) |
|
09225VA-24N-AA-00FAN AXIAL 92X25MM 24VDC WIRE |
4,318 | 16.51 |
|
Datasheet |
09225VA | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Auto Restart | 45.0dB(A) | 5.28 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

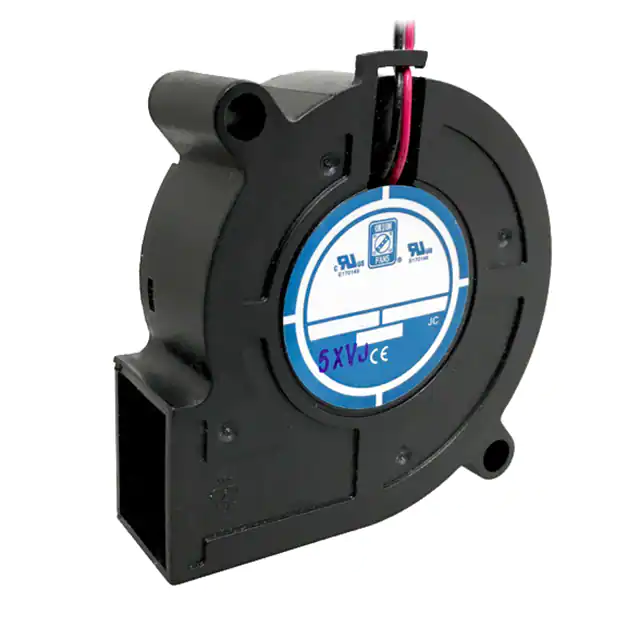

ODB5115-12HBFAN BLOWER 51.11X15MM 12VDC WIRE |
2,716 | 14.69 |
|
Datasheet |
ODB5115 | Bulk | Active | 12VDC | Rectangular/Rounded - 51.11mm L x 47.76mm H | 15.00mm | 4.2 CFM (0.118m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Blower | - | 38.0dB | 1.92 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | 0.059 lb (26.76 g) |
|
|
UF3H3-700TCFAN AXIAL 17X3MM VAPO 3VDC WIRE |
4,296 | 17.72 |
|
Datasheet |
MagLev® UF, Mighty Mini | Tray | Active | 3VDC | Square - 17mm L x 17mm H | 3.00mm | 0.575 CFM (0.016m³/min) | 0.085 in H2O (21.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 32.0dB(A) | 100 mW | 13000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
6025BF).jpg)
|
CFM-6025BF-190-479-22FAN AXIAL 60X25.4MM 12VDC WIRE |
1,744 | 17.74 |
|
Datasheet |
CFM-60BF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 43.1 CFM (1.21m³/min) | 0.720 in H2O (179.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 47.9dB(A) | 8.28 W | 9000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9GV3612P3J03FAN AXIAL 36X28MM 12VDC WIRE |
4,070 | 15.39 |
|
Datasheet |
San Ace 36 | Box | Active | 12VDC | Square - 36mm L x 36mm H | 28.00mm | 19.4 CFM (0.543m³/min) | 2.108 in H2O (525.1 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.5dB(A) | 9 W | 19000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.102 lb (46.27 g) |
|
9GA0612P7G01FAN AXIAL 60X15MM 12VDC WIRE |
3,670 | 16.65 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 24.0 CFM (0.672m³/min) | 0.319 in H2O (79.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.0dB(A) | 1.92 W | 5900 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
