DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
DB0973312M2B-2T0FAN BLOWER 97.2X33MM 12VDC WIRE |
4,931 | 0.00 |
|
Datasheet |
DB | Box | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.3mm H | 33.00mm | 28.7 CFM (0.804m³/min) | 1.150 in H2O (286.5 Pa) | Ball | Blower | Locked Rotor Protection | 52.0dB(A) | 7.92 W | 3200 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
|
DB0973312L2B-2T0FAN BLOWER 97.2X33MM 12VDC WIRE |
4,990 | 0.00 |
|
Datasheet |
DB | Box | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.3mm H | 33.00mm | 24.2 CFM (0.678m³/min) | 0.750 in H2O (186.8 Pa) | Ball | Blower | Locked Rotor Protection | 48.0dB(A) | 4.56 W | 2700 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
G1238L12B1-FSR-CCFAN AXIAL 119X38MM 12VDC WIRE |
1,155 | 15.88 |
|
Datasheet |
G1238 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 107.0 CFM (3.00m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Conformal Coating, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.0dB(A) | - | 2400 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|
VF38281B1-000U-A9HFAN AXIAL 38X28MM 12VDC WIRE |
1,807 | 10.06 |
|
Datasheet |
VF | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 18.9 CFM (0.529m³/min) | 2.360 in H2O (587.8 Pa) | Ball | Tubeaxial | Auto Restart | 58.1dB(A) | 5.7 W | 21600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.098 lb (44.45 g) |
|
|
VF38281BX-000U-A9HFAN AXIAL 38X28MM 12VDC WIRE |
4,569 | 10.06 |
|
Datasheet |
VF | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 24.2 CFM (0.678m³/min) | 3.560 in H2O (886.7 Pa) | Ball | Tubeaxial | Auto Restart | 61.6dB(A) | 10.44 W | 27000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.098 lb (44.45 g) |
|
VF40281B1-000U-A9HFAN AXIAL 40X28MM 12VDC WIRE |
4,423 | 10.06 |
|
Datasheet |
VF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 25.6 CFM (0.717m³/min) | 2.770 in H2O (690.0 Pa) | Ball | Tubeaxial | Auto Restart | 58.6dB(A) | 7.56 W | 21600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.102 lb (46.27 g) |
|
|
VF40281BX-000U-A9HFAN AXIAL 40X28MM 12VDC WIRE |
3,411 | 10.06 |
|
Datasheet |
VF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 31.5 CFM (0.882m³/min) | 3.950 in H2O (983.9 Pa) | Ball | Tubeaxial | Auto Restart | 63.7dB(A) | 13.68 W | 27000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.102 lb (46.27 g) |
|
614MFAN AXIAL 60X25.4MM 24VDC WIRE |
2,784 | 0.00 |
|
Datasheet |
600 | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 18.0 CFM (0.504m³/min) | - | Ball | Tubeaxial | - | 33.0dB(A) | 1.4 W | - | 2 Wire Leads | - | - | - | 0.19 lb (86.18 g) |
|
9WP0612G401FAN AXIAL 60X25MM 12VDC WIRE |
2,689 | 21.21 |
|
Datasheet |
San Ace 60W | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 2.52 W | 5600 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
AFB1224SHF-F00FAN AXIAL 120X32MM 24VDC WIRE |
4,094 | 17.42 |
|
Datasheet |
AFB | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 32.00mm | 174.5 CFM (4.89m³/min) | 0.656 in H2O (163.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 56.0dB(A) | 16.8 W | 4300 RPM | 3 Wire Leads | - | - | CE, CSA, UL, VDE | 0.609 lb (276.24 g) |
|
PEAD16025BH MF00PEAD16025BH MF00 |
3,404 | 0.00 |
|
- |
PE | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 42.8 CFM (1.20m³/min) | 0.970 in H2O (241.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 50.5dB(A) | 5.76 W | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UL | - |
|

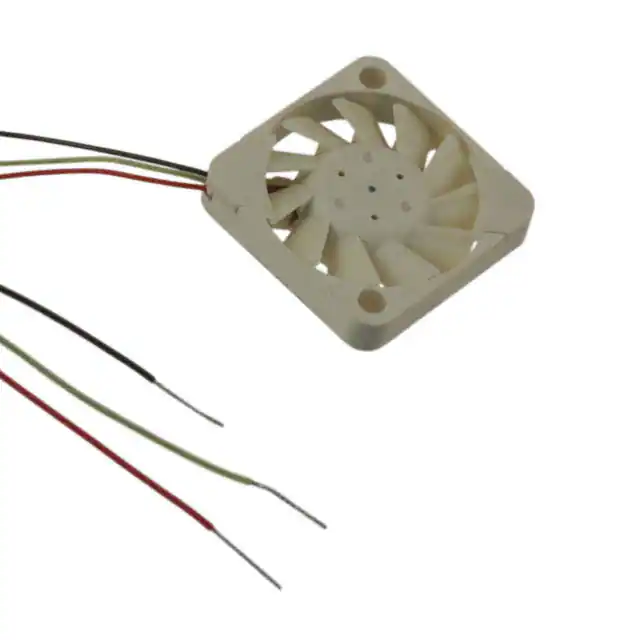

UF3H3-500FAN AXIAL 17X3MM VAPO 3VDC WIRE |
3,738 | 0.00 |
|
Datasheet |
MagLev® UF, Mighty Mini | Tray | Obsolete | 3VDC | Square - 17mm L x 17mm H | 3.00mm | 0.575 CFM (0.016m³/min) | 0.085 in H2O (21.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 100 mW | 13000 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
|

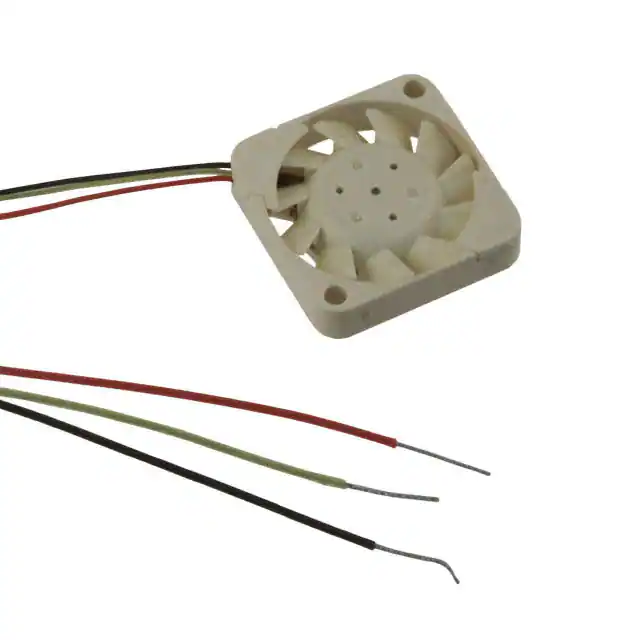

UF3F3-500FAN AXIAL 15X3MM VAPO 3VDC WIRE |
3,479 | 0.00 |
|
Datasheet |
MagLev® UF, Mighty Mini | Tray | Obsolete | 3VDC | Square - 15mm L x 15mm H | 3.00mm | 0.309 CFM (0.009m³/min) | 0.082 in H2O (20.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 100 mW | 14500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
|
GFB0412EHS-DF00FAN AXIAL DUAL 40X56MM 12VDC |
1,182 | 17.62 |
|
Datasheet |
GFB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 32.2 CFM (0.902m³/min) | 2.631 in H2O (655.4 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, Speed Sensor (Tach) | 64.5dB(A) | 15.6 W | 16000 Front, 15400 Rear | 3 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.183 lb (83.01 g) |
|
|
CFM-8025BG68-150-438DC AXIAL FAN, 80 MM SQUARE, 25 M |
2,474 | 0.00 |
|
Datasheet |
CFM-80BG68 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 53.1 CFM (1.49m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Auto Restart | 43.8dB(A) | 3.6 W | 5000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8025BG68-250-438DC AXIAL FAN, 80 MM SQUARE, 25 M |
3,822 | 0.00 |
|
Datasheet |
CFM-80BG68 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 53.1 CFM (1.49m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Auto Restart | 43.8dB(A) | 3.84 W | 5000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0602512U2B-3T3FAN 60X25MM 12VDC TACH MOLEX 22- |
2,689 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 43.8 CFM (1.23m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 56.0dB(A) | 5.4 W | 6800 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0602512V2B-3T3FAN 60X25MM 12VDC TACH MOLEX 22- |
4,979 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 47.8 CFM (1.34m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 63.0dB(A) | 5.76 W | 7500 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0602512W2B-3T3FAN 60X25MM 12VDC TACH MOLEX 22- |
3,829 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 55.2 CFM (1.55m³/min) | 1.170 in H2O (291.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 66.0dB(A) | 6.48 W | 9800 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
FFB1224EH-TZUKFAN AXIAL 120X25.4MM 24VDC WIRE |
3,211 | 17.49 |
|
Datasheet |
FFB | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 150.3 CFM (4.21m³/min) | 0.489 in H2O (121.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.4dB(A) | 15.12 W | 4000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
