DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD4028-48H3BDC FAN - 24V 40 X 40 X 28MM |
3,734 | 0.00 |
|
- |
OD4028 | Box | Active | 48VDC | Square - 40mm L x 40mm H | 28.00mm | 25.0 CFM (0.700m³/min) | 1.600 in H2O (398.6 Pa) | Ball | Tubeaxial | Auto Restart, Thermal Overload Protector (TOP) | 58.3dB(A) | 9.6 W | 14500 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UKCA, UR | - |
|
|
9GA0812G4001FAN AXIAL 80X25.2MM 12VDC WIRE |
4,339 | 16.46 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.20mm | 67.4 CFM (1.89m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 5.76 W | 6800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9GA0812G40011FAN AXIAL 80X25.2MM 12VDC WIRE |
1,490 | 16.46 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.20mm | 67.4 CFM (1.89m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 5.76 W | 6800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9GA0812G4D00180X25MM 12V,LOW POWER DC LCKRTRS |
1,436 | 0.00 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
DC0602524W2B-2T2FAN 60X25MM 24VDC MOLEX 22-01-10 |
1,711 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 55.2 CFM (1.55m³/min) | 1.170 in H2O (291.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 66.0dB(A) | 12.96 W | 9800 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0602524V2B-2T2FAN 60X25MM 24VDC MOLEX 22-01-10 |
3,248 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 47.8 CFM (1.34m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 63.0dB(A) | 11.52 W | 7500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0602524U2B-2T2FAN 60X25MM 24VDC MOLEX 22-01-10 |
2,105 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 43.8 CFM (1.23m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.0dB(A) | 10.8 W | 6800 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0602548W2B-2T2FAN 60X25MM 48VDC MOLEX 22-01-10 |
3,782 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 55.2 CFM (1.55m³/min) | 1.170 in H2O (291.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 66.0dB(A) | 25.92 W | 9800 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
PF38281B1-000U-A99FAN AXIAL 38X28MM 12VDC WIRE |
3,766 | 17.91 |
|
Datasheet |
PF | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 18.1 CFM (0.507m³/min) | 1.420 in H2O (353.7 Pa) | Ball | Tubeaxial | Auto Restart | 51.8dB(A) | 3.78 W | 16000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.091 lb (41.28 g) |
|
|
DC1203848M2B-3T0FAN 120X38MM 48VDC TACH |
3,595 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 101.4 CFM (2.84m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 13.44 W | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203848H2B-3T0FAN 120X38MM 48VDC TACH |
1,631 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 114.7 CFM (3.21m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 19.2 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
09238RA-12L-EA-00FAN AXIAL 92X38.4MM 12VDC WIRE |
4,369 | 17.42 |
|
Datasheet |
09238RA | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.40mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09238RA-12N-EAD-0FAN AXIAL 92X38MM 12VDC WIRE |
3,953 | 0.00 |
|
- |
09238RA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.890 in H2O (221.7 Pa) | Ball | Tubeaxial | Auto Restart | 59.0dB | 17.52 W | 6200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09238RA-24Q-EAD-0FAN AXIAL 92X38MM 24VDC WIRE |
1,658 | 0.00 |
|
- |
09238RA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 152.5 CFM (4.27m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Auto Restart | 62.5dB | 27.1 W | 7200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09238RA-12L-EAD-0FAN AXIAL 92X38MM 12VDC WIRE |
3,434 | 0.00 |
|
- |
09238RA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 103.8 CFM (2.91m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Auto Restart | 52.5dB | 9.6 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09238RA-12M-EAD-0FAN AXIAL 92X38MM 12VDC WIRE |
3,194 | 0.00 |
|
- |
09238RA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 118.6 CFM (3.32m³/min) | 0.750 in H2O (186.8 Pa) | Ball | Tubeaxial | Auto Restart | 56.5dB | 13.8 W | 5700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09238RA-24N-EAD-0FAN AXIAL 92X38MM 24VDC WIRE |
4,670 | 0.00 |
|
- |
09238RA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 141.2 CFM (3.95m³/min) | 1.020 in H2O (255.0 Pa) | Ball | Tubeaxial | Auto Restart | 59.0dB | 17.04 W | 6200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09238RA-24M-EAD-0FAN AXIAL 92X38MM 24VDC WIRE |
4,769 | 0.00 |
|
- |
09238RA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 118.6 CFM (3.32m³/min) | 0.750 in H2O (186.8 Pa) | Ball | Tubeaxial | Auto Restart | 57.0dB | 13.4 W | 5700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

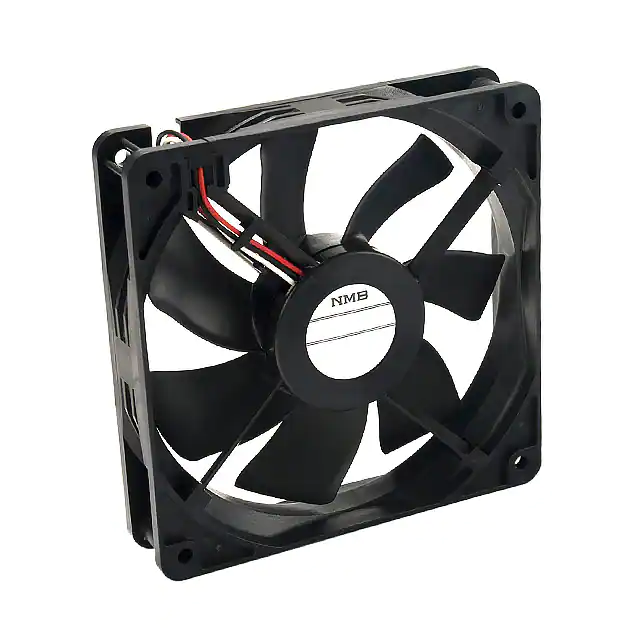

11925SA-24Q-AL-00FAN AXIAL 119X25MM 24VDC WIRE |
1,269 | 15.35 |
|
Datasheet |
11925SA | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 113.1 CFM (3.17m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 44.0dB | 4.8 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.309 lb (140.16 g) |
|
|
9S1212P4L011FAN AXIAL 120X25MM 12VDC WIRE |
4,835 | 16.18 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 48.1 CFM (1.35m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 36.0dB(A) | 960 mW | 1500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.309 lb (140.16 g) |
