DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0803812M2B-3T0FAN AXIAL 80X38MM 12VDC WIRE |
4,870 | 17.54 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 79.0 CFM (2.21m³/min) | 0.760 in H2O (189.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 9.12 W | 5600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.463 lb (210.01 g) |
|
|
DC0803812H2B-3T0FAN AXIAL 80X38MM 12VDC WIRE |
4,843 | 15.63 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 84.8 CFM (2.37m³/min) | 0.890 in H2O (221.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 56.0dB(A) | 12 W | 6100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.463 lb (210.01 g) |
|
|
DC0803812U2B-3T0FAN AXIAL 80X38MM 12VDC WIRE |
4,605 | 15.63 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 105.5 CFM (2.95m³/min) | 1.360 in H2O (338.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 62.0dB(A) | 18 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.463 lb (210.01 g) |
|
DC0803824U2B-2T0FAN 80X38MM 24VDC |
3,499 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 105.5 CFM (2.95m³/min) | 1.360 in H2O (338.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 62.0dB(A) | 36 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0803824H2B-2T0FAN 80X38MM 24VDC |
2,679 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 84.8 CFM (2.37m³/min) | 0.890 in H2O (221.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.0dB(A) | 24 W | 6100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203824M2B-2T2FAN 120X38MM 24VDC MOLEX 22-01-1 |
1,901 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 101.4 CFM (2.84m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 38.0dB(A) | 6.72 W | 2300 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203824H2B-2T2FAN 120X38MM 24VDC MOLEX 22-01-1 |
4,467 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 114.7 CFM (3.21m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 9.6 W | 2600 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
DC1203812U2B-2T0FAN AXIAL 120X38MM 12VDC WIRE |
3,631 | 19.53 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 178.4 CFM (5.00m³/min) | 0.940 in H2O (234.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 18.6 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.508 lb (230.42 g) |
|
|
DC1203812V2B-2T0FAN AXIAL 120X38MM 12VDC WIRE |
3,756 | 20.83 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 190.5 CFM (5.33m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.0dB(A) | 18 W | 4100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.508 lb (230.42 g) |
|
G1225M24B1-FSR-EMFAN AXIAL 120X25MM 24VDC WIRE |
2,888 | 17.32 |
|
Datasheet |
G1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 78.0 CFM (2.18m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 33.0dB(A) | - | 2100 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.434 lb (196.86 g) |
|
OD1238-12HBIP55FAN AXIAL 120X38MM 12VDC WIRE |
2,174 | 17.50 |
|
Datasheet |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | Tubeaxial | Auto Restart | 44.1dB(A) | 6 W | 2895 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.572 lb (259.45 g) |
|
|
9G0948G102FAN AXIAL 92X38MM 48VDC WIRE |
1,204 | 17.00 |
|
Datasheet |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 110.0 CFM (3.08m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | - | 50.0dB(A) | 12.96 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.397 lb (180.08 g) |
|
|
9G0948G1021FAN AXIAL 92X38MM 48VDC WIRE |
2,500 | 17.00 |
|
Datasheet |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 110.0 CFM (3.08m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 50.0dB(A) | 12.96 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.397 lb (180.08 g) |
|
|
9G0948H102FAN AXIAL 92X38MM 48VDC WIRE |
3,886 | 17.00 |
|
Datasheet |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 90.0 CFM (2.52m³/min) | 0.402 in H2O (100.1 Pa) | Ball | Tubeaxial | - | 43.0dB(A) | 7.68 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.397 lb (180.08 g) |
|
|
06038DA-12S-ETD-0FAN AXIAL 60X38MM 12VDC WIRE |
2,932 | 0.00 |
|
- |
06038DA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 66.4 CFM (1.86m³/min) | 3.710 in H2O (924.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 63.5dB(A) | 19.8 W | 17000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06038DA-12Q-ETD-0FAN AXIAL 60X38MM 12VDC WIRE |
2,004 | 0.00 |
|
- |
06038DA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 50.2 CFM (1.41m³/min) | 2.310 in H2O (575.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 58.0dB(A) | 9.4 W | 13000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06038DA-12N-ELE-0FAN AXIAL 60X38MM 12VDC WIRE |
4,222 | 0.00 |
|
- |
06038DA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | - | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

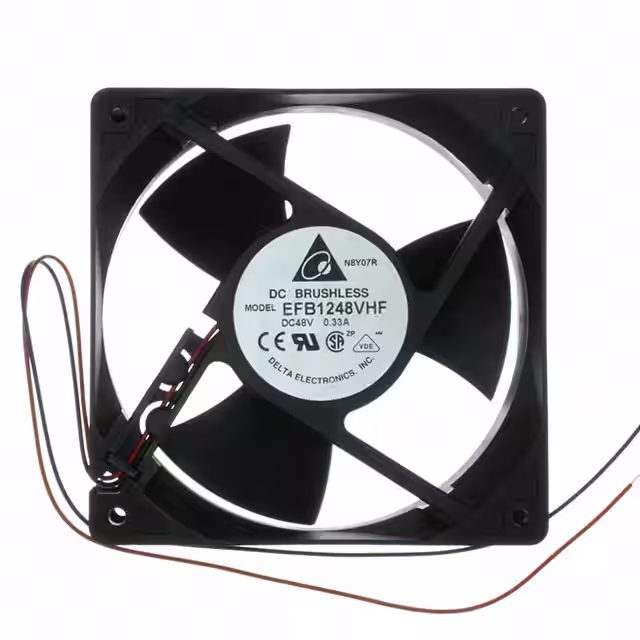

EFB1248VHFFAN AXIAL 120X32MM 48VDC WIRE |
2,101 | 0.00 |
|
Datasheet |
EFB | Tray | Obsolete | 48VDC | Square - 120mm L x 120mm H | 32.00mm | 139.8 CFM (3.91m³/min) | 0.563 in H2O (140.2 Pa) | Ball | Tubeaxial | - | - | 10.6 W | 4400 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.551 lb (249.93 g) |
|
|
DB0973312V2B-2T0FAN BLOWER 97.2X33MM 12VDC WIRE |
4,838 | 0.00 |
|
Datasheet |
DB | Box | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.3mm H | 33.00mm | 45.6 CFM (1.28m³/min) | 2.900 in H2O (722.4 Pa) | Ball | Blower | Locked Rotor Protection | 63.0dB(A) | 22.8 W | 5000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
|
DB0973312U2B-2T0FAN BLOWER 97.2X33MM 12VDC WIRE |
4,889 | 0.00 |
|
Datasheet |
DB | Box | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.3mm H | 33.00mm | 38.6 CFM (1.08m³/min) | 1.990 in H2O (495.7 Pa) | Ball | Blower | Locked Rotor Protection | 59.0dB(A) | 18.6 W | 4200 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
