DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD3510-12MB02AFAN AXIAL 35X10MM 12VDC WIRE |
1,023 | 15.69 |
|
Datasheet |
OD3510 | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 5.1 CFM (0.143m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | - | - |
|
BFB0505HA-CFAN BLOWER 50X10.3MM 5VDC WIRE |
494 | 14.76 |
|
Datasheet |
BFB | Box | Active | 5VDC | Square - 50mm L x 50mm H | 10.30mm | 3.5 CFM (0.098m³/min) | 0.563 in H2O (140.2 Pa) | Ball | Blower | Locked Rotor Protection | 32.5dB(A) | 900 mW | 5100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.05 lb (22.68 g) |
|
109P0424F601FAN AXIAL 40X20MM 24VDC WIRE |
406 | 12.54 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 6.5 CFM (0.182m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.0dB(A) | 1.44 W | 6500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
|
109R0805F402FAN AXIAL 80X25MM BALL 5VDC WIRE |
274 | 14.04 |
|
Datasheet |
San Ace 80 | Box | Active | 5VDC | Square - 80mm L x 80mm H | 25.00mm | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 26.0dB(A) | 1.25 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

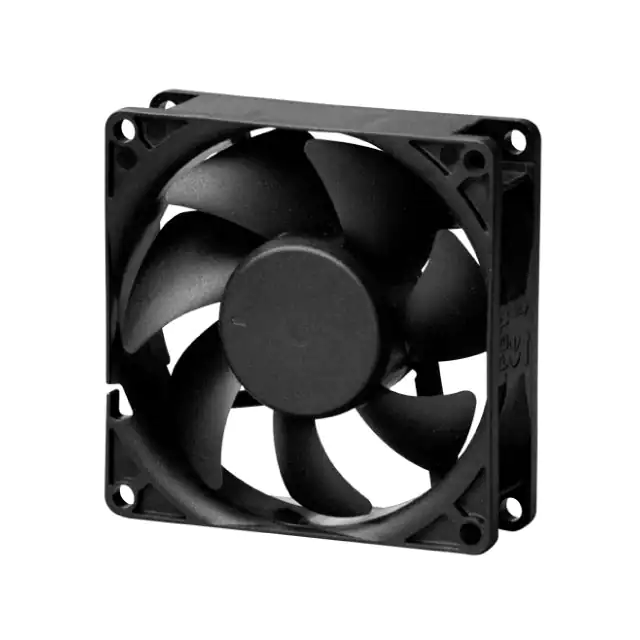

PF80251V3-1000U-F99FAN AXIAL 80X25MM 12VDC WIRE |
2,962 | 9.81 |
|
Datasheet |
MagLev® PF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 41.5dB(A) | 2.4 W | 4200 RPM | 3 Wire Leads | - | - | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|
MR4020E12B1+6-RSRFAN AXIAL 40X20MM 12VDC WIRE |
952 | 14.97 |
|
Datasheet |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 15.8 CFM (0.442m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 39.1dB(A) | - | 11000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
|
MR4020E24B1+6-RSRFAN AXIAL 40X20MM 24VDC WIRE |
349 | 14.97 |
|
Datasheet |
MR4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 15.8 CFM (0.442m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 39.1dB(A) | - | 11000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
AFB0624VHC-F00FAN AXIAL 60X13MM 24VDC WIRE |
2,731 | 16.40 |
|
Datasheet |
AFB | Box | Active | 24VDC | Square - 60mm L x 60mm H | 13.00mm | 27.7 CFM (0.776m³/min) | 0.252 in H2O (62.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 2.88 W | 5400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.074 lb (33.56 g) |
|

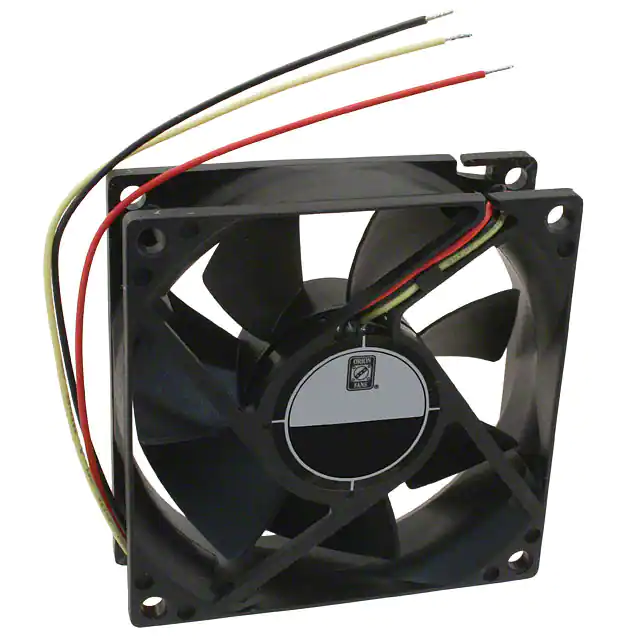

OD8025-24HB02AFAN AXIAL 80X25MM 24VDC WIRE |
2,964 | 16.06 |
|
Datasheet |
OD8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 35.0dB | 1.44 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | 0.191 lb (86.64 g) |
|
9GA0624H6001FAN AXIAL 60X20MM 24VDC WIRE |
2,046 | 18.62 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 18.4 CFM (0.515m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 29.0dB(A) | 960 mW | 4100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.154 lb (69.85 g) |
|
F6025E24B-RHR-EMFAN AXIAL 60X25MM 24VDC WIRE |
129 | 15.06 |
|
Datasheet |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 37.0dB(A) | - | 5000 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
F6025X12B2-RHR-EMFAN AXIAL 60X25MM 12VDC WIRE |
107 | 15.35 |
|
Datasheet |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
109R0824S402FAN AXIAL 80X25MM 24VDC WIRE |
321 | 14.36 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 2.4 W | 3400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
AFB0912H-F00FAN AXIAL 92X25.4MM 12VDC WIRE |
1,999 | 15.02 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 51.2 CFM (1.43m³/min) | 0.177 in H2O (44.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 1.92 W | 2850 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.219 lb (99.34 g) |
|

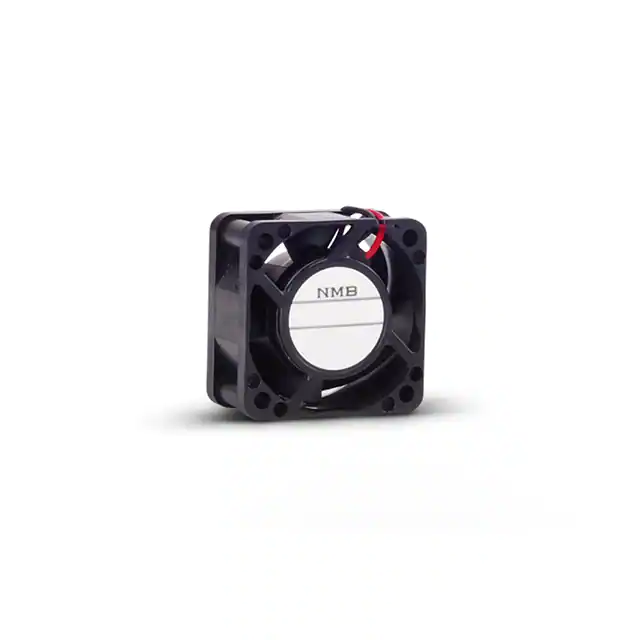

04020VE-24Q-CT-00FAN AXIAL 40X20MM 24VDC WIRE |
548 | 15.91 |
|
Datasheet |
04020VE | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 12.4 CFM (0.347m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 42.0dB(A) | 2.64 W | 11000 RPM | 3 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cULus, VDE | - |
|

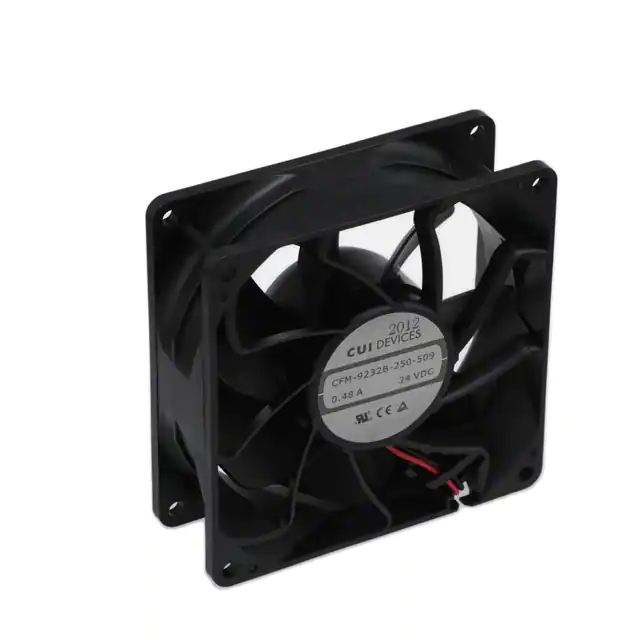

CFM-9232B-250-509FAN AXIAL 92.2X32MM 24VDC WIRE |
687 | 16.63 |
|
Datasheet |
CFM-92B | Box | Active | 24VDC | Square - 92.2mm L x 92.2mm H | 32.00mm | 105.8 CFM (2.96m³/min) | 0.620 in H2O (154.4 Pa) | Ball | Tubeaxial | Auto Restart | 51.0dB(A) | 12.72 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
109R0624G401FAN AXIAL 60X25MM 24VDC WIRE |
193 | 14.36 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 3.12 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
E1225H24B-FSRFAN AXIAL 120X25MM 24VDC WIRE |
687 | 15.52 |
|
Datasheet |
E1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 82.0 CFM (2.30m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 40.0dB(A) | - | 2600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.434 lb (196.86 g) |
|
9G0824G1011FAN AXIAL 80X38MM 24VDC WIRE |
1,741 | 20.05 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 90.0 CFM (2.52m³/min) | 0.847 in H2O (211.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 13.4 W | 6300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
109R0624S402FAN AXIAL 60X25MM 24VDC WIRE |
712 | 14.04 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 1.92 W | 4600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
