DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109R0612G4011FAN AXIAL 60X25MM 12VDC WIRE |
107 | 14.36 |
|
Datasheet |
San Ace 60 | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 2.88 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
AFB0605HC-F00FAN AXIAL 60X13MM BALL 5VDC WIRE |
267 | 9.24 |
|
Datasheet |
AFB | Box | Active | 5VDC | Square - 60mm L x 60mm H | 13.00mm | 21.2 CFM (0.594m³/min) | 0.163 in H2O (40.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.5dB(A) | 1.45 W | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.074 lb (33.56 g) |
|
B7530E24B-BSRFAN BLOWER 76X30MM 24VDC WIRE |
259 | 15.80 |
|
Datasheet |
B7530 | Bulk | Active | 24VDC | Square/Rounded - 76mm L x 76mm H | 30.00mm | 13.5 CFM (0.378m³/min) | 0.710 in H2O (176.9 Pa) | Ball | Blower | Thermal Overload Protector (TOP) | 45.0dB(A) | - | 3800 RPM | 2 Wire Leads | - | - | CE, cUL, UL | 0.192 lb (87.08 g) |
|

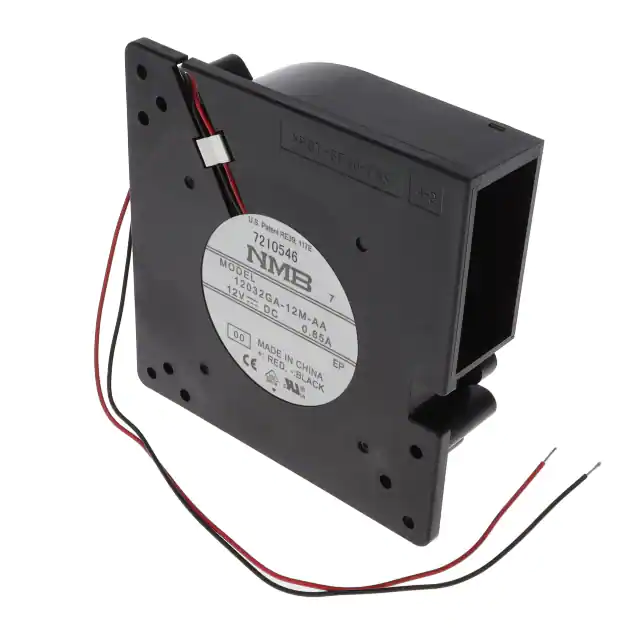

12032GA-12M-AA-00FAN BLOWER 120X32MM 12VDC WIRE |
4,918 | 25.00 |
|
Datasheet |
12032GA | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 28.2 CFM (0.790m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Blower | Auto Restart | 48.5dB | 7.8 W | 2250 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
AFB0812SHFAN AXIAL 80X25.4MM 12VDC WIRE |
107 | 13.91 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 46.6 CFM (1.30m³/min) | 0.267 in H2O (66.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.0dB(A) | 4.08 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
G8015X12B-AGR-EMFAN AXIAL 80X15.3MM 12VDC WIRE |
119 | 15.99 |
|
Datasheet |
G8015-G | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.30mm | 43.0 CFM (1.20m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 40.0dB(A) | - | 4800 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.128 lb (58.06 g) |
|
AFB0512HB-TP41FAN AXIAL 50X15MM 12VDC WIRE |
2,804 | 15.50 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 18.0 CFM (0.504m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 34.0dB(A) | 1.44 W | 6300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.045 lb (20.41 g) |
|
9A0824S4021FAN AXIAL 80X25MM 24VDC WIRE |
105 | 12.73 |
|
Datasheet |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 2.4 W | 3400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
AFB0724VH-AF00FAN AXIAL 70X25.4MM 24VDC WIRE |
2,186 | 14.97 |
|
Datasheet |
AFB | Box | Active | 24VDC | Square - 70mm L x 70mm H | 25.40mm | 52.0 CFM (1.46m³/min) | 0.433 in H2O (107.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.5dB(A) | 6.48 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.199 lb (90.26 g) |
|
OD8032-12HBFAN AXIAL 80.5X32MM 12VDC WIRE |
354 | 16.47 |
|
Datasheet |
OD8032 | Box | Active | 12VDC | Square - 80.5mm L x 80.5mm H | 32.00mm | 50.0 CFM (1.40m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | - | 40.0dB | - | 3800 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|

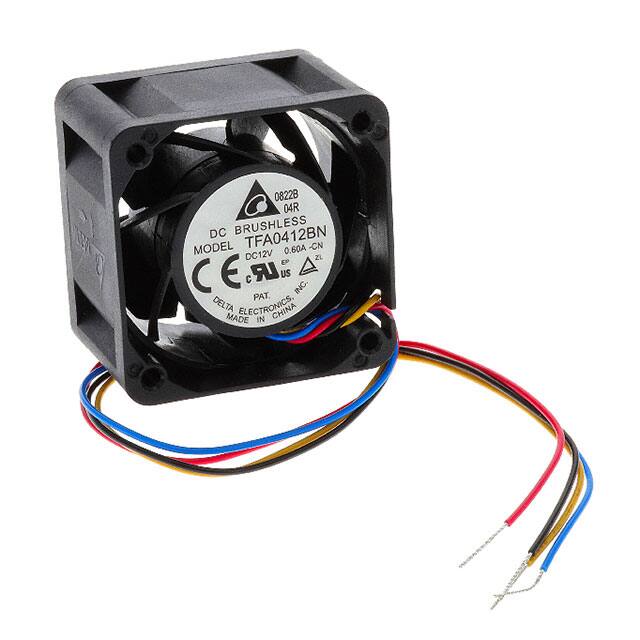

TFA0412BN-CNFAN AXIAL 40X28MM 12VDC WIRE |
5,643 | 18.64 |
|
Datasheet |
TFA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 22.2 CFM (0.622m³/min) | 1.617 in H2O (402.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.8dB(A) | 5.04 W | 15600 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.104 lb (47.17 g) |
|
CFM-8025BG-160-484-22FAN AXIAL 80X25.4MM 12VDC WIRE |
507 | 17.30 |
|
Datasheet |
CFM-80BG | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 62.1 CFM (1.74m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 48.4dB(A) | 6.72 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
MEC0252V3-000U-A99FAN AXIAL 120X25MM 24VDC WIRE |
210 | 11.75 |
|
Datasheet |
MagLev® MEC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 34.0dB(A) | 2 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.359 lb (162.84 g) |
|
|
CBM-7530BF-160-540DC BLOWER, 75.7 X 75.7 X 30 MM, |
134 | 0.00 |
|
Datasheet |
CBM-75BF | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 20.1 CFM (0.563m³/min) | 1.600 in H2O (398.6 Pa) | Ball | Blower | Auto Restart | 58.0dB(A) | 11.64 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
109R0624J402FAN AXIAL 60X25MM 24VDC WIRE |
869 | 15.19 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 5.76 W | 7600 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
109R0812G402FAN AXIAL 80X25MM 12VDC WIRE |
184 | 14.36 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.0dB(A) | 4.44 W | 4500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
MR9238M24B-FSRFAN AXIAL 92X38MM 24VDC WIRE |
243 | 15.80 |
|
Datasheet |
MR9238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 131.0 CFM (3.67m³/min) | 0.880 in H2O (219.2 Pa) | Ball | Tubeaxial | Auto Restart | 55.4dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
|

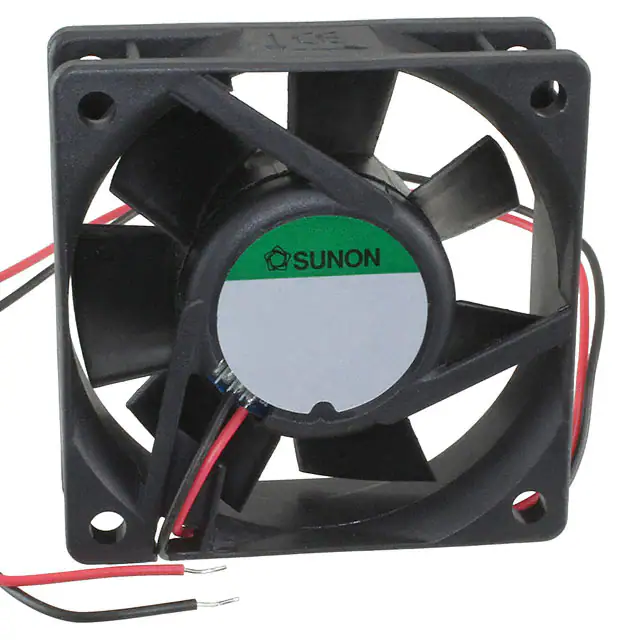

PE60201B1-000U-A99FAN AXIAL 60X20MM 12VDC WIRE |
539 | 13.31 |
|
Datasheet |
MagLev® PE | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 27.5 CFM (0.770m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Auto Restart | 39.0dB(A) | 2.3 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.115 lb (52.16 g) |
|
|
DC0402024V2B-BT0FAN 40X20MM 24VDC PWM/TACH |
416 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 19.8 CFM (0.554m³/min) | 1.440 in H2O (358.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 9.84 W | 16000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
BFB0724HFAN BLOWER 75.7X30MM 24VDC WIRE |
3,043 | 19.10 |
|
Datasheet |
BFB | Bulk | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 11.3 CFM (0.316m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Blower | Locked Rotor Protection | 38.0dB(A) | 2.88 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.211 lb (95.71 g) |
