DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

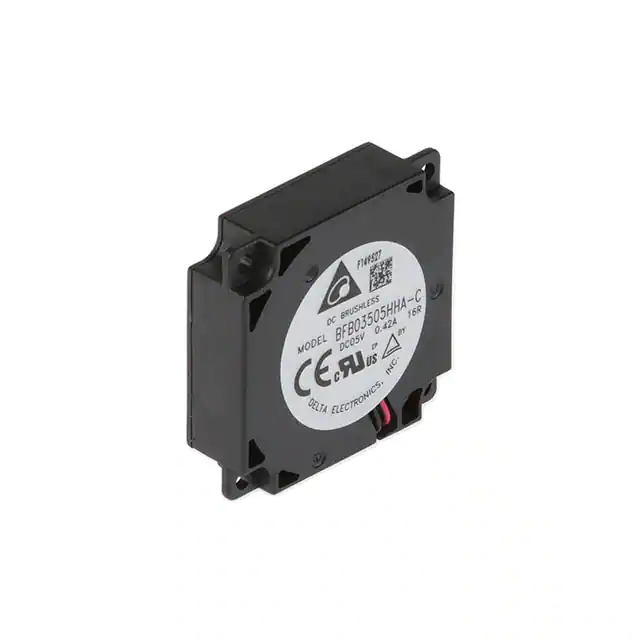

BFB03505HHA-C16RFAN BLOWER 35X10MM 5VDC |
1,268 | 14.27 |
|
Datasheet |
BFB | Box | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 2.1 CFM (0.059m³/min) | 0.443 in H2O (110.3 Pa) | Ball | Blower | Locked Rotor Protection | 31.0dB(A) | 1.15 W | 8500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.025 lb (11.34 g) |
|

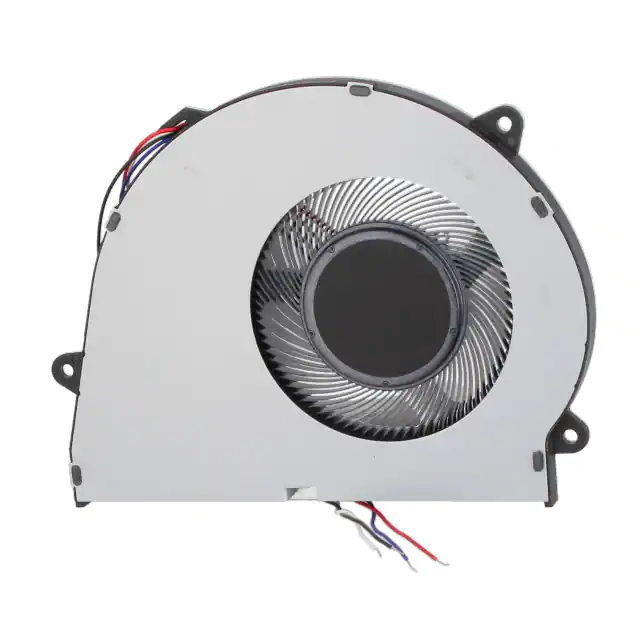

DB0870605H1A-BT0FAN BLOWER 74.5X5.52MM 5VDC WIRE |
196 | 14.59 |
|
Datasheet |
Slim-Line | Bulk | Active | 5VDC | Rectangular/Rounded - 74.5mm L x 90mm H | 5.52mm | 5.7 CFM (0.160m³/min) | 0.624 in H2O (155.4 Pa) | Ball | Blower | PWM Control, Speed Sensor (Tach) | 41.9dB(A) | 2.5 W | 4600 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | - | 0.102 lb (46.27 g) |
|
MR3010L12B-RSRFAN AXIAL 30X10MM 12VDC WIRE |
240 | 13.86 |
|
Datasheet |
MR3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 4.1 CFM (0.115m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart | 20.5dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
|
CFM-A225V-231-445-20FAN AXIAL 120X25MM 24VDC WIRE |
2,368 | 14.91 |
|
Datasheet |
CFM-120V | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.5dB(A) | 5.71 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.357 lb (161.93 g) |
|
AFB0924VHD-F00FAN AXIAL 92X20MM 24VDC WIRE |
119 | 14.37 |
|
Datasheet |
AFB | Box | Not For New Designs | 24VDC | Square - 92mm L x 92mm H | 20.00mm | 66.1 CFM (1.85m³/min) | 0.198 in H2O (49.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.5dB(A) | 3.84 W | 3300 RPM | 3 Wire Leads | - | - | CE, CSA, UL, VDE | 0.203 lb (92.08 g) |
|

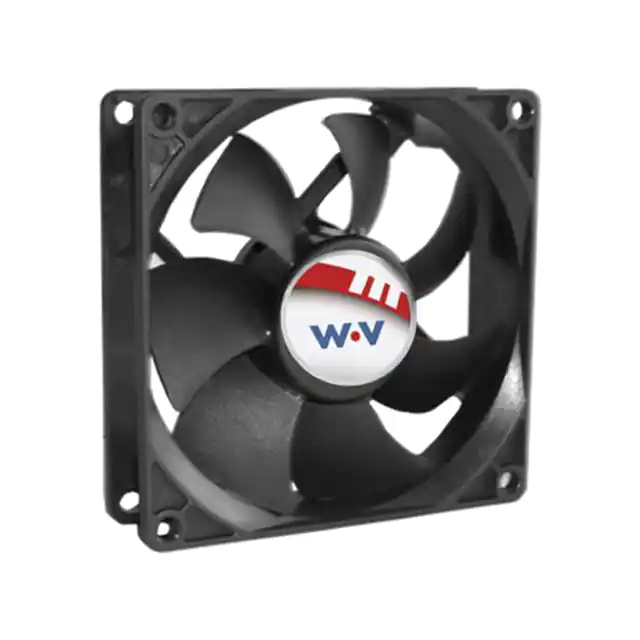

DC0922512V2B-2T0FAN AXIAL 92X25MM 12VDC WIRE |
278 | 12.91 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 81.0 CFM (2.27m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 49.0dB(A) | 4.92 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

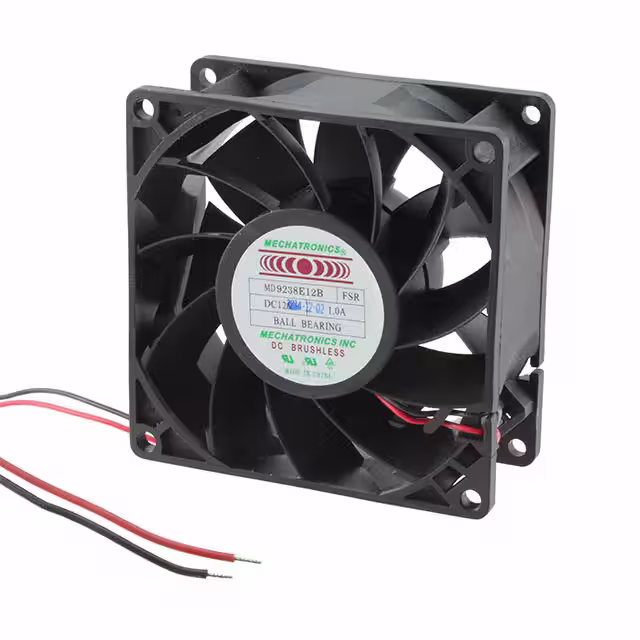

MD9238E12B-FSRFAN AXIAL 92X38MM 12VDC WIRE |
103 | 17.74 |
|
Datasheet |
MD9238 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 110.6 CFM (3.10m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 55.0dB(A) | - | 4800 RPM | 2 Wire Leads | - | - | CE, TUV, UL | 0.397 lb (180.08 g) |
|
109P0805M702FAN AXIAL 80X15MM BALL 5VDC WIRE |
109 | 12.95 |
|
Datasheet |
San Ace 80 | Box | Active | 5VDC | Square - 80mm L x 80mm H | 15.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | 21.0dB(A) | - | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.15 lb (68.04 g) |
|
MS2006E12D-RSRFAN AXIAL 20X6.5MM 12VDC WIRE |
1,166 | 13.77 |
|
Datasheet |
MS2006 | Box | Active | 12VDC | Square - 20mm L x 20mm H | 6.50mm | 1.1 CFM (0.031m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | - | 31.0dB(A) | - | 12000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.007 lb (3.18 g) |
|
CFM-8025BG-240-396FAN AXIAL 80X25.4MM 24VDC WIRE |
160 | 15.04 |
|
Datasheet |
CFM-80BG | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 41.3 CFM (1.16m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart | 39.6dB(A) | 3.6 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
109P0424H3023FAN AXIAL 40X28MM 24VDC WIRE |
238 | 13.71 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 11.3 CFM (0.316m³/min) | 0.414 in H2O (102.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 2.28 W | 8700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|

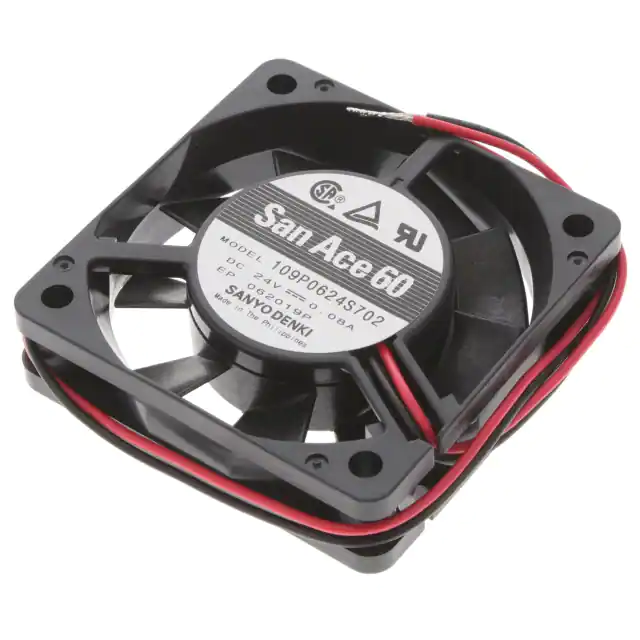

109P0624S702FAN AXIAL 60X15MM 24VDC WIRE |
138 | 13.71 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 16.9 CFM (0.473m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 1.92 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
109P0424B302FAN AXIAL 40X28MM 24VDC WIRE |
122 | 13.71 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | 40.0dB(A) | 3.12 W | 10300 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
|
109P0412H3023FAN AXIAL 40X28MM 12VDC WIRE |
114 | 13.71 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 11.3 CFM (0.316m³/min) | 0.414 in H2O (102.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 2.34 W | 8700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
|
CFM-A225V-131-445FAN AXIAL 120X25MM 12VDC WIRE |
2,081 | 15.15 |
|
Datasheet |
CFM-120V | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 44.5dB(A) | 4.84 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.359 lb (162.84 g) |
|
9A0924S402FAN AXIAL 92X25MM 24VDC WIRE |
709 | 12.73 |
|
Datasheet |
San Cooler 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 58.6 CFM (1.64m³/min) | 0.225 in H2O (56.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 3.6 W | 3550 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
9S0812F401FAN AXIAL 80X25MM 12VDC WIRE |
238 | 12.34 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 32.8 CFM (0.918m³/min) | 0.143 in H2O (35.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 1.32 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|
|
9S0812F4011FAN AXIAL 80X25MM 12VDC WIRE |
187 | 12.34 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 32.8 CFM (0.918m³/min) | 0.143 in H2O (35.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 1.32 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|
|
9S0812L401FAN AXIAL 80X25MM 12VDC WIRE |
154 | 12.34 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.073 in H2O (18.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 16.0dB(A) | 600 mW | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|

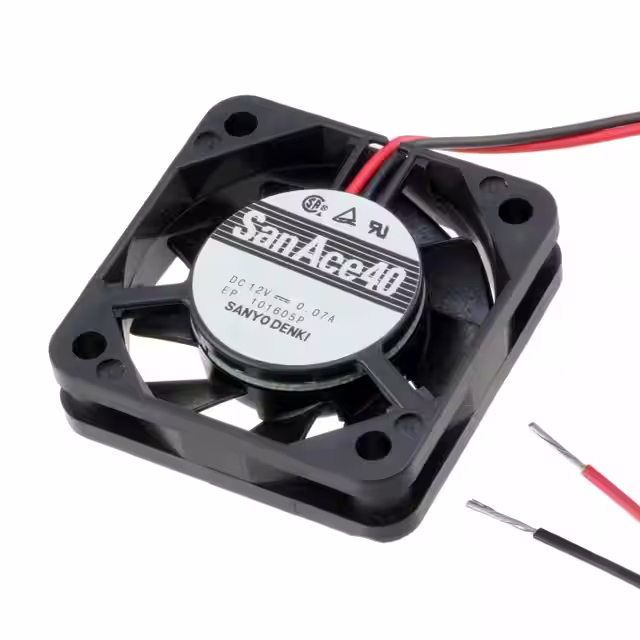

109P0412H902FAN AXIAL 40X10MM 12VDC WIRE |
150 | 14.51 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.148m³/min) | 0.165 in H2O (41.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 840 mW | 6200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.042 lb (19.05 g) |
