DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GV1212P4G011FAN AXIAL 119X25.4MM 12VDC WIRE |
111 | 45.03 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.40mm | 171.0 CFM (4.79m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 20.16 W | 5100 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
|

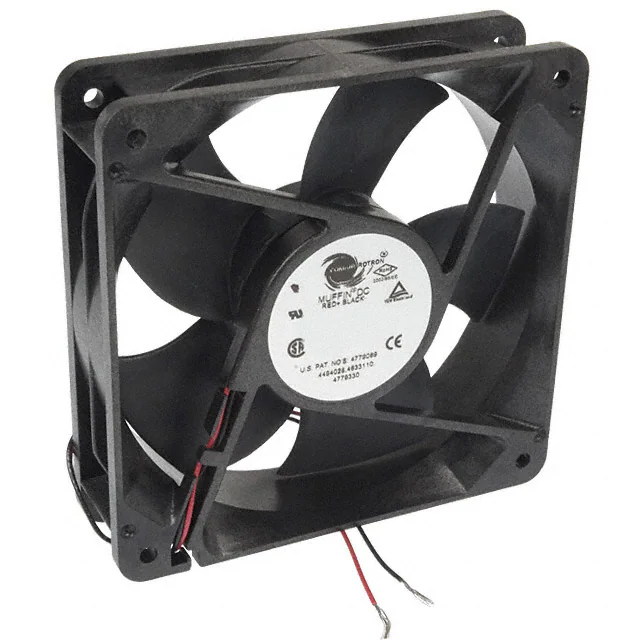

19032489AFAN AXIAL 120X32MM 12VDC MC12B3 |
266 | 48.62 |
|
Datasheet |
Muffin | Box | Active | 12VDC | Square - 120mm L x 120mm H | 32.00mm | 102.0 CFM (2.86m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 47.8dB(A) | 7.9 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 0.529 lb (239.95 g) |
|
19028867AFAN AXIAL 119.1X39.1MM MD48B1 |
121 | 50.56 |
|
Datasheet |
Muffin XL | Bulk | Active | 48VDC | Square - 119.13mm L x 119.13mm H | 39.12mm | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 50.0dB(A) | 5.8 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.4 lbs (635.0 g) |
|
W2G115-AE53-13FAN AXIAL 127X38MM 12VDC TERM |
126 | 82.91 |
|
Datasheet |
W2G115 | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 130.0 CFM (3.64m³/min) | - | Ball | Tubeaxial | - | 48.0dB(A) | 5.9 W | - | 2 Terminals | - | - | - | 1.6 lbs (725.7 g) |
|

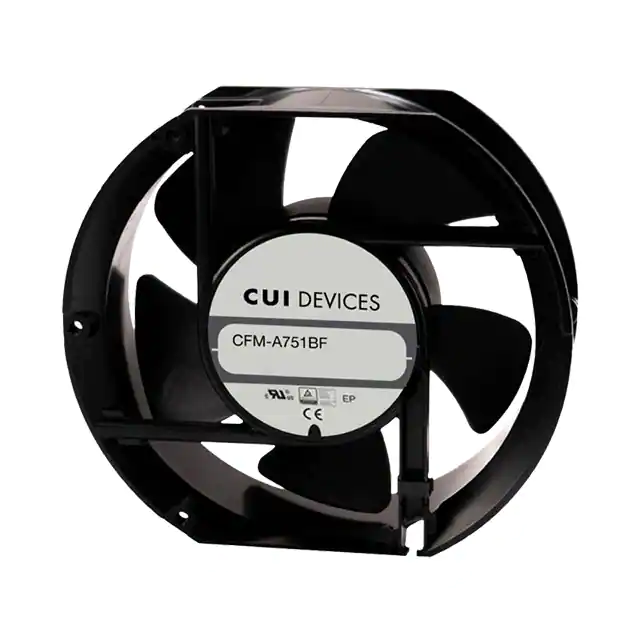

CFM-A751BF-253-623FAN AXIAL 172X51.5MM 24VDC WIRE |
185 | 65.32 |
|
Datasheet |
CFM-A7BF | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 151.5mm H | 51.50mm | 382.7 CFM (10.72m³/min) | 1.480 in H2O (368.7 Pa) | Ball | Tubeaxial | Auto Restart | 62.3dB(A) | 83.5 W | 5300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-A751BF-245-588-20FAN AXIAL 172X51.5MM 24VDC WIRE |
160 | 65.57 |
|
Datasheet |
CFM-A7BF | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 151.5mm H | 51.50mm | 324.9 CFM (9.10m³/min) | 1.070 in H2O (266.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 58.8dB(A) | 51.84 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
PFB1212UHEFAN AXIAL 120X38MM 12VDC WIRE |
1,021 | 48.38 |
|
Datasheet |
PFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 252.9 CFM (7.08m³/min) | 1.412 in H2O (351.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 66.5dB(A) | 48 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
|
|
CFM-A751BF-225-460-20FAN AXIAL 172X51.5MM 24VDC WIRE |
225 | 63.29 |
|
Datasheet |
CFM-A7BF | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 151.5mm H | 51.50mm | 180.5 CFM (5.11m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 46.0dB(A) | 12 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
4412LFAN AXIAL 119X38MM 12VDC WIRE |
4,221 | 8.60 |
|
Datasheet |
4400 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 88.4 CFM (2.47m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 2.2 W | 2700 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | - | 0.553 lb (250.84 g) |
|
4412NFAN AXIAL 119X38MM 12VDC WIRE |
3,937 | 49.73 |
|
Datasheet |
4400 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 120.7 CFM (3.38m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 5.3 W | 3650 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.553 lb (250.84 g) |
|
9GV1524M501FAN AXIAL 150X50MM 24VDC WIRE |
1,073 | 44.92 |
|
Datasheet |
San Ace 150 | Box | Active | 24VDC | Square - 150mm L x 150mm H | 50.00mm | 224.0 CFM (6.27m³/min) | 0.533 in H2O (132.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 14.4 W | 3000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.993 lb (450.42 g) |
|

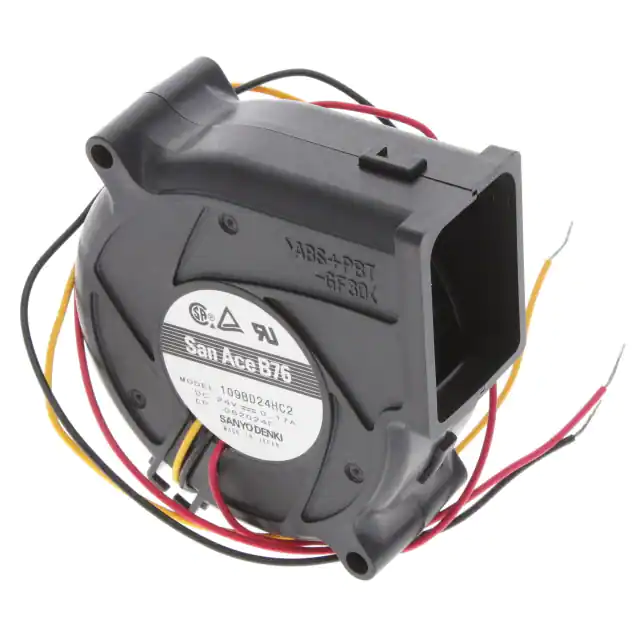

109BD24HC2FAN BLOWER 76X30MM 24VDC WIRE |
752 | 40.25 |
|
Datasheet |
San Ace B76 | Box | Active | 24VDC | Square/Rounded - 76mm L x 75.5mm H | 30.00mm | 12.7 CFM (0.356m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 41.5dB(A) | 4.08 W | 3000 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
109BD24FC2FAN BLOWER 76X30MM 24VDC WIRE |
2,263 | 40.25 |
|
Datasheet |
San Ace B76 | Box | Active | 24VDC | Square/Rounded - 76mm L x 75.5mm H | 30.00mm | 10.9 CFM (0.305m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 3.36 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
3312NHHFAN AXIAL 92X32MM 12VDC WIRE |
1,172 | 57.07 |
|
Datasheet |
3300N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 62.9 CFM (1.76m³/min) | - | Ball | Tubeaxial | - | 42.0dB(A) | 3.4 W | 3450 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | UL | 0.419 lb (190.06 g) |
|
8314HLFAN AXIAL 80X32MM 24VDC WIRE |
3,443 | 54.60 |
|
Datasheet |
8300 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 39.4 CFM (1.10m³/min) | - | Ball | Tubeaxial | - | 43.0dB(A) | 4.3 W | 4200 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
9WPA0424H6001FAN AXIAL 40X20MM 24VDC WIRE |
3,264 | 50.86 |
|
Datasheet |
San Ace 40W | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 8.5 CFM (0.238m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 900 mW | 8800 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | - |
|
CFM-A751BF-245-588-22FAN AXIAL 172X51.5MM 24VDC WIRE |
151 | 69.73 |
|
Datasheet |
CFM-A7BF | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 151.5mm H | 51.50mm | 324.9 CFM (9.10m³/min) | 1.070 in H2O (266.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 58.8dB(A) | 51.84 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
3314NH3FAN AXIAL 92X32MM 24VDC WIRE |
571 | 57.07 |
|
Datasheet |
3300N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 78.0 CFM (2.18m³/min) | - | Ball | Tubeaxial | - | 50.0dB(A) | 6.7 W | 4350 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | UL | 0.419 lb (190.06 g) |
|
109L0624H402FAN AXIAL 60X25MM 24VDC WIRE |
1,050 | 55.17 |
|
Datasheet |
San Ace 60L | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 1.44 W | 3800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
3414NHH-386FAN AXIAL 92X25.4MM 24VDC WIRE |
2,177 | 54.79 |
|
Datasheet |
3400N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 60.1 CFM (1.68m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 3.1 W | 3250 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
