DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
06038DA-12S-EWF-DFAN AXIAL 60X38MM 12VDC WIRE |
152 | 0.00 |
|
Datasheet |
06038DA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 73.1 CFM (2.05m³/min) | 3.560 in H2O (886.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 66.5dB | 27.6 W | 17000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | cULus, VDE | - |
|
MQ8038E12B1+6-FSRFAN AXIAL 80X38MM 12VDC WIRE |
171 | 23.88 |
|
Datasheet |
MQ8038 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 123.3 CFM (3.45m³/min) | 1.970 in H2O (490.7 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 67.0dB(A) | - | 9000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.397 lb (180.08 g) |
|
AFB0912SH-TZUGFAN AXIAL 92X25.4MM 12VDC WIRE |
324 | 22.92 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 102.6 CFM (2.87m³/min) | 0.526 in H2O (131.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 9 W | 4800 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.267 lb (121.11 g) |
|

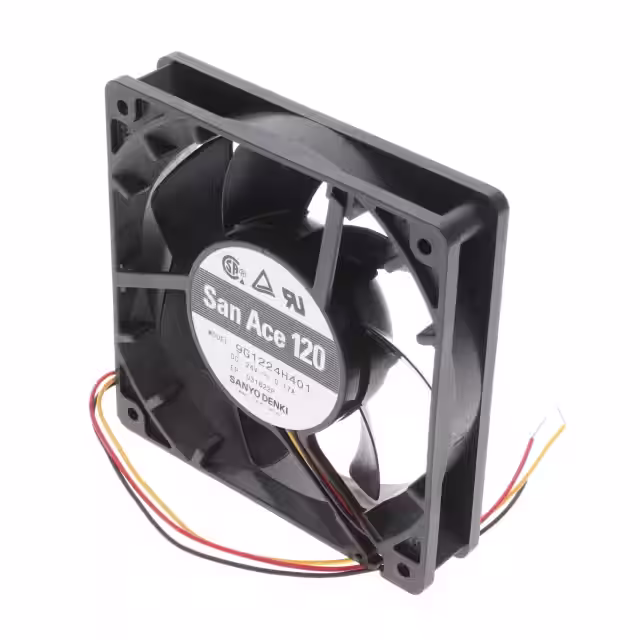

9G1224H401FAN AXIAL 119X25MM 24VDC WIRE |
1,544 | 20.05 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 88.0 CFM (2.46m³/min) | 0.257 in H2O (64.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 40.0dB(A) | 4.08 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
FFB0924EHE-T500FAN AXIAL 92X38MM 24VDC WIRE |
256 | 28.72 |
|
Datasheet |
FFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 110.2 CFM (3.09m³/min) | 0.665 in H2O (165.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 55.0dB(A) | 12 W | 4800 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
_Series.jpg)
|
614F/2FAN AXIAL 60X15MM 24VDC WIRE |
271 | 25.34 |
|
Datasheet |
600F | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 17.1 CFM (0.479m³/min) | - | Sintec | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 1.1 W | 3900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.066 lb (29.94 g) |
|

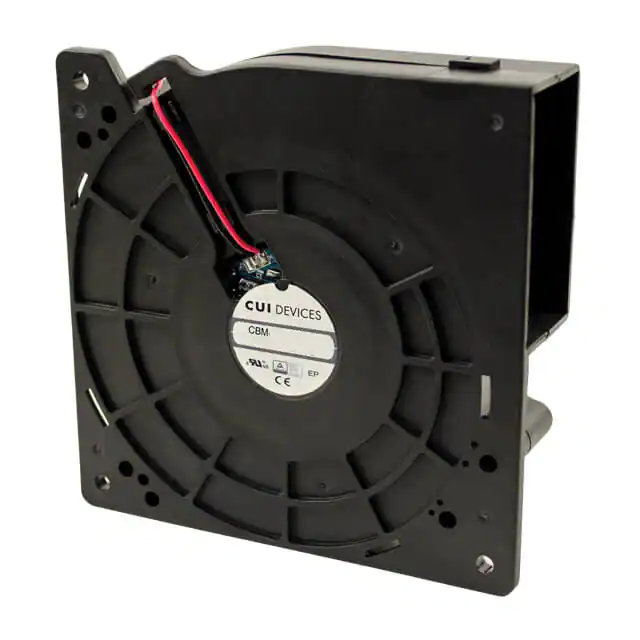

CBM-A232B-121FAN BLOWER 120X32MM 12VDC WIRE |
357 | 26.16 |
|
Datasheet |
CBM-120B | Tray | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 31.4 CFM (0.879m³/min) | 0.640 in H2O (159.4 Pa) | Ball | Blower | Auto Restart | 49.6dB(A) | 5.4 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.553 lb (250.84 g) |
|

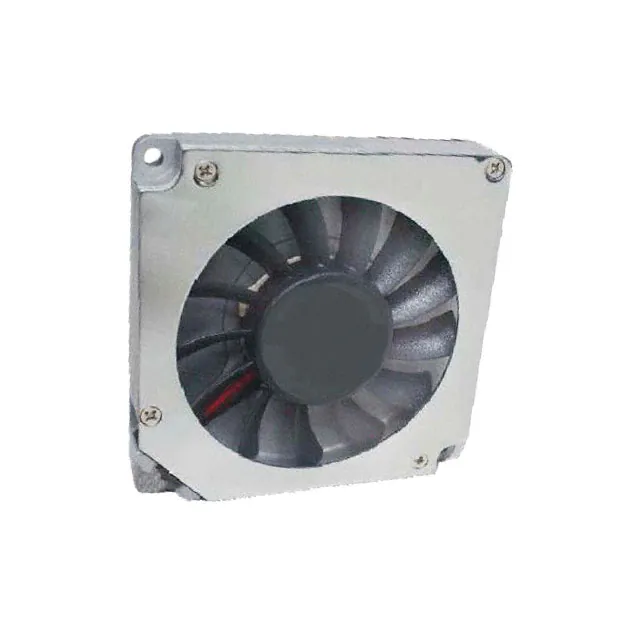

ODB5009-05HBFAN BLOWER 50X9MM BALL 5VDC WIRE |
462 | 31.87 |
|
Datasheet |
ODB5009 | Box | Active | 5VDC | Square - 50mm L x 50mm H | 9.00mm | 3.0 CFM (0.084m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Blower | Auto Restart | 34.0dB(A) | 500 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus | - |
|
612NGLEFAN AXIAL 60X25.4MM 12VDC WIRE |
1,311 | 25.70 |
|
Datasheet |
600N | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 11.2 CFM (0.314m³/min) | - | Sintec | Tubeaxial | Locked Rotor Protection | 27.0dB(A) | 580 mW | 2500 RPM | 2 Wire Leads | - | -4 ~ 185°F (-20 ~ 85°C) | CE, CSA, UL, VDE | 0.146 lb (66.22 g) |
|
9G1224E4D01FAN AXIAL 119X25MM 24VDC WIRE |
212 | 23.60 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 115.0 CFM (3.22m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 48.0dB(A) | 8.88 W | 3650 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
MQ1238H12B-FSRFAN AXIAL 120X38MM 12VDC WIRE |
215 | 34.06 |
|
Datasheet |
MQ1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 226.0 CFM (6.33m³/min) | 1.350 in H2O (336.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 65.0dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.772 lb (350.17 g) |
|
9G0912P2G03FAN AXIAL 92X32MM 12VDC WIRE |
125 | 20.65 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | - | 5000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.375 lb (170.1 g) |
.jpg)
|
9GA0612P1K601FAN AXIAL 60X38MM 12VDC WIRE |
232 | 18.96 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 53.0 CFM (1.48m³/min) | 2.710 in H2O (675.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 11.4 W | 14800 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|

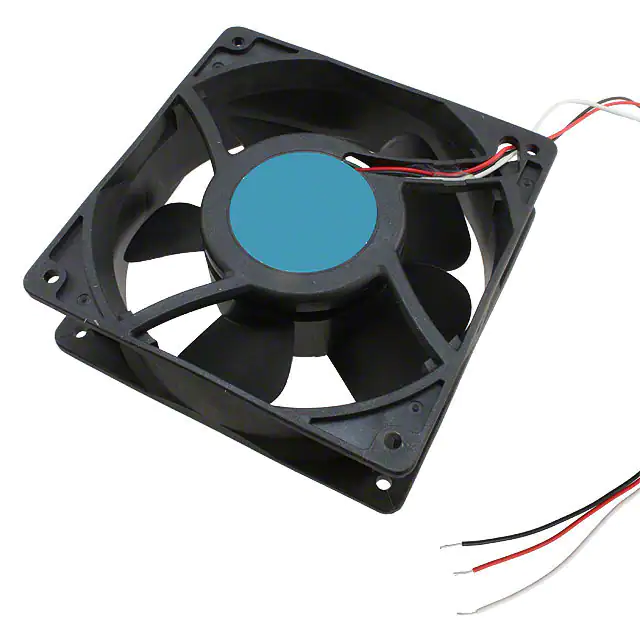

OD1238-12HB01AFAN AXIAL 120X38MM 12VDC WIRE |
105 | 26.87 |
|
Datasheet |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.1dB(A) | 6 W | 2895 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.572 lb (259.45 g) |
|
BFB1012L-AFAN BLOWER 97.8X33MM 12VDC WIRE |
317 | 25.51 |
|
Datasheet |
BFB | Box | Active | 12VDC | Rectangular/Rounded - 97.8mm L x 95.5mm H | 33.00mm | 23.2 CFM (0.650m³/min) | 0.585 in H2O (145.7 Pa) | Ball | Blower | Locked Rotor Protection | 49.5dB(A) | 4.4 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
GF80251B1-000U-AC9FAN AXIAL 80X25MM 12VDC WIRE |
168 | 24.61 |
|
Datasheet |
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart | 47.5dB(A) | 3.96 W | 4800 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.231 lb (104.78 g) |
|
CFM-A225BF-263-615-20FAN AXIAL 120X25.4MM 24VDC WIRE |
184 | 34.49 |
|
Datasheet |
CFM-120 BF | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 201.0 CFM (5.63m³/min) | 1.160 in H2O (288.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 61.5dB(A) | 29.76 W | 6300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9GL1212M101FAN AXIAL 119X38MM 12VDC WIRE |
124 | 27.08 |
|
Datasheet |
San Ace 120L | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 2.52 W | 1950 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
8414N/2GMFAN AXIAL 80X25.4MM 24VDC WIRE |
171 | 27.98 |
|
Datasheet |
8400N | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 34.1 CFM (0.955m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 37.0dB(A) | 1.4 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
04056EA-12R-EUB-02FAN AXIAL DUAL 40X56MM 12VDC |
128 | 0.00 |
|
- |
04056EA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 30.3 CFM (0.848m³/min) | 3.100 in H2O (772.2 Pa) | Ball | Tubeaxial (Dual) | Auto Restart, PWM Control, Speed Sensor (Tach) | 69.0dB | 15.6 W | 20000 Front, 18000 Rear | 4 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cULus, VDE | - |
