DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD1238-12HBXJ01AFAN AXIAL 120X38MM 12VDC WIRE |
440 | 37.27 |
|
Datasheet |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 250.0 CFM (7.00m³/min) | 1.480 in H2O (368.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 69.0dB | 44.4 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.827 lb (375.12 g) |
|
4314NLFAN AXIAL 119X32MM 24VDC WIRE |
247 | 44.12 |
|
Datasheet |
4300N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 58.8 CFM (1.64m³/min) | - | Ball | Tubeaxial | - | 25.0dB(A) | 1 W | 1450 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
8414NMLFAN AXIAL 80X25.4MM 24VDC WIRE |
612 | 35.51 |
|
Datasheet |
8400N | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 26.5 CFM (0.742m³/min) | - | Ball | Tubeaxial | - | 21.0dB(A) | 1.1 W | 2050 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
4412FGLFAN AXIAL 119X25.4MM 12VDC WIRE |
194 | 37.15 |
|
Datasheet |
4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 25.40mm | 55.0 CFM (1.54m³/min) | - | Sintec | Tubeaxial | - | 26.0dB(A) | 1.3 W | 1600 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.386 lb (175.09 g) |
|
9RA0948S40011FAN AXIAL 92X25MM 48VDC WIRE |
252 | 29.81 |
|
Datasheet |
San Ace 92 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 58.1 CFM (1.63m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 2.88 W | 3850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

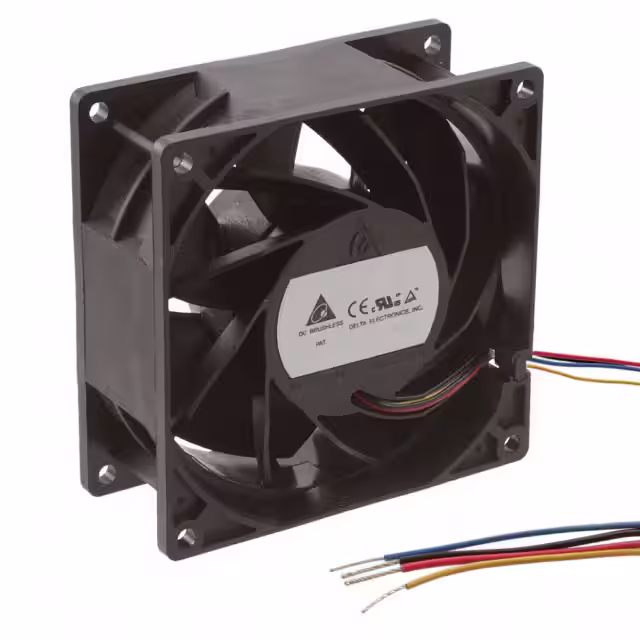

THB0948AEFAN AXIAL 92X38MM 48VDC WIRE |
355 | 34.54 |
|
Datasheet |
THB | Box | Not For New Designs | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 162.5 CFM (4.55m³/min) | 3.354 in H2O (835.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 72.5dB(A) | 36.5 W | 13000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.503 lb (228.16 g) |
|

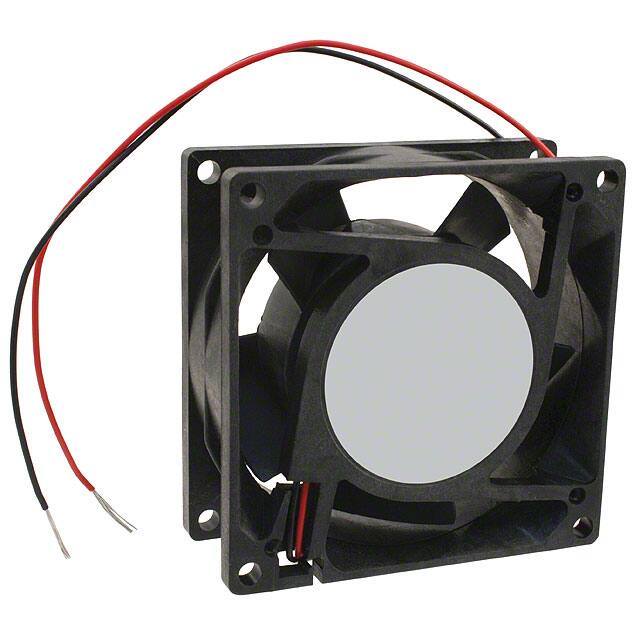

19030613AFAN AXIAL 80X32MM 12VDC ST12K3 |
167 | 42.89 |
|
Datasheet |
Sprint | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 40.0 CFM (1.12m³/min) | 0.325 in H2O (80.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 44.2dB(A) | 4.4 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 0.397 lb (180.08 g) |
|

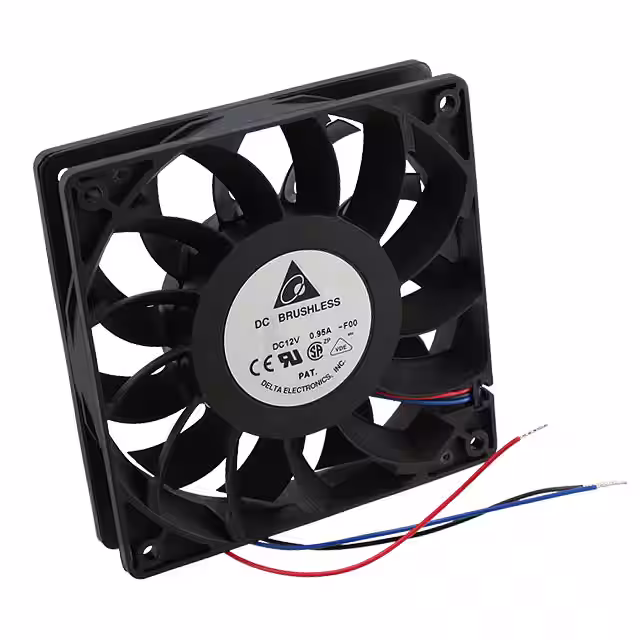

FFB1212VH-F00FAN AXIAL 120X25.4MM 12VDC WIRE |
107 | 32.85 |
|
Datasheet |
FFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 126.9 CFM (3.55m³/min) | 0.326 in H2O (81.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.9dB(A) | 9.48 W | 3400 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|

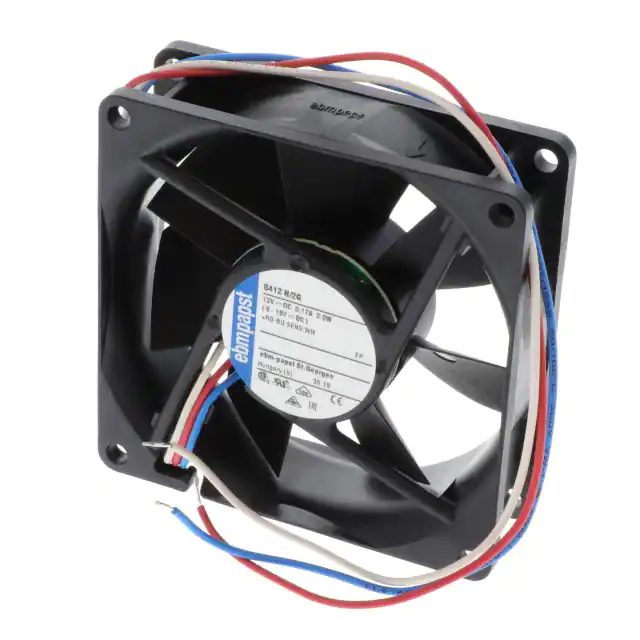

8412N/2GFAN AXIAL 80X25.4MM 12VDC WIRE |
286 | 35.24 |
|
Datasheet |
8400 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | - | - | Sintec | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 32.0dB(A) | 2 W | 3100 RPM | 3 Wire Leads | - | - | CE, CSA, UL, VDE | 0.21 lb (95.25 g) |
|
624LFAN AXIAL 60X25.4MM 24VDC WIRE |
456 | 27.41 |
|
Datasheet |
620 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 12.4 CFM (0.347m³/min) | - | Ball | Tubeaxial | - | 20.0dB(A) | 1 W | 3200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
622NFAN AXIAL 60X25.4MM 12VDC WIRE |
142 | 37.51 |
|
Datasheet |
620 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 23.5 CFM (0.658m³/min) | - | Ball | Tubeaxial | - | 35.0dB(A) | 1.9 W | 6100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
19028933AFAN AXIAL 79.8X41.8MM 12V SD12B1 |
107 | 54.65 |
|
Datasheet |
Sprite | Bulk | Active | 12VDC | Square - 79.8mm L x 79.8mm H | 41.80mm | 35.0 CFM (0.980m³/min) | 0.152 in H2O (37.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 47.6dB(A) | 3 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.1 lbs (500.0 g) |
|

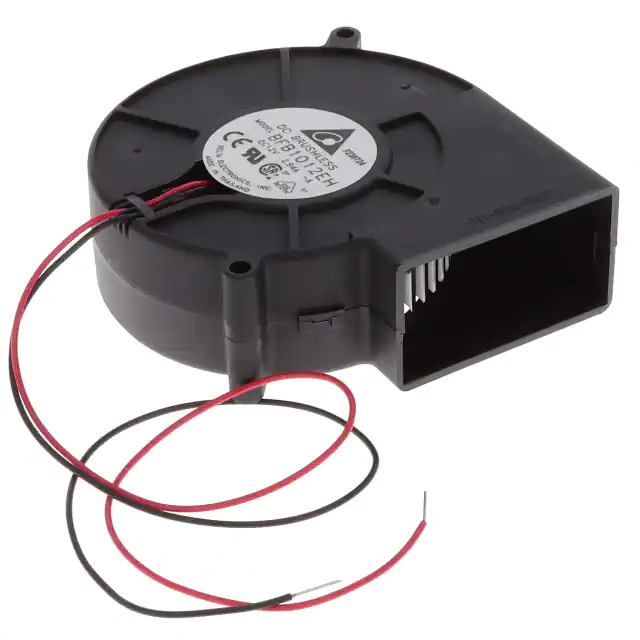

BFB1012EH-AFAN BLOWER 97.2X33MM 12VDC WIRE |
116 | 32.21 |
|
Datasheet |
BFB | Box | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 46.0 CFM (1.29m³/min) | 2.814 in H2O (701.0 Pa) | Ball | Blower | Locked Rotor Protection | 64.0dB(A) | 29.4 W | 5300 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|

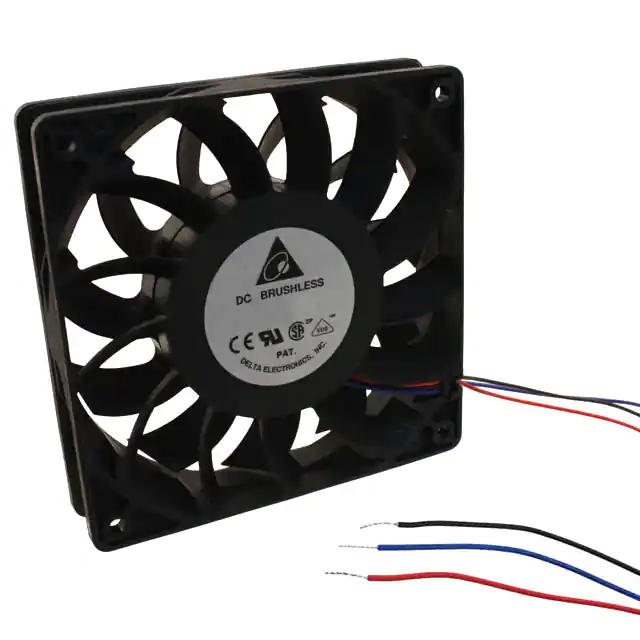

FFB1224EH-F00FAN AXIAL 120X25.4MM 24VDC WIRE |
1,923 | 34.68 |
|
Datasheet |
FFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 150.3 CFM (4.21m³/min) | 0.489 in H2O (121.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 56.4dB(A) | 15.12 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|
9G1212E401FAN AXIAL 119X25MM 12VDC WIRE |
536 | 23.60 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 115.0 CFM (3.22m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 48.0dB(A) | 6.96 W | 3650 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
9GV1212P1J011FAN AXIAL 120X38MM 12VDC WIRE |
307 | 44.92 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 36 W | 6400 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
FFB1224VHE-BR00FAN AXIAL 120X38MM 24VDC WIRE |
177 | 35.85 |
|
Datasheet |
FFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 151.9 CFM (4.25m³/min) | 0.445 in H2O (110.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 53.0dB(A) | 13.44 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
BF.jpg)
|
CFM-A238BF-270-651-22FAN AXIAL 120X38MM 24VDC WIRE |
213 | 39.56 |
|
Datasheet |
CFM-120BF | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 230.3 CFM (6.45m³/min) | 1.650 in H2O (411.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 65.1dB(A) | 60.96 W | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
PFB1224GHE-T500FAN AXIAL 120X38MM 24VDC WIRE |
1,474 | 48.54 |
|
Datasheet |
PFB | Box | Not For New Designs | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 217.8 CFM (6.10m³/min) | 1.075 in H2O (267.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 32.4 W | 4800 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
|
PFB0924DHEFAN AXIAL 92X38MM 24VDC WIRE |
379 | 38.29 |
|
Datasheet |
PFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 175.0 CFM (4.90m³/min) | 1.819 in H2O (453.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 66.5dB(A) | 34.8 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
