DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109E1324A101FAN AXIAL 127X38MM 24VDC WIRE |
1,335 | 76.35 |
|
Datasheet |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 170.0 CFM (4.76m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 52.0dB(A) | 16.8 W | 3850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
|
6224N/12LDC TUBEAXIAL FAN |
3,699 | 0.00 |
|
- |
6200N | Bulk | Active | 24VDC | Round - 171.5mm Dia | 51.00mm | 241.3 CFM (6.76m³/min) | - | Ball | Tubeaxial | - | 55.0dB(A) | 18 W | - | 2 Terminals | - | 162°F (72°C) | CSA, VDE, UL | - |
|
|
9CRA0812H800180X80MM 12VDC TACH |
1,491 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TCA1748AT-EPFAN IMP MTRZD 175X69MM 48VDC |
3,360 | 0.00 |
|
Datasheet |
TCA | Box | Obsolete | 48VDC | Round - 175mm Dia | 69.00mm | 428.0 CFM (11.98m³/min) | 1.957 in H2O (487.5 Pa) | Ball | Motorized Impellers | GR-487 (Salt Fog Protection), Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.8dB(A) | 76.8 W | 4000 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | -13 ~ 158°F (-25 ~ 70°C) | CE, cURus, TUV | 1.5 lbs (670.0 g) |
|
|
109E1324G102FAN AXIAL 127X38MM 24VDC WIRE |
3,326 | 77.26 |
|
Datasheet |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 200.0 CFM (5.60m³/min) | 0.867 in H2O (216.0 Pa) | Ball | Tubeaxial | - | 57.0dB(A) | 26.4 W | 4550 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
|
109E1324G1D01FAN AXIAL 127X38MM 24VDC WIRE |
1,550 | 77.49 |
|
Datasheet |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 200.0 CFM (5.60m³/min) | 0.867 in H2O (216.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 57.0dB(A) | 26.4 W | 4550 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
|
109E1324G101FAN AXIAL 127X38MM 24VDC WIRE |
4,773 | 77.49 |
|
Datasheet |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 200.0 CFM (5.60m³/min) | 0.867 in H2O (216.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 57.0dB(A) | 26.4 W | 4550 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|

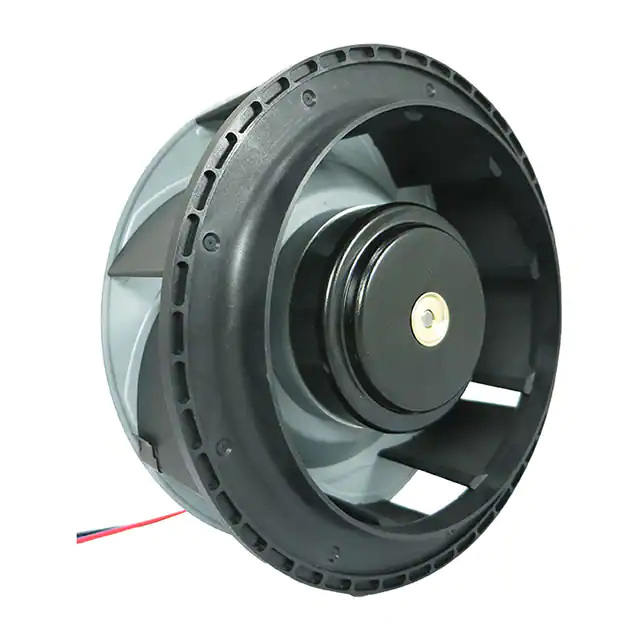

ODB17567-48HB10AFAN IMP MTRZD 175X67MM 48VDC |
2,217 | 79.17 |
|
Datasheet |
- | Bulk | Active | 48VDC | Round - 175mm Dia | 67.00mm | 298.0 CFM (8.34m³/min) | 1.380 in H2O (343.7 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 64.0dB | 50.4 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 149°F (-10 ~ 65°C) | CE, cURus, TUV, UR | 1.9 lbs (900.0 g) |
|
|
OD172SAP-24HTB0421FAN AXIAL 172X50.8MM 24VDC TERM |
3,767 | 0.00 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RLF100-11/18/2HP-182DC FLATPAK - RADIAL BLOWER |
3,186 | 0.00 |
|
- |
RLF100 | Bulk | Active | 48VDC | Square/Rounded - 127mm L x 127mm H | 25.40mm | 47.1 CFM (1.32m³/min) | - | Ball | Blower, Centrifugal | - | - | 17 W | 6400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
W2G115-AG71-12FAN AXIAL 127X38MM 24VDC TERM |
3,626 | 95.75 |
|
Datasheet |
W2G115 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 160.0 CFM (4.48m³/min) | - | Ball | Tubeaxial | - | 52.0dB(A) | 12 W | 4050 RPM | 2 Terminals | - | - | - | 1.2 lbs (544.3 g) |
|
|
6314N/2HHPDC TUBEAXIAL FAN |
3,573 | 0.00 |
|
- |
6314N | Bulk | Active | 24VDC | Round - 171.5mm Dia | 51.00mm | 318.1 CFM (8.91m³/min) | - | Ball | Tubeaxial | Alarm Sensor, Speed Sensor (Tach) | - | 30 W | 4000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, VDE, UL | - |
|
|
109P1348H1021FAN AXIAL 127X38MM 48VDC WIRE |
1,987 | 64.53 |
|
Datasheet |
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 9.6 W | 2950 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1348H102FAN AXIAL 127X38MM 48VDC WIRE |
2,215 | 64.53 |
|
Datasheet |
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 9.6 W | 2950 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1348S102FAN AXIAL 127X38MM 48VDC WIRE |
4,118 | 75.21 |
|
Datasheet |
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 47.0dB(A) | 14.4 W | 3300 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1348S1021FAN AXIAL 127X38MM 48VDC WIRE |
4,943 | 75.21 |
|
Datasheet |
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 47.0dB(A) | 14.4 W | 3300 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1348S101FAN AXIAL 127X38MM 48VDC WIRE |
3,364 | 75.44 |
|
Datasheet |
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 14.4 W | 3300 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1348H1D01FAN AXIAL 127X38MM 48VDC WIRE |
4,991 | 64.77 |
|
Datasheet |
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 45.0dB(A) | 9.6 W | 2950 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1348H1D011FAN AXIAL 127X38MM 48VDC WIRE |
1,864 | 64.77 |
|
Datasheet |
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 45.0dB(A) | 9.6 W | 2950 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1348S1D01FAN AXIAL 127X38MM 48VDC WIRE |
1,347 | 75.44 |
|
Datasheet |
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 47.0dB(A) | 14.4 W | 3300 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
