DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSI1380H24B2-BBRFAN IMP MTRZD 133X80.5MM 24VDC |
3,535 | 74.96 |
|
Datasheet |
MSI1380 | Box | Active | 24VDC | Round - 133mm Dia | 80.50mm | 177.1 CFM (4.96m³/min) | 1.780 in H2O (443.4 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Sensor | 66.0dB(A) | - | 4500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 1.7 lbs (771.1 g) |
|
|
MSI1380H48B1-BBRFAN IMP MTRZD 133X80.5MM 48VDC |
1,539 | 74.96 |
|
Datasheet |
MSI1380 | Box | Active | 48VDC | Round - 133mm Dia | 80.50mm | 177.1 CFM (4.96m³/min) | 1.780 in H2O (443.4 Pa) | Ball | Motorized Impellers | Auto Restart, Speed Sensor (Tach) | 66.0dB(A) | - | 4500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 1.7 lbs (771.1 g) |
|
|
MSI1380H48B2-BBRFAN IMP MTRZD 133X80.5MM 48VDC |
4,088 | 74.96 |
|
Datasheet |
MSI1380 | Box | Active | 48VDC | Round - 133mm Dia | 80.50mm | 177.1 CFM (4.96m³/min) | 1.780 in H2O (443.4 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Sensor | 66.0dB(A) | - | 4500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 1.7 lbs (771.1 g) |
|
109P1312H101FAN AXIAL 127X38MM 12VDC WIRE |
2,826 | 55.01 |
|
Datasheet |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 9.84 W | 2950 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1312H1011FAN AXIAL 127X38MM 12VDC WIRE |
4,868 | 55.01 |
|
Datasheet |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 9.84 W | 2950 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1312S101FAN AXIAL 127X38MM 12VDC WIRE |
2,860 | 66.36 |
|
Datasheet |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 15.6 W | 3300 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1312S1011FAN AXIAL 127X38MM 12VDC WIRE |
2,696 | 66.36 |
|
Datasheet |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 15.6 W | 3300 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1324H101FAN AXIAL 127X38MM 24VDC WIRE |
3,900 | 55.01 |
|
Datasheet |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 9.84 W | 2950 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1324H1011FAN AXIAL 127X38MM 24VDC WIRE |
2,415 | 55.01 |
|
Datasheet |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 9.84 W | 2950 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1324S101FAN AXIAL 127X38MM 24VDC WIRE |
3,376 | 66.36 |
|
Datasheet |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 13.2 W | 3300 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1324S1011FAN AXIAL 127X38MM 24VDC WIRE |
4,634 | 66.36 |
|
Datasheet |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 13.2 W | 3300 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1312H1D01FAN AXIAL 127X38MM 12VDC WIRE |
4,041 | 55.01 |
|
Datasheet |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 45.0dB(A) | 9.84 W | 2950 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1312H1D011FAN AXIAL 127X38MM 12VDC WIRE |
1,306 | 55.01 |
|
Datasheet |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 45.0dB(A) | 9.84 W | 2950 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1312S1D01FAN AXIAL 127X38MM 12VDC WIRE |
1,408 | 74.92 |
|
Datasheet |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 47.0dB(A) | 15.6 W | 3300 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1312S1D011FAN AXIAL 127X38MM 12VDC WIRE |
2,121 | 74.92 |
|
Datasheet |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 47.0dB(A) | 15.6 W | 3300 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1324H1D01FAN AXIAL 127X38MM 24VDC WIRE |
1,383 | 55.01 |
|
Datasheet |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 45.0dB(A) | 9.84 W | 2950 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1324H1D011FAN AXIAL 127X38MM 24VDC WIRE |
3,553 | 55.01 |
|
Datasheet |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 45.0dB(A) | 9.84 W | 2950 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1324S1D01FAN AXIAL 127X38MM 24VDC WIRE |
4,616 | 74.92 |
|
Datasheet |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 47.0dB(A) | 13.2 W | 3300 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1324S1D011FAN AXIAL 127X38MM 24VDC WIRE |
3,421 | 74.92 |
|
Datasheet |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 47.0dB(A) | 13.2 W | 3300 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|

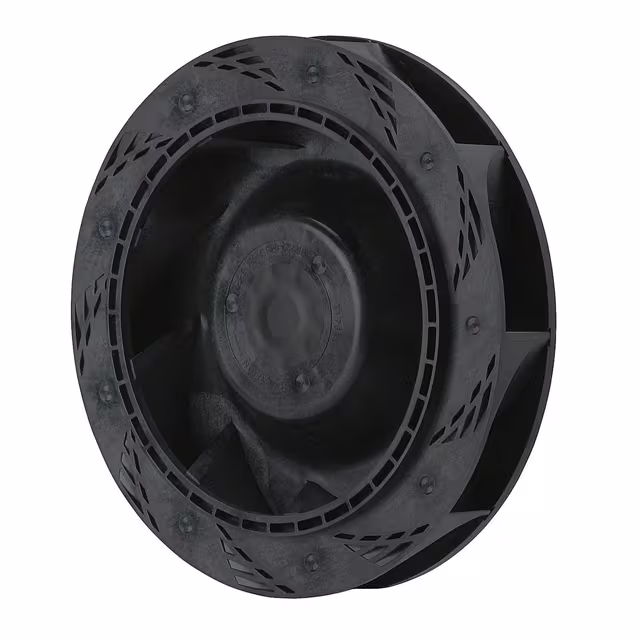

9W1TN48P1H01FAN IMP MTRZD 150X35MM 48VDC |
2,258 | 86.57 |
|
Datasheet |
San Ace 150W | Box | Active | 48VDC | Round - 150mm Dia | 35.00mm | 135.0 CFM (3.78m³/min) | 1.578 in H2O (393.1 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 15.4 W | 3800 RPM | 4 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
