DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AC100MRACMAXX TUBEAXIAL FAN |
1,843 | 0.00 |
|
Datasheet |
AC100 | Bulk | Active | 85 ~ 265VDC | Round - 98.5mm Dia | 130.0mm | 53.0 CFM (1.48m³/min) | - | Ball | Tubeaxial | Dual Voltage | 40.0dB(A) | 3.8 W | - | 3 Terminals | - | 14 ~ 131°F (-10 ~ 55°C) | - | - |
|

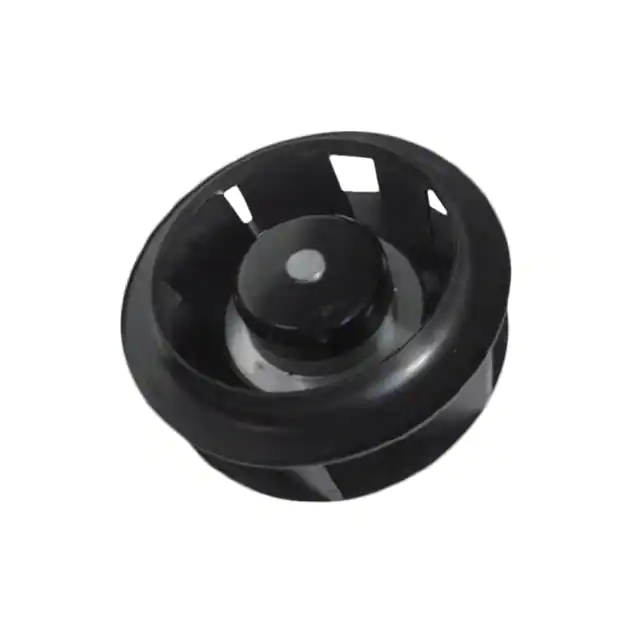

MSI1769H24B1+6-BBRFAN IMP MTRZD 175X69MM 24VDC |
2,758 | 92.90 |
|
Datasheet |
MSI1769 | Box | Active | 24VDC | Round - 175mm Dia | 69.00mm | 345.0 CFM (9.66m³/min) | 1.800 in H2O (448.4 Pa) | Ball | Motorized Impellers | Auto Restart, PWM Control, Speed Sensor (Tach) | 72.0dB(A) | - | 4000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 2.9 lbs (1.3 kg) |
|
|
MSI1769H48B1+6-BBRFAN IMP MTRZD 175X69MM 48VDC |
3,259 | 92.90 |
|
Datasheet |
MSI1769 | Box | Active | 48VDC | Round - 175mm Dia | 69.00mm | 345.0 CFM (9.66m³/min) | 1.800 in H2O (448.4 Pa) | Ball | Motorized Impellers | Auto Restart, PWM Control, Speed Sensor (Tach) | 72.0dB(A) | - | 4000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 2.9 lbs (1.3 kg) |
|
MSI1967H24B1+6-BBRFAN IMP MTRZD 190X67MM 24VDC |
3,024 | 120.03 |
|
Datasheet |
MSI1967 | Box | Active | 24VDC | Round - 190mm Dia | 67.00mm | 358.0 CFM (10.02m³/min) | 1.830 in H2O (455.8 Pa) | Ball | Motorized Impellers | Auto Restart, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | - | 3000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 2.9 lbs (1.3 kg) |
|
|
9LG1424L1D001140X38MM 24V, HIGH PERF LONG LIF |
4,341 | 0.00 |
|
Datasheet |
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9TG24P0S01FAN IMP MTRZD 175X69MM 24VDC |
3,636 | 96.87 |
|
Datasheet |
San Ace C175 | Box | Active | 24VDC | Round - 175mm Dia | 69.00mm | 409.8 CFM (11.47m³/min) | 2.450 in H2O (610.0 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 56.4 W | 3900 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.653 lb (750.0 g) |
|
|
W2G107-AD03-47DC TUBEAXIAL FANS |
4,156 | 0.00 |
|
- |
W2G107 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 3.5 W | 2800 RPM | 3 Wire Leads | IP22 | -13 ~ 162°F (-25 ~ 72°C) | CSA, UL | - |
|
|
109E1348G102FAN AXIAL 127X38MM 48VDC WIRE |
4,875 | 78.52 |
|
Datasheet |
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 200.0 CFM (5.60m³/min) | 0.867 in H2O (216.0 Pa) | Ball | Tubeaxial | - | 57.0dB(A) | 25.9 W | 4550 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
|
109E1348A102FAN AXIAL 127X38MM 48VDC WIRE |
2,905 | 77.26 |
|
Datasheet |
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 170.0 CFM (4.76m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | - | 52.0dB(A) | 17.3 W | 3850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
|
109E1348S102FAN AXIAL 127X38MM 48VDC WIRE |
2,900 | 77.26 |
|
Datasheet |
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 154.0 CFM (4.31m³/min) | 0.502 in H2O (125.0 Pa) | Ball | Tubeaxial | - | 49.0dB(A) | 13.4 W | 3450 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
|
OD180APL-48LBDC FAN 48V 180 X180X65MM |
4,786 | 0.00 |
|
Datasheet |
OD180APL | Bulk | Active | 48VDC | Square - 180mm L x 180mm H | 65.00mm | 300.0 CFM (8.40m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart | 46.1dB(A) | 15.4 W | 2150 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
6248NLFAN IMP MTRZD 171.5X50.8MM 48VDC |
2,230 | 118.79 |
|
- |
6200N | Bulk | Active | 48VDC | Round - 171.5mm Dia | 50.80mm | 120.7 CFM (3.38m³/min) | - | Ball | Motorized Impellers | - | 35.0dB(A) | 4 W | 1700 RPM | 2 Terminals | - | -4 ~ 162°F (-20 ~ 72°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
109E1348G1D01FAN AXIAL 127X38MM 48VDC WIRE |
3,791 | 78.74 |
|
Datasheet |
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 200.0 CFM (5.60m³/min) | 0.867 in H2O (216.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 57.0dB(A) | 25.9 W | 4550 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
|
109E1348A1D01FAN AXIAL 127X38MM 48VDC WIRE |
3,268 | 77.49 |
|
Datasheet |
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 170.0 CFM (4.76m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 52.0dB(A) | 17.3 W | 3850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
|
109E1348S1D01FAN AXIAL 127X38MM 48VDC WIRE |
3,966 | 77.49 |
|
Datasheet |
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 154.0 CFM (4.31m³/min) | 0.502 in H2O (125.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 49.0dB(A) | 13.4 W | 3450 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
|
109E1348A101FAN AXIAL 127X38MM 48VDC WIRE |
1,026 | 77.49 |
|
Datasheet |
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 170.0 CFM (4.76m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 52.0dB(A) | 17.3 W | 3850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
|
109E1348S101FAN AXIAL 127X38MM 48VDC WIRE |
4,233 | 77.49 |
|
Datasheet |
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 154.0 CFM (4.31m³/min) | 0.502 in H2O (125.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 49.0dB(A) | 13.4 W | 3450 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
|
109BG12HA1FAN BLOWER 160X40MM 12VDC WIRE |
1,088 | 79.43 |
|
Datasheet |
San Ace B160 | Box | Active | 12VDC | Square/Rounded - 160mm L x 160mm H | 40.00mm | 57.2 CFM (1.60m³/min) | 1.259 in H2O (313.6 Pa) | Ball | Blower | Locked Rotor Protection | 55.0dB(A) | 15.6 W | 2300 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.3 lbs (589.7 g) |
|
|
109BG12MA1FAN BLOWER 160X40MM 12VDC WIRE |
3,740 | 79.43 |
|
Datasheet |
San Ace B160 | Box | Active | 12VDC | Square/Rounded - 160mm L x 160mm H | 40.00mm | 44.5 CFM (1.25m³/min) | 0.629 in H2O (156.7 Pa) | Ball | Blower | Locked Rotor Protection | 50.0dB(A) | 7.68 W | 1800 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.3 lbs (589.7 g) |
|
|
6424/2FAN AXIAL 171.5X50.8MM 24VDC |
2,438 | 119.67 |
|
- |
6400 | Bulk | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150mm H | 50.80mm | 241.0 CFM (6.75m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 57.0dB(A) | 17 W | 3400 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 162°F (-20 ~ 72°C) | - | - |
