DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109E5724C5D01FAN AXIAL 172X51MM 24VDC WIRE |
1,034 | 61.88 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 350.0 CFM (9.80m³/min) | 1.237 in H2O (308.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 66.0dB(A) | 55.2 W | 4800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E1724C5D01FAN AXIAL 172X51MM 24VDC WIRE |
4,124 | 61.88 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 350.0 CFM (9.80m³/min) | 1.237 in H2O (308.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 60.0dB(A) | 55.2 W | 4800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
8214J/2NP-015DC TUBEAXIAL FAN |
4,515 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KFB1248EHSB80FAN IMP MTRZD 120X54MM 48VDC |
1,204 | 55.85 |
|
Datasheet |
KFB | Box | Not For New Designs | 48VDC | Round - 120mm Dia | 54.00mm | 174.8 CFM (4.89m³/min) | 1.347 in H2O (335.5 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 21.6 W | 4060 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.75 lb (340.19 g) |
|
|
19039032AFAN 172X50.8MM 24V PQ24B7-E2 |
3,477 | 74.31 |
|
Datasheet |
Patriot | Box | Active | 24VDC | Round - 171.4mm Dia | 50.80mm | 235.0 CFM (6.58m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 51.2dB(A) | 24 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
4112NDC TUBEAXIAL FAN |
4,774 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EFB1724LG-R00FAN AXIAL 172X50.8MM 24VDC WIRE |
4,440 | 56.13 |
|
Datasheet |
EFB | Bulk | Active | 24VDC | Round - 172mm Dia | 50.80mm | 210.1 CFM (5.88m³/min) | 0.469 in H2O (116.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 48.0dB(A) | 9.36 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.9 lbs (861.8 g) |
|
|
EFB1724VHG-R00FAN AXIAL 172X50.8MM 24VDC WIRE |
2,876 | 56.13 |
|
Datasheet |
EFB | Bulk | Active | 24VDC | Round - 172mm Dia | 50.80mm | 302.3 CFM (8.46m³/min) | 0.937 in H2O (233.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 57.0dB(A) | 23.28 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.9 lbs (861.8 g) |
|
|
3418N/2HHRFAN AXIAL 92X25.4MM 48VDC WIRE |
4,063 | 67.27 |
|
- |
3400N | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.40mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | - | - |
|
|
3524J/2H3PDC TUBEAXIAL FAN |
2,687 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
17001192AFAN AXIAL 48VDC PQD48B3E2X-E3 |
4,248 | 69.09 |
|
Datasheet |
Major | Bulk | Active | 48VDC | Round - 171.4mm Dia | 50.80mm | 235.0 CFM (6.58m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.3dB(A) | 22.1 W | 3400 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
17001203AFAN AXIAL 48VDC JQD48B3-E3 |
4,179 | 85.03 |
|
Datasheet |
Major | Box | Active | 48VDC | Rectangular/Rounded - 171.4mm L x 150.4mm H | 50.80mm | 235.0 CFM (6.58m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 54.3dB(A) | 22.1 W | 3400 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
19041261AFAN 127X38.1MM 12V GL12K6PNDNX |
3,152 | 62.82 |
|
Datasheet |
Galaxy | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.10mm | 160.0 CFM (4.48m³/min) | - | Ball | Tubeaxial | Alarm Sensor, Locked Rotor Protection | 55.5dB(A) | 19.8 W | 3550 RPM | 5 Position Rectangular Connector | - | 122°F (50°C) | CE, cUL, UL | - |
|
|
55642.55011FAN BLOWER CF 316X79MM 12VDC |
2,224 | 0.00 |
|
Datasheet |
55642 | - | Obsolete | 12VDC | Rectangular - 316mm L x 70.5mm H | 79.00mm | 95.0 CFM (2.66m³/min) | - | Sleeve | Blower, Cross Flow | - | 55.0dB(A) | 8 W | - | 2 Terminals | - | - | - | - |
|
|
17001193AFAN AXIAL 24VDC PQD24K3E2X-E3 |
4,662 | 69.49 |
|
Datasheet |
Major | Bulk | Active | 24VDC | Round - 171.4mm Dia | 50.80mm | 285.0 CFM (7.98m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.9dB(A) | 43.2 W | 4200 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
17001204AFAN AXIAL 12VDC PQD12B3-E3 |
3,639 | 85.53 |
|
Datasheet |
Patriot | Box | Active | 12VDC | Round - 171.4mm Dia | 50.80mm | 235.0 CFM (6.58m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 54.3dB(A) | 27.1 W | 3400 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
17001205AFAN AXIAL 24VDC PQD24B3-E3 |
3,211 | 85.54 |
|
Datasheet |
Patriot | Box | Active | 24VDC | Round - 171.4mm Dia | 50.80mm | 235.0 CFM (6.58m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 54.3dB(A) | 24 W | 3400 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
17001206AFAN AXIAL 48VDC PQD48B3-E3 |
4,137 | 85.53 |
|
Datasheet |
Patriot | Box | Active | 48VDC | Round - 171.4mm Dia | 50.80mm | 235.0 CFM (6.58m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 54.3dB(A) | 22.1 W | 3400 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|

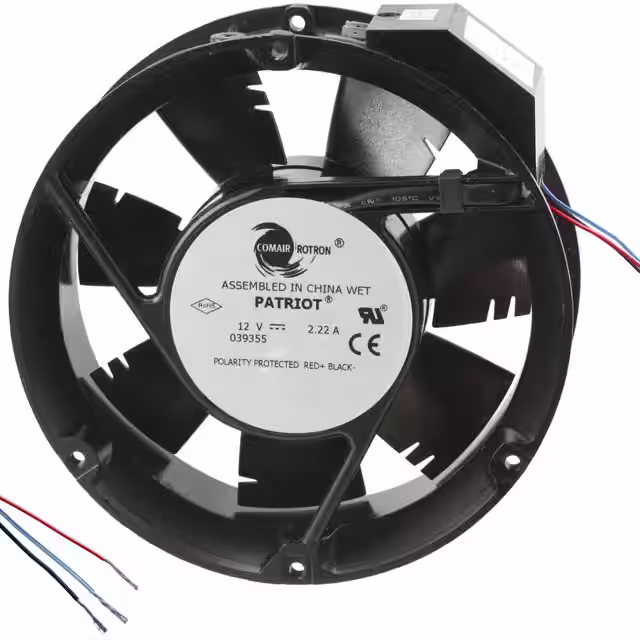

19039355AFAN AXIAL 172X50.8MM PQ12B4QNN |
2,053 | 102.65 |
|
Datasheet |
Patriot | Box | Active | 12VDC | Round - 172mm Dia | 50.80mm | 235.0 CFM (6.58m³/min) | 0.769 in H2O (191.5 Pa) | Ball | Tubeaxial | Auto Restart, Fan Performance Sensor (FPS), Locked Rotor Protection | 51.2dB(A) | 26.3 W | 3500 RPM | 2 Terminals and 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.8 lbs (816.5 g) |
|
|
MS1751L12B1+6-FHRFAN AXIAL 171X51.5MM 12VDC WIRE |
4,854 | 42.58 |
|
Datasheet |
MS1751-H | Bulk | Active | 12VDC | Rectangular/Rounded - 171mm L x 153mm H | 51.50mm | 184.4 CFM (5.16m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | - | 3000 RPM | 4 Wire Leads | - | - | - | 1.5 lbs (670.0 g) |
