DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3312N/2H3PDC TUBEAXIAL FAN |
1,067 | 0.00 |
|
- |
3300N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 78.3 CFM (2.19m³/min) | 0.522 in H2O (130.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 5.5 W | 4350 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CCC, CSA, CE, EAC, VDE, UL | - |
|
|
3318N/2H3PDC TUBEAXIAL FAN |
2,543 | 0.00 |
|
- |
3300N | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 32.00mm | 78.3 CFM (2.19m³/min) | 0.522 in H2O (130.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 6.5 W | 4350 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CCC, CSA, CE, EAC, VDE, UL | - |
|
|
3314N/2H3PDC TUBEAXIAL FAN |
4,513 | 0.00 |
|
- |
3300N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 78.3 CFM (2.19m³/min) | 0.522 in H2O (130.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 5.5 W | 4350 RPM | 4 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | CCC, CSA, CE, EAC, VDE, UL | - |
|
|
109L0648G401FAN AXIAL 60X25MM 48VDC WIRE |
1,936 | 55.31 |
|
Datasheet |
San Ace 60L | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 3.36 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
109L0648G4D0160X25MM 48V,LONG LIFE,RBLS DC LC |
3,142 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
109L0648H40160X25MM 48V,LONG LIFE,RBLS DC TA |
4,902 | 0.00 |
|
Datasheet |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.92 W | 3800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | - |
|
|
96FAN-775P1U3.2-CJCOOLJAG P4 775P 1U 3.2GHZ SIDE B |
2,087 | 0.00 |
|
Datasheet |
* | Bulk | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9LG0612S4001FAN AXIAL 60X25MM 12VDC WIRE |
2,728 | 55.51 |
|
Datasheet |
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 49.4 CFM (1.38m³/min) | 1.204 in H2O (299.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 8.04 W | 11000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9LG0612S4D00160X25MM 12V, HIGH PERF LONG LIFE |
2,378 | 0.00 |
|
Datasheet |
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
4374R-136DC TUBEAXIAL FAN |
2,708 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EFB1524SHG-R00FAN AXIAL 172X50.8MM 24VDC WIRE |
1,405 | 51.13 |
|
Datasheet |
EFB | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 325.0 CFM (9.10m³/min) | 1.083 in H2O (269.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 63.0dB(A) | 28.08 W | 4300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.9 lbs (861.8 g) |
|
|
19031927AFAN AXIAL 171.5X55MM MT48B6NDNX |
1,901 | 65.64 |
|
Datasheet |
Maltese | Box | Active | 48VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 55.00mm | 300.0 CFM (8.40m³/min) | - | Ball | Tubeaxial | Fan Performance Sensor (FPS), Locked Rotor Protection | 57.1dB(A) | 35 W | 3400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | - |
|

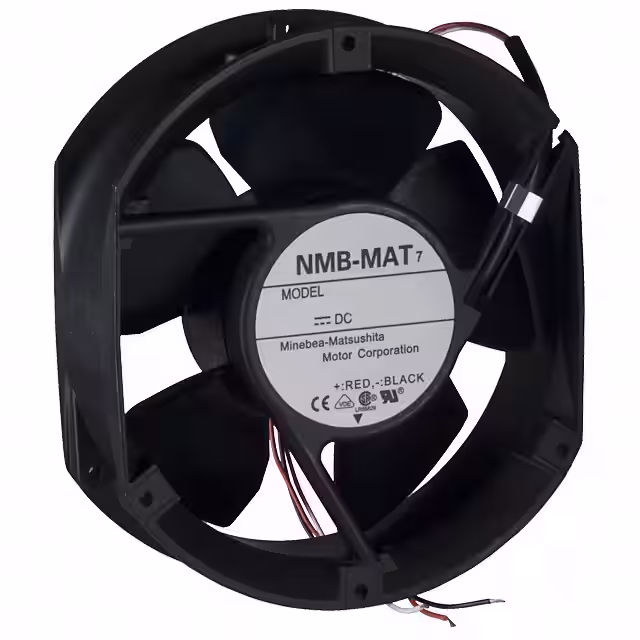

5920PL-05W-B49-D50FAN AXIAL 172X50.8MM 24VDC WIRE |
4,290 | 0.00 |
|
Datasheet |
5920PL | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 240.0 CFM (6.72m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 58.0dB | 15.8 W | 3350 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
RG125-19/12N/2FAN BLOWER CF 180X40MM 12VDC |
2,748 | 0.00 |
|
Datasheet |
RG125N | Box | Obsolete | 12VDC | Square - 180mm L x 180mm H | 40.00mm | 51.5 CFM (1.44m³/min) | - | Ball | Blower, Centrifugal | Speed Sensor (Tach) | 58.0dB(A) | 5 W | 2550 RPM | 3 Wire Leads | - | -22 ~ 167°F (-30 ~ 75°C) | - | 1.6 lbs (725.7 g) |
|
|
8314/17VFAN AXIAL 80X32MM 24VDC WIRE |
3,869 | 0.00 |
|
Datasheet |
8300 | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 32.0 CFM (0.896m³/min) | - | Ball | Tubeaxial | - | - | 2.5 W | - | 2 Wire Leads | - | - | - | - |
|
|
9WPA0924G400192X25MM 24V, SPLASH & DUST PROOF |
2,103 | 0.00 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
PSD24H0AZBX-A (2).Z.GN.IP55FAN AXIAL 170X51MM 24VDC WIRE |
1,908 | 0.00 |
|
Datasheet |
PSD | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 170mm L x 150mm H | 51.00mm | 387.1 CFM (10.84m³/min) | 1.233 in H2O (307.1 Pa) | Ball | Tubeaxial | Auto Restart | 69.0dB(A) | 55.2 W | 5800 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
9WPA0812P4S00180X25MM 12VDC TACH/PWM |
2,232 | 0.00 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.1 CFM (1.49m³/min) | 0.348 in H2O (86.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 40.0dB(A) | 3.12 W | 5300 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
PSD48H0AZBX-A (2).Z.GN.IP55FAN AXIAL 170X51MM 48VDC WIRE |
4,437 | 54.53 |
|
Datasheet |
PSD | Bulk | Active | 48VDC | Rectangular/Rounded - 170mm L x 150mm H | 51.00mm | 417.2 CFM (11.68m³/min) | 1.550 in H2O (385.0 Pa) | Ball | Tubeaxial | Auto Restart | 70.9dB(A) | 74.4 W | 6200 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
MA1751X48B1-FSR-CCFAN AXIAL 172X50.8MM 48VDC WIRE |
2,491 | 50.99 |
|
Datasheet |
MA1751 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 290.6 CFM (8.14m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Conformal Coating, Speed Sensor (Tach) | 63.0dB(A) | - | 3400 RPM | 3 Wire Leads | - | - | cUL, TUV, UL | 1.7 lbs (771.1 g) |
