DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9LG0924P4G001FAN AXIAL 92X25MM 24VDC WIRE |
1,824 | 56.71 |
|
Datasheet |
San Ace 92L | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 68.2 CFM (1.91m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 40.0dB(A) | 3.6 W | 4400 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
9WL0424G3002FAN AXIAL 40X28MM 24VDC WIRE |
3,089 | 54.76 |
|
Datasheet |
San Ace 40W | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 19.7 CFM (0.552m³/min) | 1.240 in H2O (308.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 47.0dB(A) | 4.8 W | 15500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.156 lb (70.76 g) |
|
|
9WL0412G300240X28MM 12V,SPLASH & DUST PROOF |
4,974 | 0.00 |
|
Datasheet |
San Ace 40W | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9LG0812J4D001FAN AXIAL 80X25.2MM 12VDC WIRE |
2,604 | 57.81 |
|
Datasheet |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.20mm | 73.0 CFM (2.04m³/min) | 0.710 in H2O (176.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 49.0dB(A) | 7.2 W | 7400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9LG0824J4D001FAN AXIAL 80X25.2MM 24VDC WIRE |
1,098 | 57.81 |
|
Datasheet |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.20mm | 73.0 CFM (2.04m³/min) | 0.710 in H2O (176.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 49.0dB(A) | 6.72 W | 7400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
55642.55010FAN BLOWER CF 316X79MM 24VDC |
4,680 | 0.00 |
|
Datasheet |
55642 | - | Obsolete | 24VDC | Rectangular - 316mm L x 70.5mm H | 79.00mm | 95.0 CFM (2.66m³/min) | - | Sleeve | Blower, Cross Flow | - | 55.0dB(A) | 8 W | - | 2 Terminals | - | - | - | - |
|

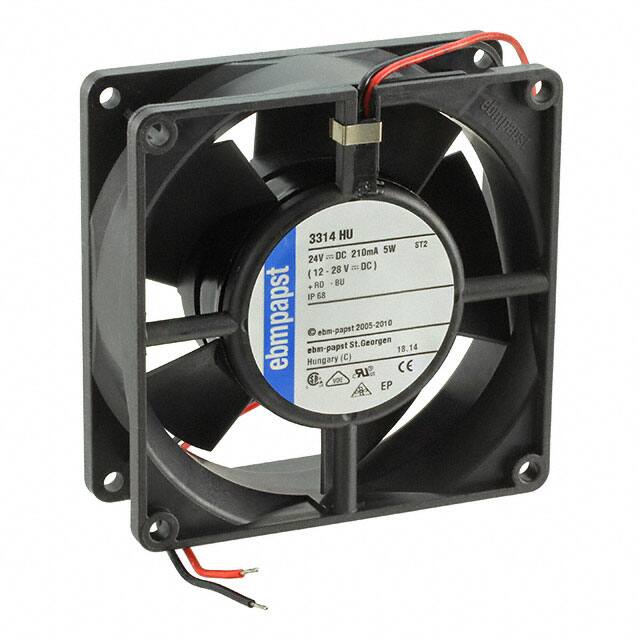

3314HUFAN AXIAL 92X32MM 24VDC WIRE |
3,106 | 0.00 |
|
Datasheet |
3300U | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 63.0 CFM (1.76m³/min) | - | Ball | Tubeaxial | - | 47.0dB(A) | 5 W | 4000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.474 lb (215 g) |
|
|
109E5712Y502FAN AXIAL 172X51MM 12VDC WIRE |
4,488 | 59.24 |
|
Datasheet |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 282.0 CFM (7.90m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 60.0dB(A) | 27.6 W | 3800 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E1712K502FAN AXIAL 172X51MM 12VDC WIRE |
4,125 | 59.24 |
|
Datasheet |
San Ace 172 | Box | Active | 12VDC | Round - 172mm Dia | 51.00mm | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 55.0dB(A) | 34.8 W | 4100 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109E1712Y502FAN AXIAL 172X51MM 12VDC WIRE |
2,162 | 59.24 |
|
Datasheet |
San Ace 172 | Box | Active | 12VDC | Round - 172mm Dia | 51.00mm | 276.0 CFM (7.73m³/min) | 0.843 in H2O (210.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 27.6 W | 3800 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
9WL0412G3001FAN AXIAL 40X28MM 12VDC WIRE |
1,435 | 55.01 |
|
Datasheet |
San Ace 40W | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 19.7 CFM (0.552m³/min) | 1.240 in H2O (308.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 4.8 W | 15500 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.156 lb (70.76 g) |
|
|
9WL0424G3001FAN AXIAL 40X28MM 24VDC WIRE |
3,689 | 55.01 |
|
Datasheet |
San Ace 40W | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 19.7 CFM (0.552m³/min) | 1.240 in H2O (308.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 4.8 W | 15500 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.156 lb (70.76 g) |
|
|
9WL0412G3D00140X28MM 12V,SPLASH & DUST PROOF |
1,140 | 0.00 |
|
Datasheet |
San Ace 40W | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
17001181AFAN AXIAL 12VDC JQD12B3E2X-E3 |
1,633 | 61.74 |
|
Datasheet |
Major | Bulk | Active | 12VDC | Rectangular/Rounded - 171.4mm L x 150.4mm H | 50.80mm | 235.0 CFM (6.58m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.3dB(A) | 27.1 W | 3400 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
109L0648H4D0160X25MM 48V,LONG LIFE,RBLS DC LC |
3,746 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
109L0648S4D0160X25MM 48V,LONG LIFE,RBLS, NOT |
4,833 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
109L0648H40260X25MM 48V,LONG LIFE,RBLS DC 0 |
3,925 | 0.00 |
|
Datasheet |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 1.92 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UR | - |
|
|
5264NNDC TUBEAXIAL FAN |
4,127 | 0.00 |
|
- |
5200N | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 127.2 CFM (3.56m³/min) | 0.430 in H2O (107.0 Pa) | Ball | Tubeaxial | Auto Restart | 46.0dB(A) | 5.9 W | 3150 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CCC, CSA, CE, EAC, VDE, UL | - |
|
|
109E5724K5D01FAN AXIAL 172X51MM 24VDC WIRE |
3,862 | 59.52 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 60.0dB(A) | 31.2 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E1724K5D01FAN AXIAL 172X51MM 24VDC WIRE |
1,931 | 59.52 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 55.0dB(A) | 31.2 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
