DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KG10ETSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
4,960 | 1.05 |
|
Datasheet |
KG | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KP06ESWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
1,716 | 1.23 |
|
Datasheet |
KP | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

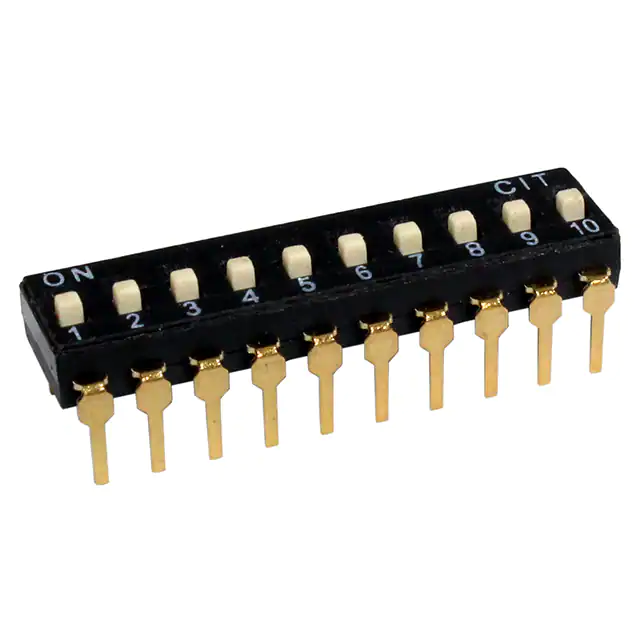

KT10EHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
3,810 | 1.74 |
|
Datasheet |
KT | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

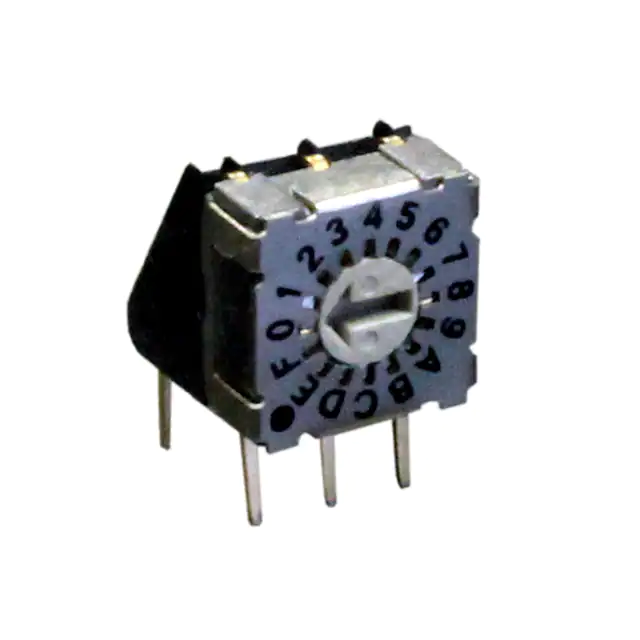

RD07A16RVBTSWITCH ROTARY DIP HEX 0.1A 50V CIT Relay and Switch |
3,096 | 3.46 |
|
Datasheet |
RD07 | Tube | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.291" (7.40mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

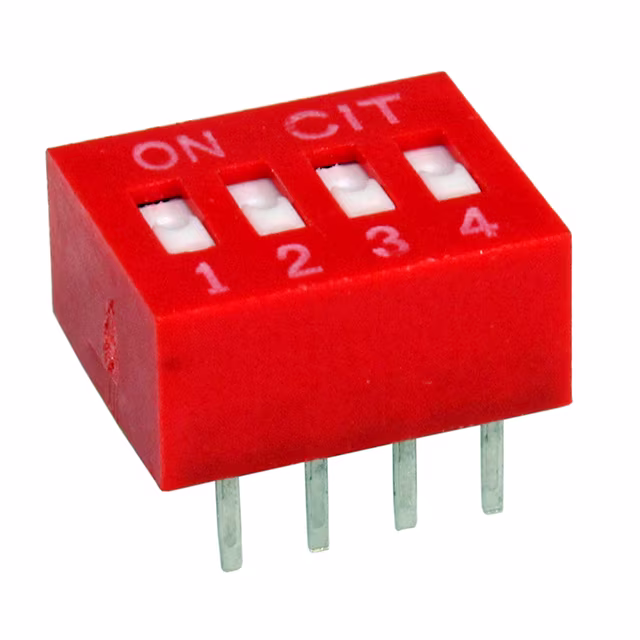

KG04RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
3,478 | 0.38 |
|
Datasheet |
KG | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KG01RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,688 | 0.38 |
|
Datasheet |
KG | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

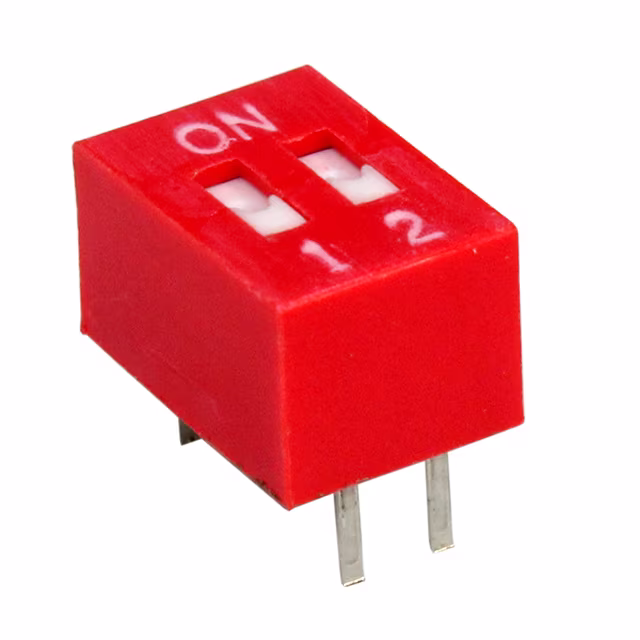

KG02RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,004 | 0.39 |
|
Datasheet |
KG | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KG04RTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
4,958 | 0.53 |
|
Datasheet |
KG | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

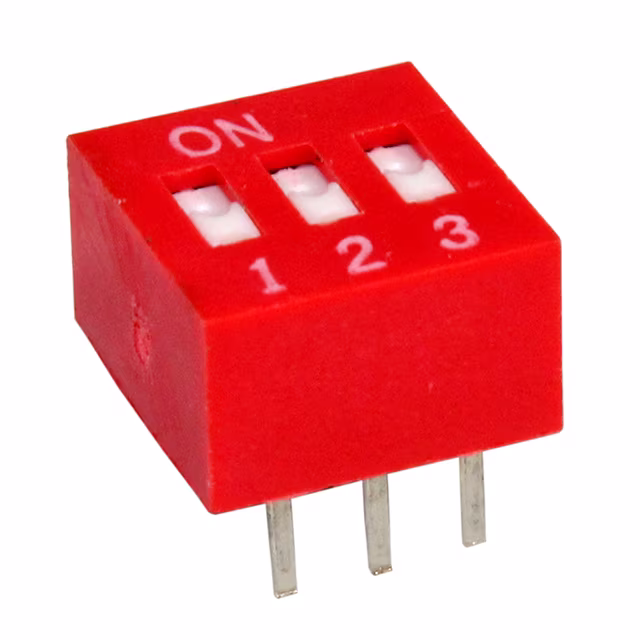

KG03RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
1,777 | 0.45 |
|
Datasheet |
KG | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KG02RTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
1,012 | 0.55 |
|
Datasheet |
KG | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
