DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RD10RA8CGTSW ROTARY DIP OCT COMP 0.15A 50V CIT Relay and Switch |
3,959 | 3.00 |
|
Datasheet |
RD10 | Tube | Active | Octal Complement | 8 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD10RA16RVATSWITCH ROTARY DIP HEX 0.15A 50V CIT Relay and Switch |
4,264 | 3.23 |
|
Datasheet |
RD10 | Tube | Active | Hexadecimal | 16 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KR03RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
560 | 1.06 |
|
Datasheet |
KR | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KJ02RTTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
548 | 1.21 |
|
Datasheet |
KJ | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

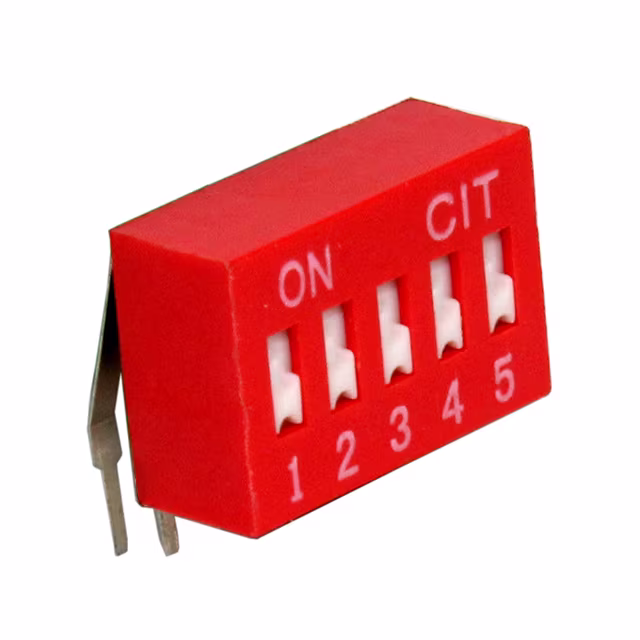

KR05RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
455 | 1.18 |
|
Datasheet |
KR | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KP06RSWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
476 | 1.23 |
|
Datasheet |
KP | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KR06ESWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
248 | 1.29 |
|
Datasheet |
KR | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

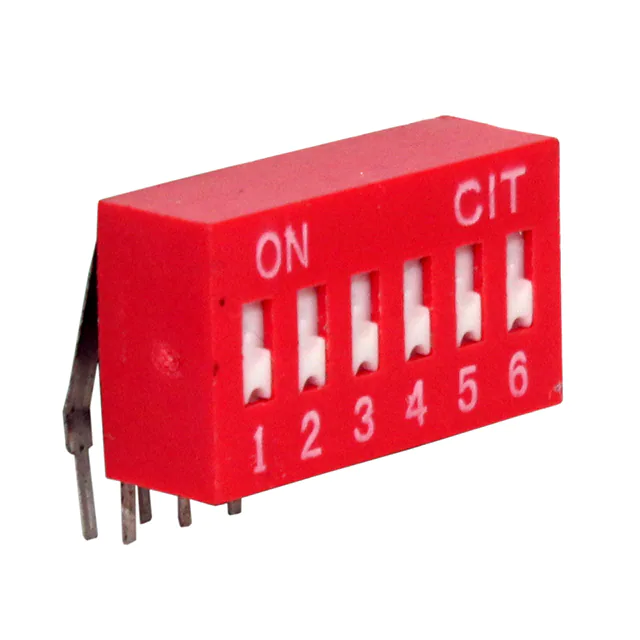

KR06RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
228 | 1.29 |
|
Datasheet |
KR | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

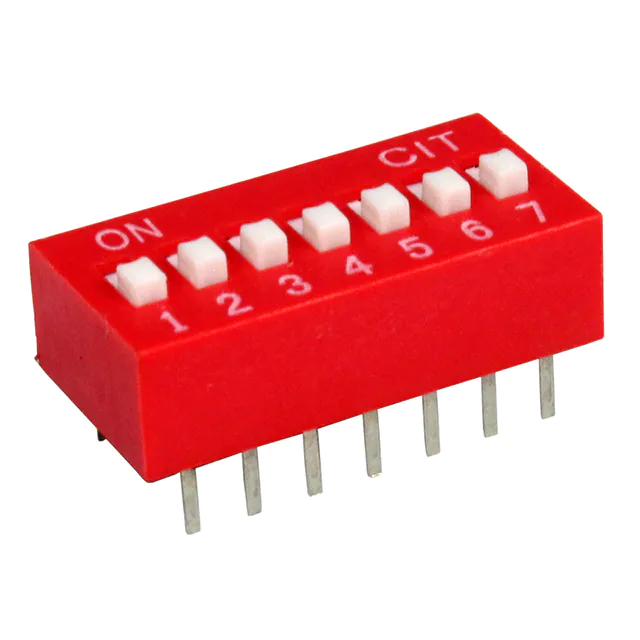

KG07ESWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
523 | 0.87 |
|
Datasheet |
KG | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

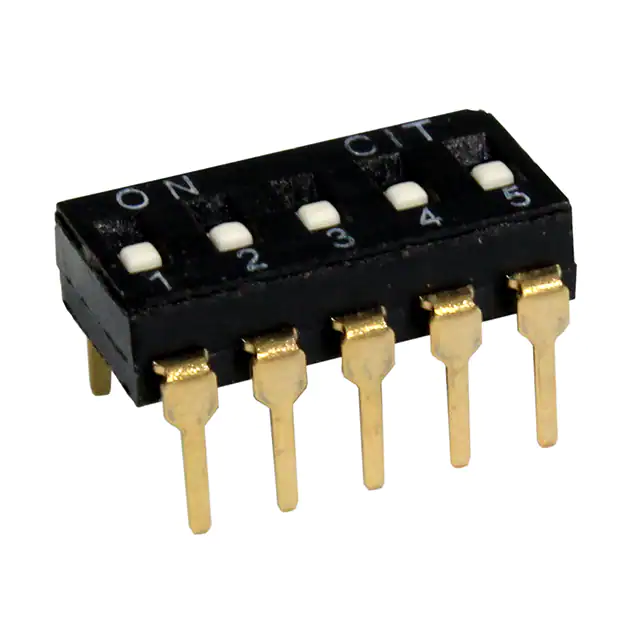

KT05RHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
419 | 1.34 |
|
Datasheet |
KT | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
