DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

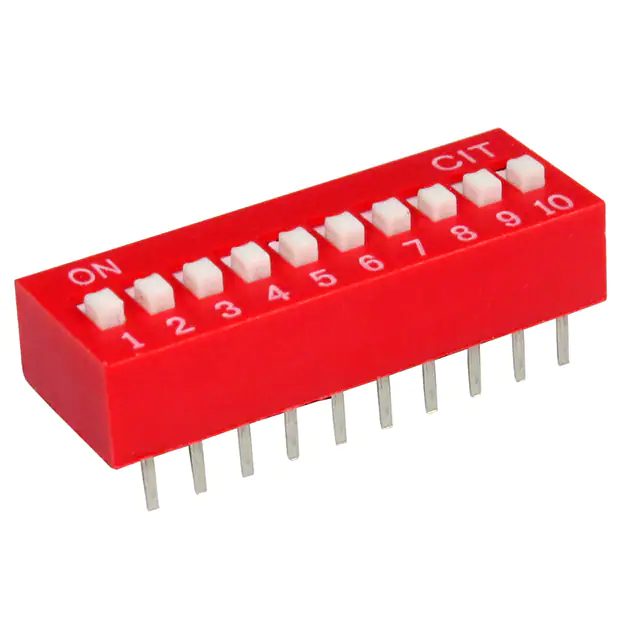

KG10ESWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
216 | 1.04 |
|
Datasheet |
KG | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

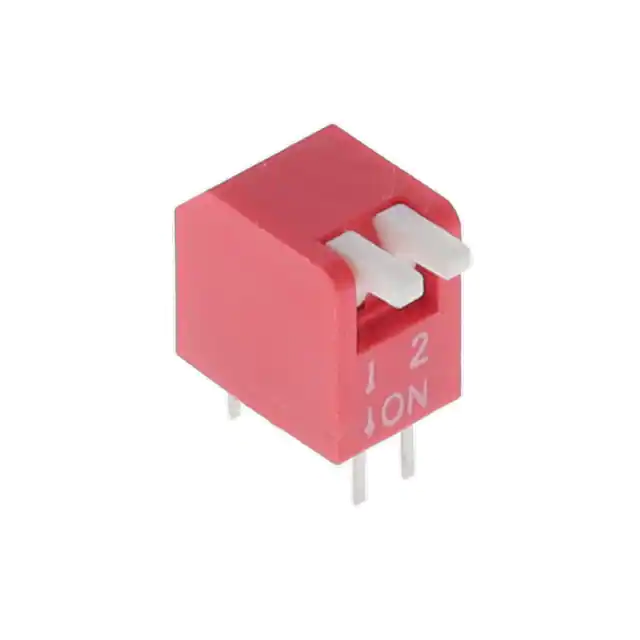

KP02ESWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
488 | 1.01 |
|
Datasheet |
KP | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

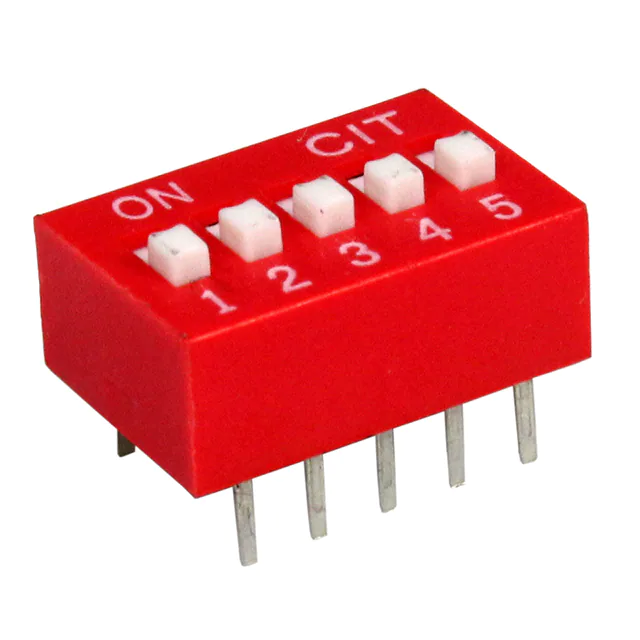

KG05ESWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
643 | 0.76 |
|
Datasheet |
KG | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

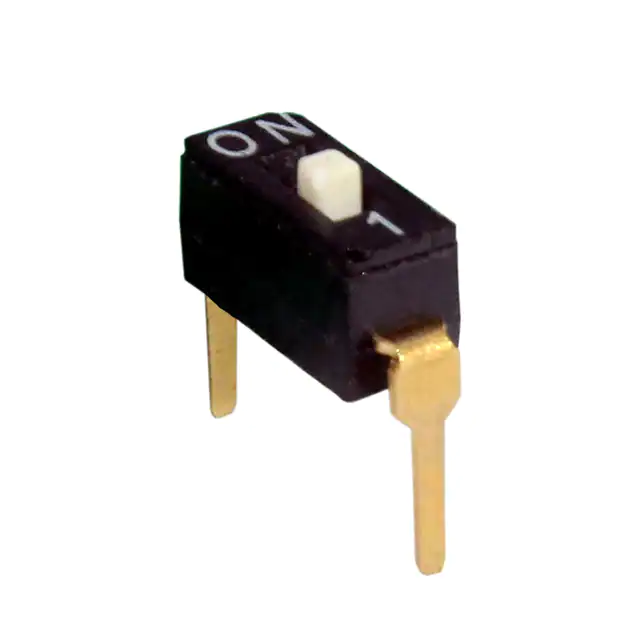

KT01EHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
121 | 1.23 |
|
Datasheet |
KT | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

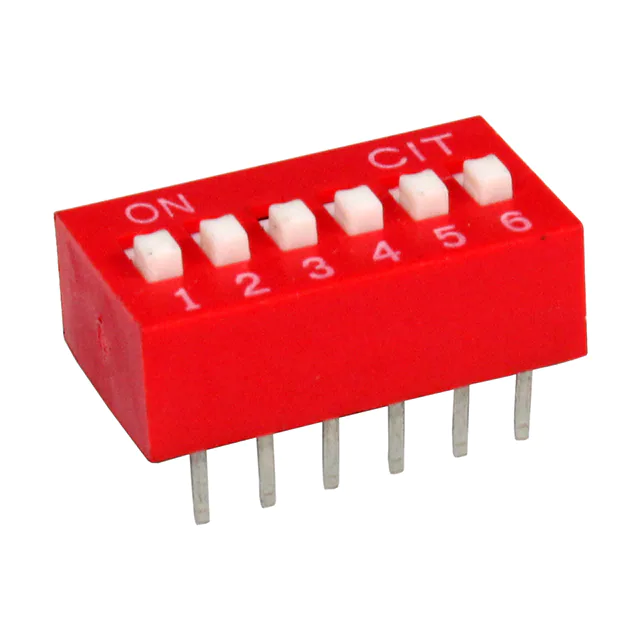

KG06ESWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
758 | 0.82 |
|
Datasheet |
KG | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

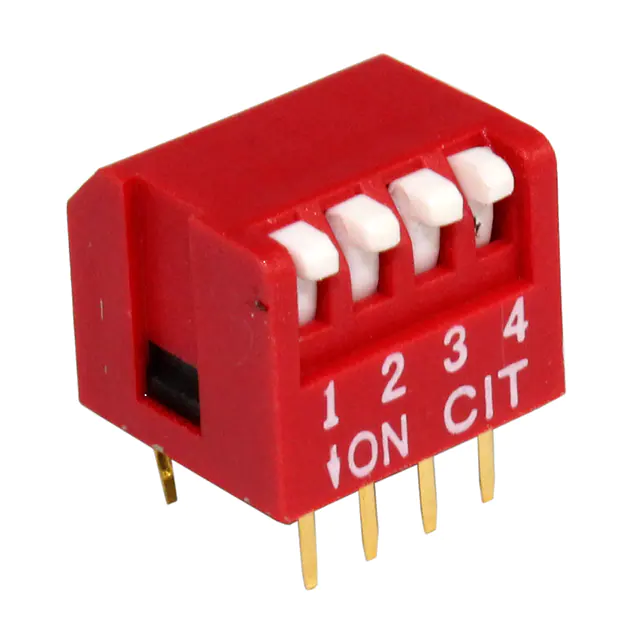

KP04RSWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
664 | 1.08 |
|
Datasheet |
KP | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

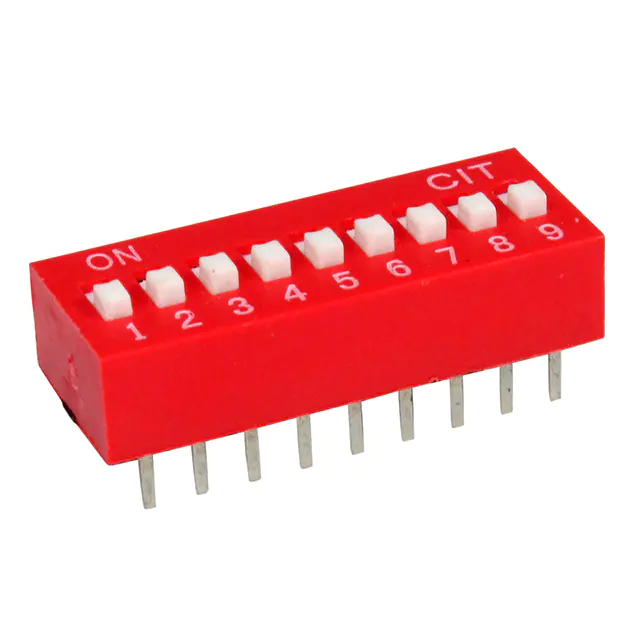

KG09ESWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
523 | 0.98 |
|
Datasheet |
KG | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

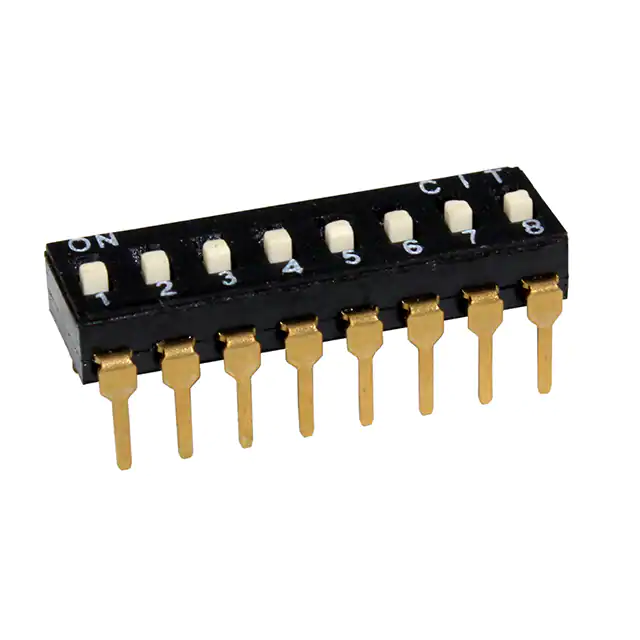

KT08EHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,185 | 1.47 |
|
Datasheet |
KT | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

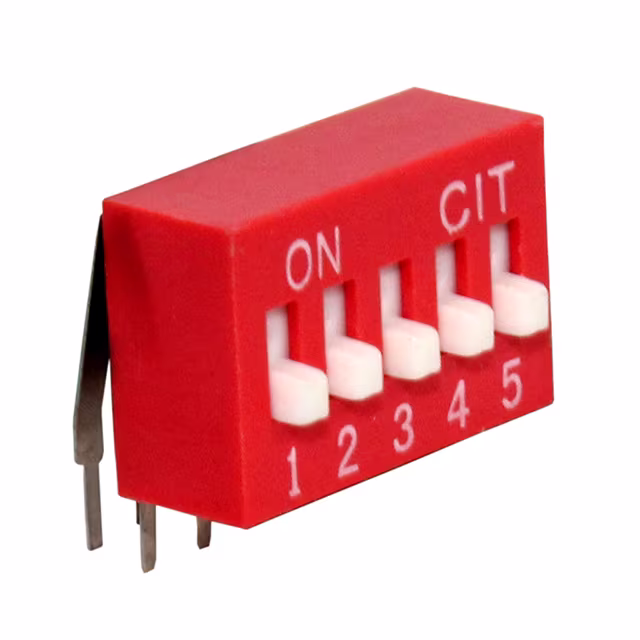

KR05ESWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
3,156 | 1.18 |
|
Datasheet |
KR | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

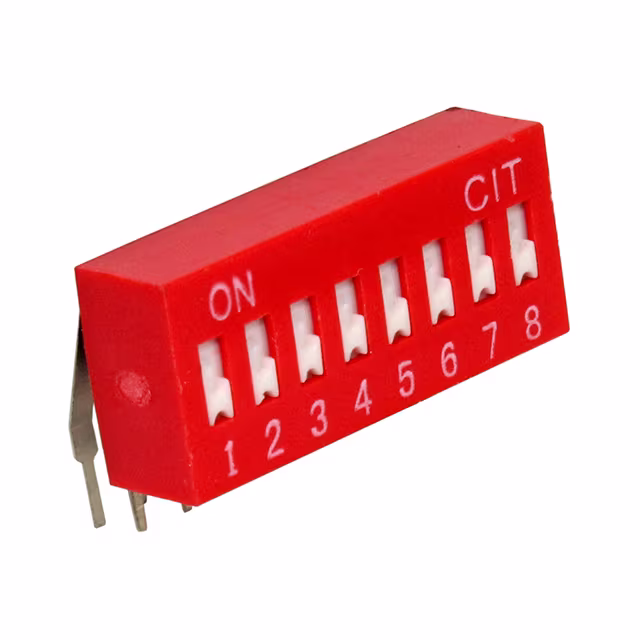

KR08RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
1,758 | 1.44 |
|
Datasheet |
KR | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
