onsemi NTTFS005N04CTAG

Part No.:
NTTFS005N04CTAG
Manufacturer:
onsemi
Category:
FETs, MOSFETs
Package:
8-PowerWDFN
Datasheet:
Chuangxin CloudNTTFS005N04CTAG.pdf
Description:
MOSFET N-CH 40V 17A/69A 8WDFN
Quantity:

Unit Price:$0

Ext Price:$0

Payment:
Payment
Shipping:
Shipping

Product details

  • Specifications
  • FAQ
  • Comparison
  • Tags
Product attributes
Attribute value
Manufacturer:
onsemi
Series:
-
Package/Case:
8-PowerWDFN
Packaging:
Tape & Reel (TR)
Product Status:
Active
FET Type:
N-Channel
Technology:
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):
40 V
Current - Continuous Drain (Id) @ 25°C:
17A (Ta), 69A (Tc)
Drive Voltage (Max Rds On, Min Rds On):
10V
Rds On (Max) @ Id, Vgs:
5.6mOhm @ 35A, 10V
Vgs(th) (Max) @ Id:
3.5V @ 40µA
Gate Charge (Qg) (Max) @ Vgs:
16 nC @ 10 V
Vgs (Max):
±20V
Input Capacitance (Ciss) (Max) @ Vds:
1000 pF @ 25 V
FET Feature:
-
Power Dissipation (Max):
3.1W (Ta), 50W (Tc)
Operating Temperature:
-55°C ~ 175°C (TJ)
Grade:
-
Qualification:
-
Mounting Type:
Surface Mount
Supplier Device Package:
8-WDFN (3.3x3.3)
Datasheet:
Chuangxin CloudNTTFS005N04CTAG.pdf

1. How to order NTTFS005N04CTAG on Chuangxin Cloud?

Currently, Chuangxin Cloud only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does Chuangxin Cloud guarantee that NTTFS005N04CTAG is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the NTTFS005N04CTAG. All suppliers must pass our qualification reviews before they can publish their products including NTTFS005N04CTAG on Chuangxin Cloud; we pay more attention to the channels and quality of NTTFS005N04CTAG products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the NTTFS005N04CTAG price and inventory displayed accurate?

The price and inventory of NTTFS005N04CTAG fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of NTTFS005N04CTAG?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the NTTFS005N04CTAG we delivered, we will accept the replacement or return of the NTTFS005N04CTAG only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of NTTFS005N04CTAG.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations

7.How to contact us to get technical supports, such as NTTFS005N04CTAG pin diagram, NTTFS005N04CTAG datasheet?

If you need any after-sales service, please do not hesitate to contact us.

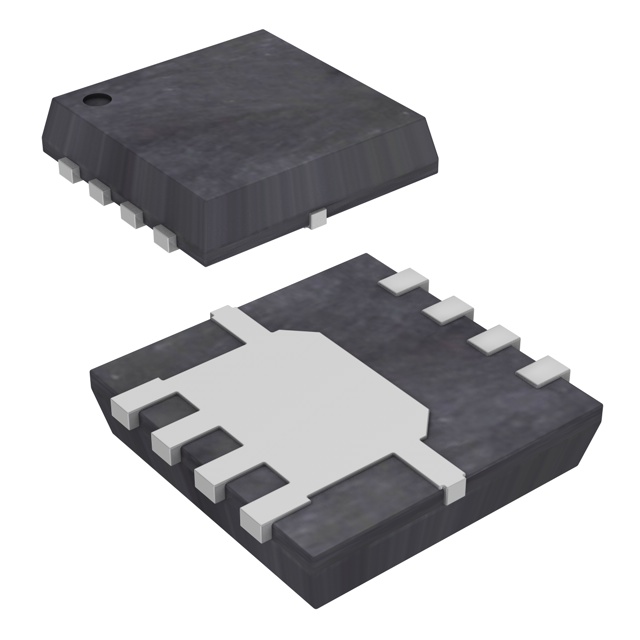

Image NTTFS005N04CTAG
