Quectel MC60CA-04-CTK

Part No.:
MC60CA-04-CTK
Manufacturer:
Quectel
Category:
RF Transceiver Modules and Modems
Package:
Module
Description:
RF TXRX MOD CELL NAV SMD
Quantity:

Unit Price:$0

Ext Price:$0

Payment:
Payment
Shipping:
Shipping

Product details

  • Specifications
  • FAQ
  • Comparison
  • Tags
Product attributes
Attribute value
Manufacturer:
Quectel
Series:
MC60
Package/Case:
Module
Packaging:
Tape & Reel (TR)
Product Status:
Obsolete
Programmable:
Not Verified
RF Family/Standard:
Cellular, Navigation
Protocol:
BeiDou, Galileo, GLONASS, GPS, GNSS, GSM, GPRS
Modulation:
-
Frequency:
850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz
Data Rate:
85.6kbps
Power - Output:
-
Sensitivity:
-167dBm
Serial Interfaces:
ADC, GPIO, PCM, UART
Antenna Type:
Antenna Not Included
Utilized IC / Part:
-
Memory Size:
-
Voltage - Supply:
3.3V ~ 4.6V
Current - Receiving:
0.9mA ~ 1.2mA
Current - Transmitting:
-
Mounting Type:
Surface Mount
Operating Temperature:
-35°C ~ 75°C

1. How to order MC60CA-04-CTK on Chuangxin Cloud?

Currently, Chuangxin Cloud only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does Chuangxin Cloud guarantee that MC60CA-04-CTK is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the MC60CA-04-CTK. All suppliers must pass our qualification reviews before they can publish their products including MC60CA-04-CTK on Chuangxin Cloud; we pay more attention to the channels and quality of MC60CA-04-CTK products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the MC60CA-04-CTK price and inventory displayed accurate?

The price and inventory of MC60CA-04-CTK fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of MC60CA-04-CTK?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the MC60CA-04-CTK we delivered, we will accept the replacement or return of the MC60CA-04-CTK only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of MC60CA-04-CTK.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations

7.How to contact us to get technical supports, such as MC60CA-04-CTK pin diagram, MC60CA-04-CTK datasheet?

If you need any after-sales service, please do not hesitate to contact us.

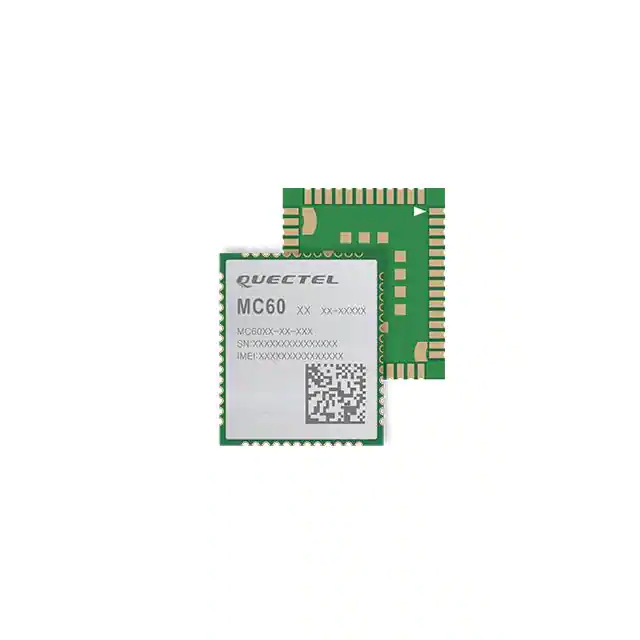

Image MC60CA-04-STD MC60CA-04-AMT MC60CA-04-CTK MC60CA-04-PST
Part Number MC60CA-04-STD MC60CA-04-AMT MC60CA-04-CTK MC60CA-04-PST
Manufacturer Quectel Quectel Quectel Quectel
Series MC60 MC60 MC60 MC60
Package/Case Module Module Module Module
Packaging Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Product Status Obsolete Obsolete Obsolete Obsolete
Programmable Not Verified Not Verified Not Verified Not Verified
RF Family/Standard Cellular, Navigation Cellular, Navigation Cellular, Navigation Cellular, Navigation
Protocol BeiDou, Galileo, GLONASS, GPS, GNSS, GSM, GPRS BeiDou, Galileo, GLONASS, GPS, GNSS, GSM, GPRS BeiDou, Galileo, GLONASS, GPS, GNSS, GSM, GPRS BeiDou, Galileo, GLONASS, GPS, GNSS, GSM, GPRS
Modulation - - - -
Frequency 850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz 850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz 850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz 850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz
Data Rate 85.6kbps 85.6kbps 85.6kbps 85.6kbps
Power - Output - - - -
Sensitivity -167dBm -167dBm -167dBm -167dBm
Serial Interfaces ADC, GPIO, PCM, UART ADC, GPIO, PCM, UART ADC, GPIO, PCM, UART ADC, GPIO, PCM, UART
Antenna Type Antenna Not Included Antenna Not Included Antenna Not Included Antenna Not Included
Utilized IC / Part - - - -
Memory Size - - - -
Voltage - Supply 3.3V ~ 4.6V 3.3V ~ 4.6V 3.3V ~ 4.6V 3.3V ~ 4.6V
Current - Receiving 0.9mA ~ 1.2mA 0.9mA ~ 1.2mA 0.9mA ~ 1.2mA 0.9mA ~ 1.2mA
Current - Transmitting - - - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Operating Temperature -35°C ~ 75°C -35°C ~ 75°C -35°C ~ 75°C -35°C ~ 75°C
