CIT Relay and Switch J107F1CS1212VDC.36

Part No.:
J107F1CS1212VDC.36
Manufacturer:
CIT Relay and Switch
Category:
Power Relays, Over 2 Amps
Package:
Datasheet:
Chuangxin CloudJ107F1CS1212VDC.36.pdf
Description:
RELAY GEN PURPOSE SPDT 12A 12V
Quantity:

Unit Price:$0

Ext Price:$0

Payment:
Payment
Shipping:
Shipping

Product details

  • Specifications
  • FAQ
  • Comparison
  • Tags
Product attributes
Attribute value
Manufacturer:
CIT Relay and Switch
Series:
J107F
Packaging:
Tube
Product Status:
Active
Mounting Type:
Through Hole
Coil Voltage:
12VDC
Contact Form:
SPDT (1 Form C)
Contact Rating (Current):
12 A
Switching Voltage:
380VAC, 110VDC - Max
Load - Max Switching:
4560VA, 1320W
Coil Current:
30 mA
Coil Type:
Non Latching
Features:
-
Termination Style:
PC Pin
Seal Rating:
Sealed - Fully
Coil Insulation:
Class F
Must Operate Voltage:
9 VDC
Must Release Voltage:
1.2 VDC
Operate Time:
10 ms
Release Time:
5 ms
Operating Temperature:
-55°C ~ 125°C
Contact Material:
Silver Tin Oxide (AgSnO)
Relay Type:
General Purpose
Grade:
-
Qualification:
-
Datasheet:
Chuangxin CloudJ107F1CS1212VDC.36.pdf

1. How to order J107F1CS1212VDC.36 on Chuangxin Cloud?

Currently, Chuangxin Cloud only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does Chuangxin Cloud guarantee that J107F1CS1212VDC.36 is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the J107F1CS1212VDC.36. All suppliers must pass our qualification reviews before they can publish their products including J107F1CS1212VDC.36 on Chuangxin Cloud; we pay more attention to the channels and quality of J107F1CS1212VDC.36 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the J107F1CS1212VDC.36 price and inventory displayed accurate?

The price and inventory of J107F1CS1212VDC.36 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of J107F1CS1212VDC.36?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the J107F1CS1212VDC.36 we delivered, we will accept the replacement or return of the J107F1CS1212VDC.36 only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of J107F1CS1212VDC.36.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations

7.How to contact us to get technical supports, such as J107F1CS1212VDC.36 pin diagram, J107F1CS1212VDC.36 datasheet?

If you need any after-sales service, please do not hesitate to contact us.

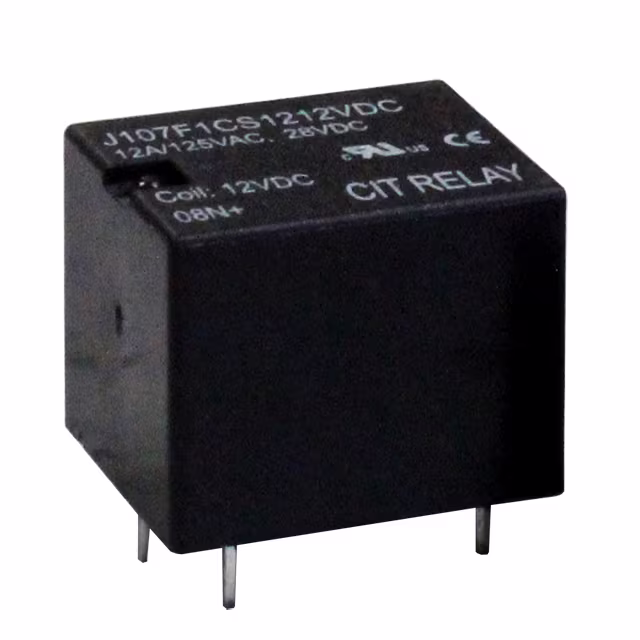

Image J107F1CS1212VDC.36 J107F1CS1212VDC.45 J107F1CS1212VDC.80
Part Number J107F1CS1212VDC.36 J107F1CS1212VDC.45 J107F1CS1212VDC.80
Manufacturer CIT Relay and Switch CIT Relay and Switch CIT Relay and Switch
Series J107F J107F J107F
Packaging Tube Tube Tube
Product Status Active Active Active
Mounting Type Through Hole Through Hole Through Hole
Coil Voltage 12VDC 12VDC 12VDC
Contact Form SPDT (1 Form C) SPDT (1 Form C) SPDT (1 Form C)
Contact Rating (Current) 12 A 12 A 12 A
Switching Voltage 380VAC, 110VDC - Max 380VAC, 110VDC - Max 380VAC, 110VDC - Max
Load - Max Switching 4560VA, 1320W 4560VA, 1320W 4560VA, 1320W
Coil Current 30 mA 30 mA 30 mA
Coil Type Non Latching Non Latching Non Latching
Features - - -
Termination Style PC Pin PC Pin PC Pin
Seal Rating Sealed - Fully Sealed - Fully Sealed - Fully
Coil Insulation Class F Class F Class F
Must Operate Voltage 9 VDC 9 VDC 9 VDC
Must Release Voltage 1.2 VDC 1.2 VDC 1.2 VDC
Operate Time 10 ms 10 ms 10 ms
Release Time 5 ms 5 ms 5 ms
Operating Temperature -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C
Contact Material Silver Tin Oxide (AgSnO) Silver Tin Oxide (AgSnO) Silver Tin Oxide (AgSnO)
Relay Type General Purpose General Purpose General Purpose
Grade - - -
Qualification - - -
