Solder Stencils, Templates
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Positions | Pitch | Outer Dimension | Inner Dimension | Thermal Center Pad | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DR254P08-SDUAL ROW 2.54MM PITCH 8-PIN CONN |
4,786 | 11.59 |
|
- |
Proto-Advantage DR | Bulk | Active | - | 8 | 0.100" (2.54mm) | - | - | - | Stainless Steel |
|
|
DR254P10-SDUAL ROW 2.54MM PITCH 10-PIN CON |
3,671 | 11.59 |
|
- |
Proto-Advantage DR | Bulk | Active | - | 10 | 0.100" (2.54mm) | - | - | - | Stainless Steel |
|
|
DR254P12-SDUAL ROW 2.54MM PITCH 12-PIN CON |
2,996 | 11.59 |
|
- |
Proto-Advantage DR | Bulk | Active | - | 12 | 0.100" (2.54mm) | - | - | - | Stainless Steel |
|
|
DR254P14-SDUAL ROW 2.54MM PITCH 14-PIN CON |
2,968 | 11.59 |
|
- |
Proto-Advantage DR | Bulk | Active | - | 14 | 0.100" (2.54mm) | - | - | - | Stainless Steel |
|
|
DR254P16-SDUAL ROW 2.54MM PITCH 16-PIN CON |
4,851 | 11.59 |
|
- |
Proto-Advantage DR | Bulk | Active | - | 16 | 0.100" (2.54mm) | - | - | - | Stainless Steel |
|
|
DR254P18-SDUAL ROW 2.54MM PITCH 18-PIN CON |
2,355 | 11.59 |
|
- |
Proto-Advantage DR | Bulk | Active | - | 18 | 0.100" (2.54mm) | - | - | - | Stainless Steel |
|
|
DR254P20-SDUAL ROW 2.54MM PITCH 20-PIN CON |
4,219 | 11.59 |
|
- |
Proto-Advantage DR | Bulk | Active | - | 20 | 0.100" (2.54mm) | - | - | - | Stainless Steel |
|
|
DR254P22-SDUAL ROW 2.54MM PITCH 22-PIN CON |
1,032 | 11.59 |
|
- |
Proto-Advantage DR | Bulk | Active | - | 22 | 0.100" (2.54mm) | - | - | - | Stainless Steel |
|
|
DR254P24-SDUAL ROW 2.54MM PITCH 24-PIN CON |
3,503 | 11.59 |
|
- |
Proto-Advantage DR | Bulk | Active | - | 24 | 0.100" (2.54mm) | - | - | - | Stainless Steel |
|
|
DR254P40-SDUAL ROW 2.54MM PITCH 40-PIN CON |
1,419 | 11.59 |
|
- |
Proto-Advantage DR | Bulk | Active | - | 40 | 0.100" (2.54mm) | - | - | - | Stainless Steel |
|
|
DR254P80-SDUAL ROW 2.54MM PITCH 80-PIN CON |
3,586 | 11.59 |
|
- |
Proto-Advantage DR | Bulk | Active | - | 80 | 0.100" (2.54mm) | - | - | - | Stainless Steel |
|

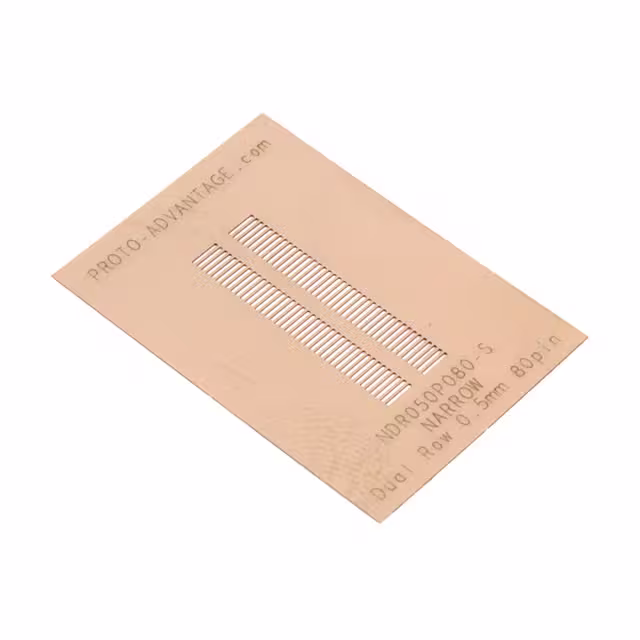

NDR050P080-SNARROW DUAL ROW 0.5MM PITCH 80-P |
4,674 | 11.59 |
|
Datasheet |
Proto-Advantage NDR | Bulk | Active | - | 80 | 0.020" (0.50mm) | - | - | - | Stainless Steel |
|

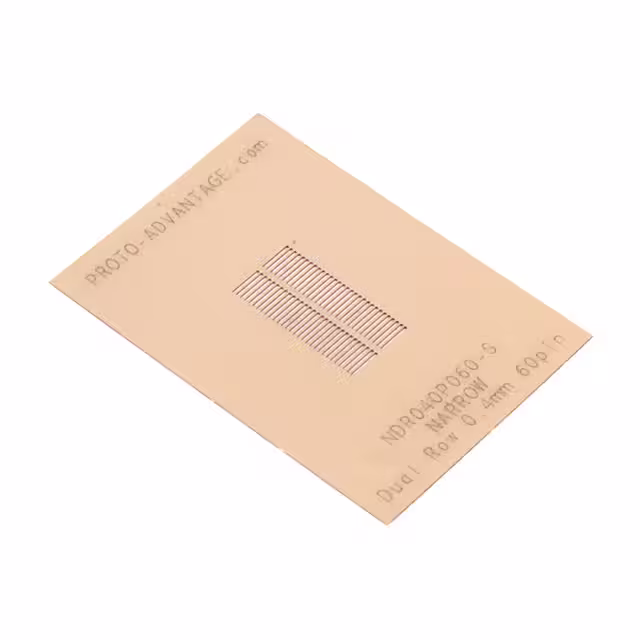

NDR040P060-SNARROW DUAL ROW 0.4MM PITCH 60-P |
3,613 | 11.59 |
|
Datasheet |
Proto-Advantage NDR | Bulk | Active | - | 60 | 0.016" (0.40mm) | - | - | - | Stainless Steel |
|

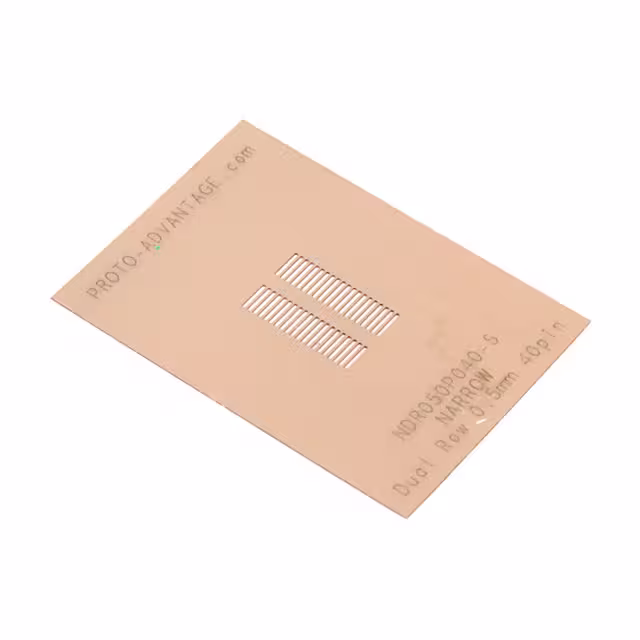

NDR050P040-SNARROW DUAL ROW 0.5MM PITCH 40-P |
3,041 | 11.59 |
|
Datasheet |
Proto-Advantage NDR | Bulk | Active | - | 40 | 0.020" (0.50mm) | - | - | - | Stainless Steel |
|
|
IPC0139-STQFP-80 (0.8MM PITCH, 14X20MM BO |
3,369 | 12.93 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | TQFP | 80 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.787" L x 0.551" W (20.00mm x 14.00mm) | - | Stainless Steel |
|
|
IPC0188-SQFN-28/LFCSP-28 (0.65MM PITCH, 6 |
2,721 | 12.93 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 28 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.102" L x 0.079" W (2.60mm x 2.00mm) | Stainless Steel |
|
|
IPC0190-SRN4020 (1.2MM PITCH, 19.5X11.5MM |
2,499 | 12.93 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | RN | 24 | 0.047" (1.20mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.768" L x 0.453" W (19.50mm x 11.50mm) | - | Stainless Steel |
|
|
IPC0191-SRN42 (1.2MM PITCH, 25.8X13.4MM B |
3,332 | 12.93 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | RN | 32 | 0.047" (1.20mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 1.016" L x 0.528" W (25.80mm x 13.40mm) | - | Stainless Steel |
|
|
IPC0192-SQFN-36/LFCSP-36 (5 CENTER PADS) |
4,163 | 12.93 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 36 | 0.035" (0.90mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.433" L x 0.354" W (11.00mm x 9.00mm) | 0.122" L x 0.087" W (3.10mm x 2.20mm) | Stainless Steel |
|
|
CN0073-SUSB - C (USB 3.1 GEN 2 SUPERSPEE |
1,822 | 12.93 |
|
- |
Proto-Advantage CN | Bulk | Active | - | - | - | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | - | Stainless Steel |
