Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

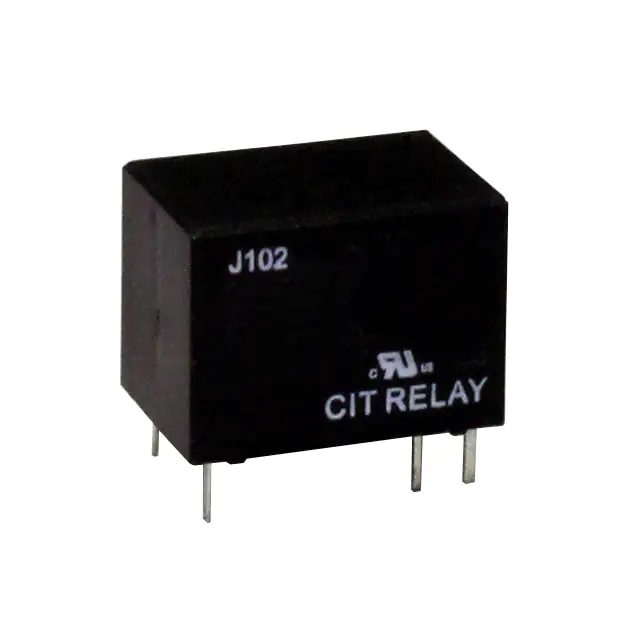

J1021AS15VDC.20RELAY GENERAL PURPOSE SPST 1A 5V CIT Relay and Switch |
4,088 | 0.50 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
J1021CS15VDC.45RELAY GENERAL PURPOSE SPDT 1A 5V CIT Relay and Switch |
1,543 | 0.50 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 89.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
J1021AS19VDC.36RELAY GENERAL PURPOSE SPST 1A 9V CIT Relay and Switch |
2,450 | 0.50 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
J1021CS16VDC.20RELAY GENERAL PURPOSE SPDT 1A 6V CIT Relay and Switch |
2,624 | 0.50 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
J1021AS19VDC.45RELAY GENERAL PURPOSE SPST 1A 9V CIT Relay and Switch |
4,770 | 0.50 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
J1021AS15VDC.36RELAY GENERAL PURPOSE SPST 1A 5V CIT Relay and Switch |
2,977 | 0.50 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
J1021AS19VDC.20RELAY GENERAL PURPOSE SPST 1A 9V CIT Relay and Switch |
3,575 | 0.50 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
J1021AS16VDC.20RELAY GENERAL PURPOSE SPST 1A 6V CIT Relay and Switch |
3,945 | 0.50 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
J1021AS16VDC.45RELAY GENERAL PURPOSE SPST 1A 6V CIT Relay and Switch |
4,001 | 0.50 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
J1021AS16VDC.36RELAY GENERAL PURPOSE SPST 1A 6V CIT Relay and Switch |
3,170 | 0.50 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
