Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

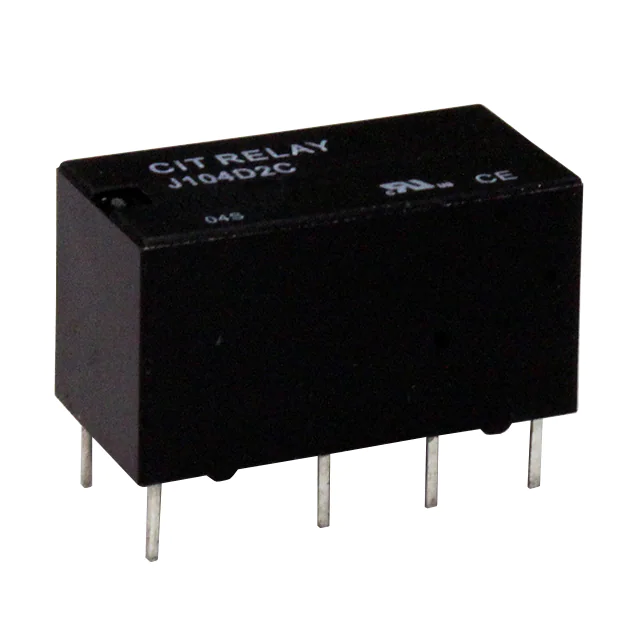

J104D2C6VDC.15SRELAY GENERAL PURPOSE DPDT 2A 6V CIT Relay and Switch |
2,469 | 1.34 |
|
Datasheet |
J104D | Tube | Active | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | 250VAC, 100VDC - Max | 500VA, 200W | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
J1031C9VDC.15SRELAY GENERAL PURPOSE SPDT 2A 9V CIT Relay and Switch |
675 | 1.29 |
|
Datasheet |
J103 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 2 A | 125VAC, 60VDC - Max | 250VA, 120W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 4.5 ms | 1.5 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

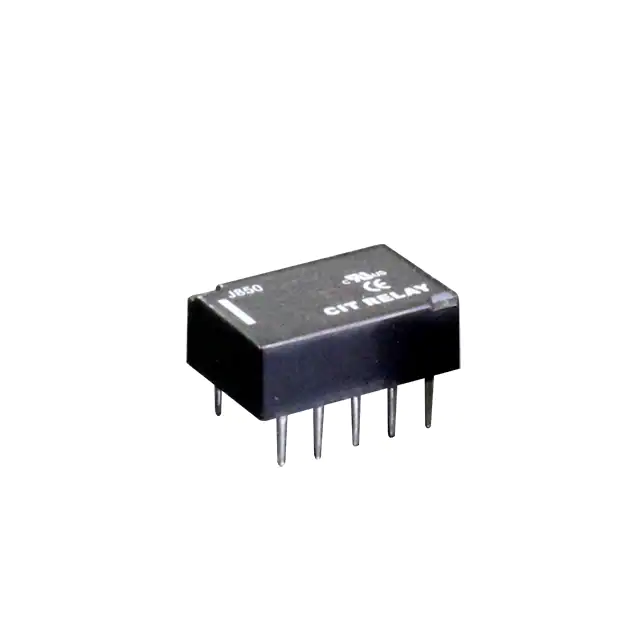

J8502CS24VDCRELAY GEN PURPOSE DPDT 1A 24V CIT Relay and Switch |
2,664 | 2.32 |
|
Datasheet |
J850 | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
J8502CS12VDCRELAY GEN PURPOSE DPDT 1A 12V CIT Relay and Switch |
2,935 | 2.14 |
|
Datasheet |
J850 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 11.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
J850SM2CS5VDCRELAY GENERAL PURPOSE DPDT 1A 5V CIT Relay and Switch |
1,472 | 2.02 |
|
Datasheet |
J850SM | Tape & Reel (TR) | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 28.1 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
J850SM2CS12VDCRELAY GEN PURPOSE DPDT 1A 12V CIT Relay and Switch |
945 | 2.05 |
|
Datasheet |
J850SM | Tape & Reel (TR) | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 11.7 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 9 VDC | 1.2 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
J850SM2CS24VDCRELAY GEN PURPOSE DPDT 1A 24V CIT Relay and Switch |
1,693 | 2.17 |
|
Datasheet |
J850SM | Tape & Reel (TR) | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 8.3 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 18 VDC | 2.4 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
J850SM2CS3VDCRELAY GENERAL PURPOSE DPDT 1A 3V CIT Relay and Switch |
500 | 2.17 |
|
Datasheet |
J850SM | Tape & Reel (TR) | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 46.7 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
J8502CS3VDCRELAY GENERAL PURPOSE DPDT 1A 3V CIT Relay and Switch |
322 | 2.32 |
|
Datasheet |
J850 | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 46.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
J1031C5VDC.15SRELAY GENERAL PURPOSE SPDT 2A 5V CIT Relay and Switch |
1,964 | 1.29 |
|
Datasheet |
J103 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 2 A | 125VAC, 60VDC - Max | 250VA, 120W | 29.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 4.5 ms | 1.5 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
