Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EA2-24NURELAY GEN PURPOSE DPDT 1A 24V |
7,508 | 2.87 |
|
Datasheet |
EA2 | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 8.3 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
UD2-5SNUN-LRELAY GENERAL PURPOSE DPDT 1A 5V |
3,154 | 2.84 |
|
Datasheet |
UD2 | Tape & Reel (TR) | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 20 mA | Latching, Single Coil | - | Gull Wing | - | - | 3.75 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
EE2-5NUX-LRELAY GENERAL PURPOSE DPDT 2A 5V |
2,284 | 2.87 |
|
Datasheet |
EE2 | Tape & Reel (TR) | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 28 mA | Non Latching | - | Gull Wing | - | - | 3.75 VDC | 0.5 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
G5V-2-H1 DC9RELAY GENERAL PURPOSE DPDT 1A 9V |
6,822 | 3.68 |
|
Datasheet |
G5V-2 | Tube | Active | Through Hole | 9VDC | DPDT (2 Form C) | 1 A | 125VAC, 125VDC - Max | - | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.45 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
UA2-5NERELAY GENERAL PURPOSE DPDT 1A 5V |
1,926 | 2.90 |
|
Datasheet |
UA2 | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 20 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
TX2SA-3VRELAY TELECOM DPDT 2A 3V |
983 | 3.29 |
|
Datasheet |
TX | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 46.7 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|

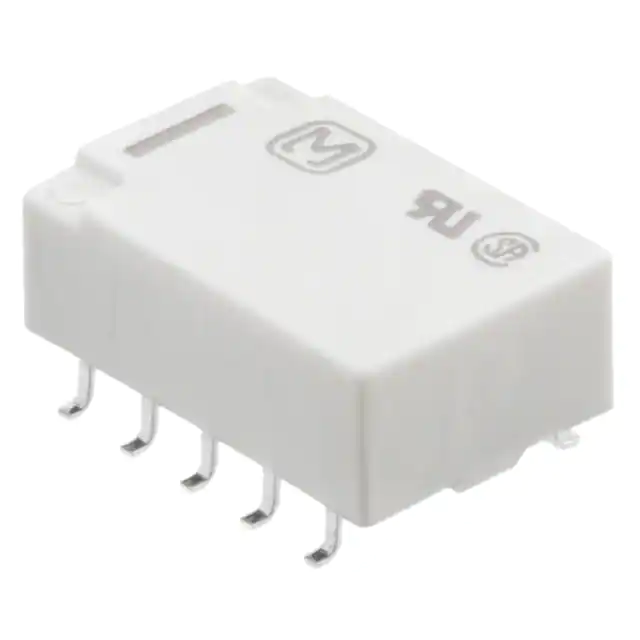

TQ2SS-5V-ZRELAY TELECOM DPDT 2A 5V |
14,117 | 3.12 |
|
Datasheet |
TQ-SMD | Tape & Reel (TR) | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 28.1 mA | Non Latching | - | Gull Wing | - | - | 3.75 VDC | 0.5 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
|
EA2-3TNURELAY GENERAL PURPOSE DPDT 1A 3V |
2,869 | 1.70 |
|
Datasheet |
EA2 | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 46.7 mA | Latching, Dual Coil | - | PC Pin | - | - | 2.25 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|

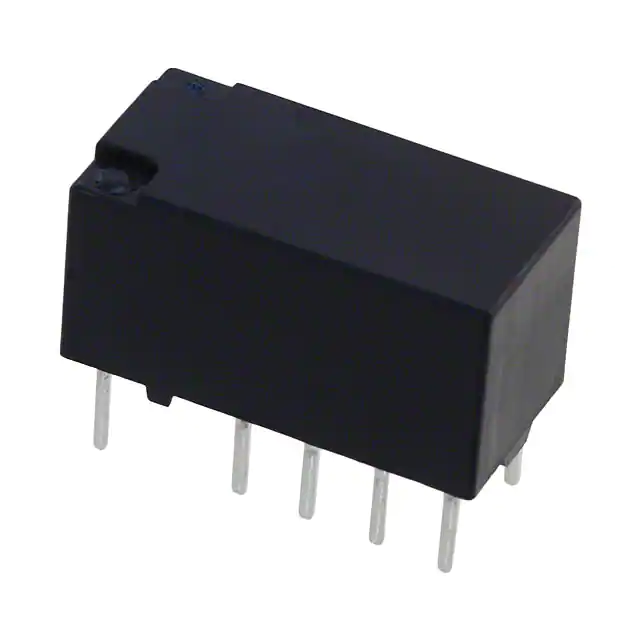

TX2-4.5VRELAY TELECOM DPDT 2A 4.5V |
425 | 2.04 |
|
Datasheet |
TX | Tube | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 31 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.38 VDC | 0.45 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
EB2-24NU-LRELAY GEN PURPOSE DPDT 1A 24V |
2,343 | 2.99 |
|
Datasheet |
EB2 | Tape & Reel (TR) | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 8.3 mA | Non Latching | - | Gull Wing | - | - | 18 VDC | 2.4 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
TX2SA-4.5V-ZRELAY TELECOM DPDT 2A 4.5V |
489 | 3.28 |
|
Datasheet |
TX | Tape & Reel (TR) | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 31 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 3.38 VDC | 0.45 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
TQ2SA-6VRELAY TELECOM DPDT 2A 6V |
1,825 | 3.31 |
|
Datasheet |
TQ-SMD | Tube | Active | Surface Mount | 6VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 23.3 mA | Non Latching | - | Gull Wing | - | - | 4.5 VDC | 0.6 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
TQ2-12V-3RELAY TELECOM DPDT 1A 12V |
1,201 | 3.31 |
|
Datasheet |
TQ | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 11.7 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 3 ms | 3 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
V23079A1001B301RELAY GENERAL PURPOSE DPDT 2A 5V |
14,028 | 3.83 |
|
Datasheet |
V23079, AXICOM | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 28 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
G6S-2 DC4.5RELAY TELECOM DPDT 2A 4.5V |
5,118 | 3.99 |
|
Datasheet |
G6S | Tube | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 31 mA | Non Latching | - | PC Pin | - | - | 3.38 VDC | 0.45 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
EC2-3SNURELAY GENERAL PURPOSE DPDT 2A 3V |
3,133 | 3.14 |
|
Datasheet |
EC2 | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 33.3 mA | Latching, Single Coil | - | PC Pin | - | - | 2.25 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
EE2-4.5NUH-LRELAY GEN PURPOSE DPDT 2A 4.5V |
638 | 3.14 |
|
Datasheet |
EE2 | Tape & Reel (TR) | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 31.1 mA | Non Latching | - | Gull Wing | - | - | 3.38 VDC | 0.45 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|

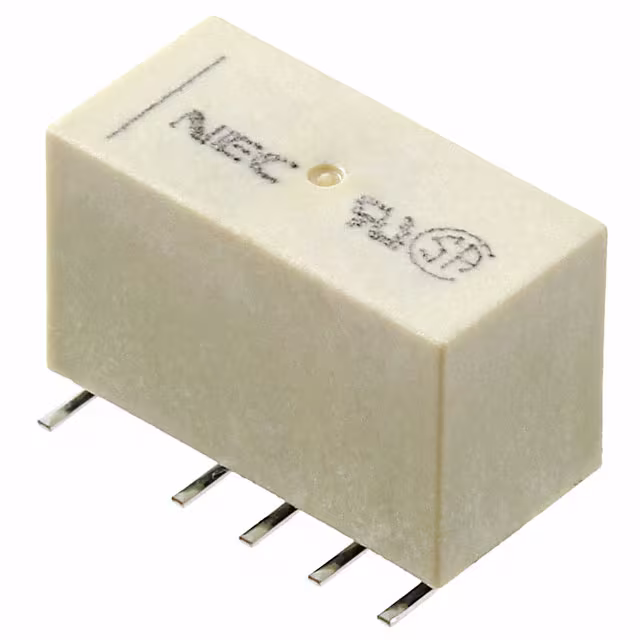

EE2-3TNU-LRELAY GENERAL PURPOSE DPDT 2A 3V |
1,997 | 3.17 |
|
Datasheet |
EE2 | Tape & Reel (TR) | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 46.7 mA | Latching, Dual Coil | - | Gull Wing | - | - | 2.25 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
TX2-LT-24VRELAY TELECOM DPDT 2A 24V |
341 | 3.39 |
|
Datasheet |
TX | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 8.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 18 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
AGQ200A09RELAY TELECOM DPDT 2A 9V |
534 | 2.12 |
|
Datasheet |
AGQ | Tube | Active | Surface Mount | 9VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 125VA, 110W | 15.5 mA | Non Latching | - | Gull Wing | - | - | 6.75 VDC | 0.9 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
