Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

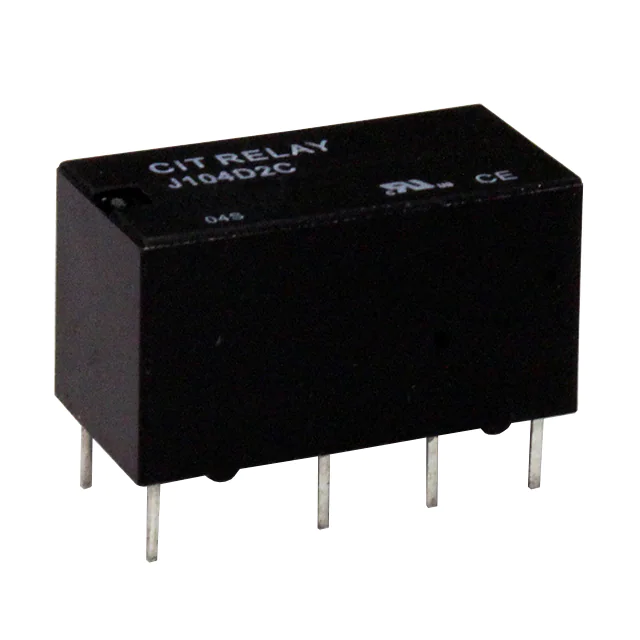

J104D2C3VDC.15SRELAY GENERAL PURPOSE DPDT 2A 3V |
1,921 | 1.29 |
|
Datasheet |
J104D | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 100VDC - Max | 500VA, 200W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
SR5-12V-200-1CRELAY GEN PURPOSE SPDT 1A 12V |
826 | 1.30 |
|
Datasheet |
SR5 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 16.7 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
SR5-5V-200-1CRELAY GENERAL PURPOSE SPDT 1A 5V |
781 | 975.00 |
|
Datasheet |
SR5 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 40 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
SR5-3V-200-1CRELAY GENERAL PURPOSE SPDT 1A 3V |
147 | 990.00 |
|
Datasheet |
SR5 | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 66.7 mA | Non Latching | - | PC Pin | - | - | 2.25 VDC | 0.3 VDC | 5 ms | 5 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
J104D2C5VDC.15SRELAY GENERAL PURPOSE DPDT 2A 5V |
5,410 | 1.31 |
|
Datasheet |
J104D | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 100VDC - Max | 500VA, 200W | 29.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
J104D2C6VDC.20SRELAY GENERAL PURPOSE DPDT 2A 6V |
2,393 | 1.34 |
|
Datasheet |
J104D | Tube | Active | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | 250VAC, 100VDC - Max | 500VA, 200W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|

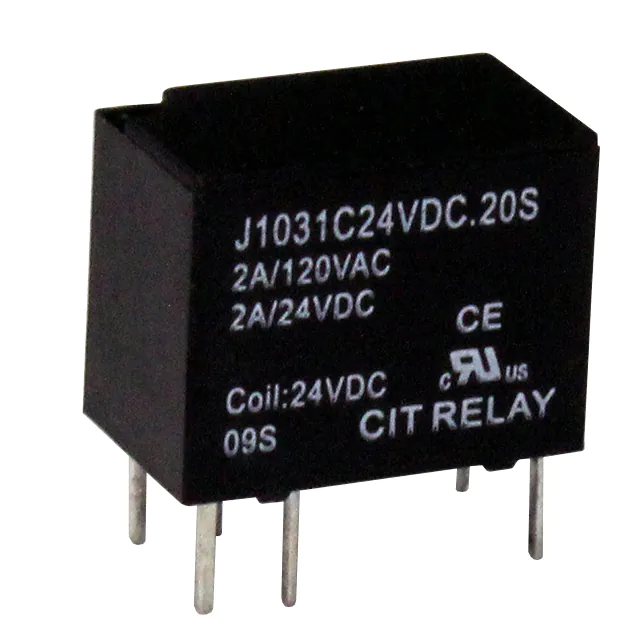

J1031C24VDC.20SRELAY GEN PURPOSE SPDT 2A 24V |
1,755 | 1.34 |
|
Datasheet |
J103 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 2 A | 125VAC, 60VDC - Max | 250VA, 120W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 4.5 ms | 1.5 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
J104D2C9VDC.20SRELAY GENERAL PURPOSE DPDT 2A 9V |
1,996 | 1.36 |
|
Datasheet |
J104D | Tube | Active | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 250VAC, 100VDC - Max | 500VA, 200W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
SR7-3V-200-1CRELAY GENERAL PURPOSE SPDT 1A 3V |
902 | 1000.00 |
|
Datasheet |
SR7 | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 66.7 mA | Non Latching | - | PC Pin | - | - | 2.25 VDC | 0.3 VDC | 5 ms | 5 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
AZ822-2C-5DERELAY GENERAL PURPOSE DPDT 2A 5V |
1,465 | 1.06 |
|
Datasheet |
AZ822 | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.25 VDC | 5 ms | 2 ms | -55°C ~ 90°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
AZ822-2C-5DSERELAY GENERAL PURPOSE DPDT 2A 5V |
2,851 | 1.06 |
|
Datasheet |
AZ822 | Tray | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 29.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.25 VDC | 5 ms | 2 ms | -55°C ~ 90°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
SR5-24V-200-1CRELAY GEN PURPOSE SPDT 1A 24V |
508 | 1.47 |
|
Datasheet |
SR5 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 8.3 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
AZ822-2C-24DERELAY GEN PURPOSE DPDT 2A 24V |
429 | 1.24 |
|
Datasheet |
AZ822 | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 1.2 VDC | 5 ms | 2 ms | -55°C ~ 90°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|

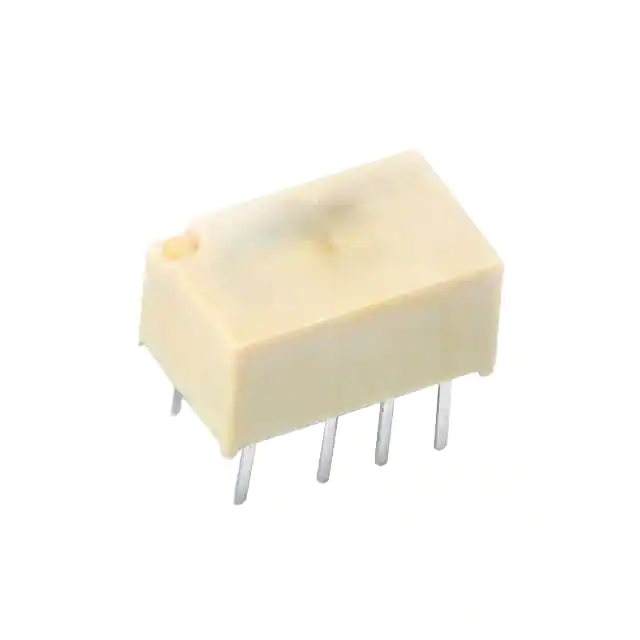

EA2-12NJRELAY GEN PURPOSE DPDT 1A 12V |
2,384 | 2.63 |
|
Datasheet |
EA2 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 11.7 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
UD2-3NURELAY GENERAL PURPOSE DPDT 1A 3V |
1,518 | 2.63 |
|
Datasheet |
UD2 | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 46.7 mA | Non Latching | - | Gull Wing | - | - | 2.25 VDC | 0.3 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
SR3-5V-150-1CRELAY GENERAL PURPOSE SPDT 1A 5V |
1,408 | 745.00 |
|
Datasheet |
SR3 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 29.9 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

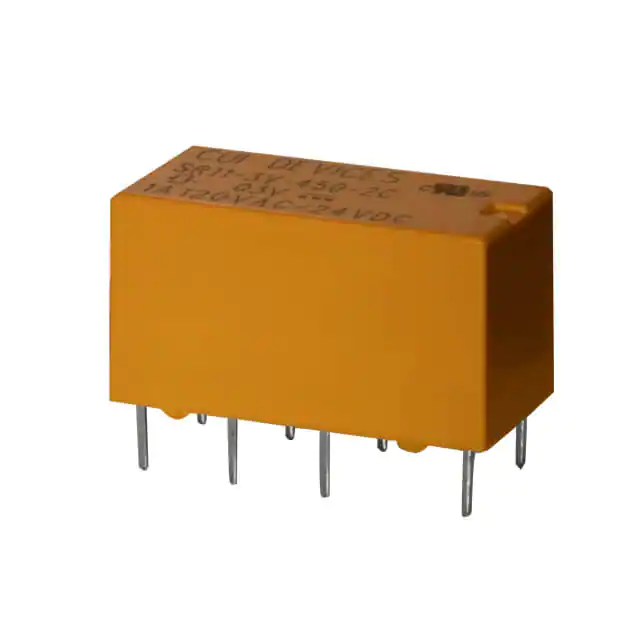

SR11-3V-200-2CRELAY GENERAL PURPOSE DPDT 1A 3V |
788 | 970.00 |
|
Datasheet |
SR11 | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 66.7 mA | Non Latching | - | PC Pin | - | - | 2.25 VDC | 0.3 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
SR11-12V-200-2CRELAY GEN PURPOSE DPDT 1A 12V |
288 | 975.00 |
|
Datasheet |
SR11 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 16.7 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
SR11-5V-200-2CRELAY GENERAL PURPOSE DPDT 1A 5V |
173 | 1000.00 |
|
Datasheet |
SR11 | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 40 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
AGN210A03RELAY TELECOM DPDT 1A 3V |
862 | 2.12 |
|
Datasheet |
AGN | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 33.3 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 2.25 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
