Rotary Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

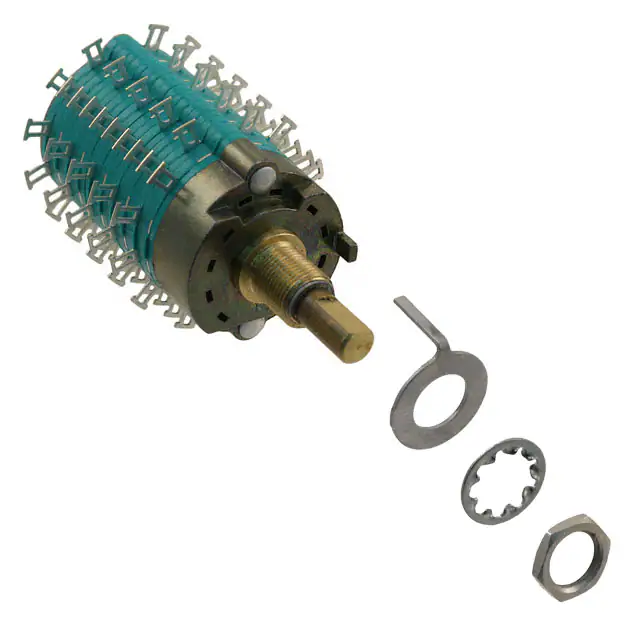

C4D1504N-ASWITCH ROTARY 2-4POS 300MA 125V Electroswitch |
2,505 | 82.96 |
|
Datasheet |
C4 | Bulk | Active | 2 ~ 4 | Adjustable | 5 | 3 | 3P4T | Non-Shorting (BBM) | 300mA (AC), 500mA (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 48.97mm |
|

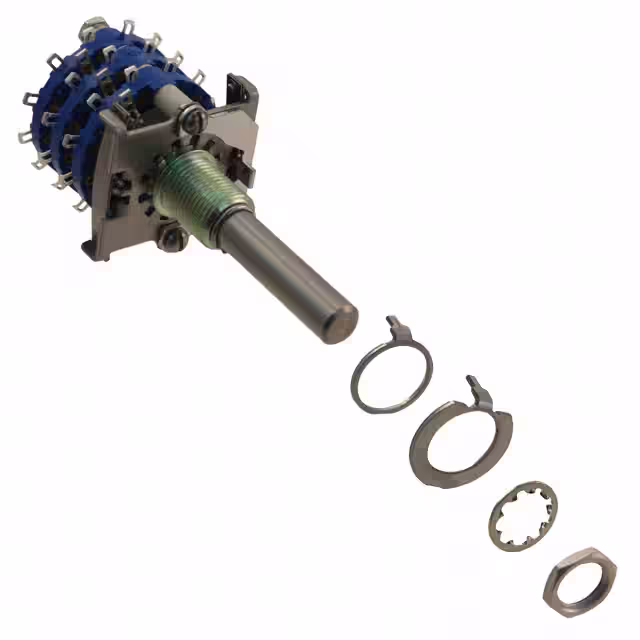

D2D0312NSWITCH ROTARY 2-12POS 250MA 115V Electroswitch |
3,647 | 84.08 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 12 | Adjustable | 3 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 24.69mm |
|

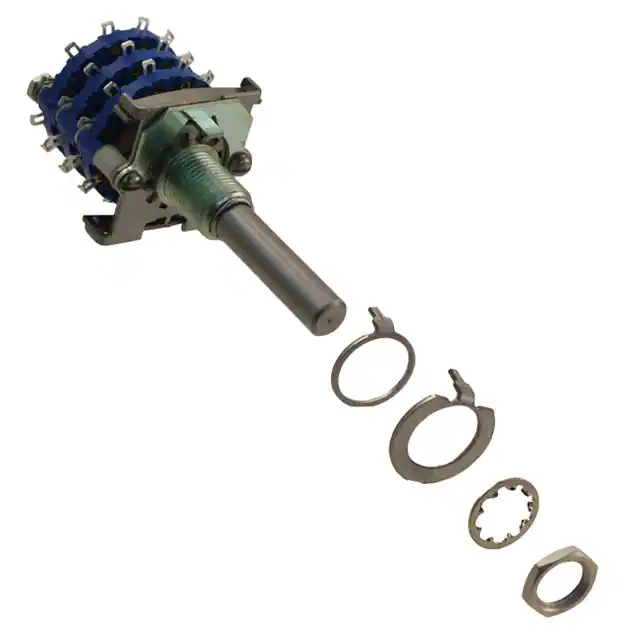

D2D0606NSWITCH ROTARY 2-6POS 250MA 115V Electroswitch |
4,542 | 85.02 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 6 | Adjustable | 3 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 24.69mm |
|

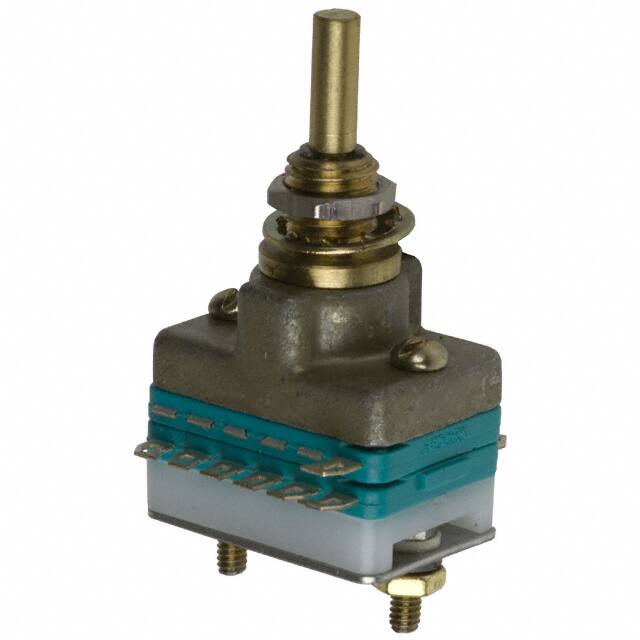

C1D0206N-ASWITCH ROTARY 2-6POS 100MA 125V Electroswitch |
4,424 | 35.55 |
|
Datasheet |
C1 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 20.60mm |
|
C7D0323SSWITCH ROTARY 23POS 500MA 125V Electroswitch |
2,646 | 96.99 |
|
Datasheet |
C7 | Bulk | Active | 23 | Fixed | 3 | 1 | SP23T | Shorting (MBB) | 500mA (AC), 1A (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 15° | Brass | Silver | Panel Mount | Solder Lug | - | 44.38mm |
|
|
C6P0112N-RASWITCH ROTARY 2-12POS 1A 125V Electroswitch |
2,161 | 6.11 |
|
Datasheet |
C6 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 1A (AC/DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 14.10mm |
|
|
C6P0112N-ASWITCH ROTARY 2-12POS 1A 125V Electroswitch |
4,886 | 6.45 |
|
Datasheet |
C6 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 1A (AC/DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 20.07mm |
|
|
C5P0112N-RASWITCH ROTARY 2-12POS 1A 125V Electroswitch |
4,720 | 6.63 |
|
Datasheet |
C5 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 1A (AC/DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | Sealed | 14.10mm |
|
|
C6P0206N-ASWITCH ROTARY 2-6POS 1A 125V Electroswitch |
4,391 | 6.97 |
|
Datasheet |
C6 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 1A (AC/DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 20.07mm |
|
|
C6P0206N-RASWITCH ROTARY 2-6POS 1A 125V Electroswitch |
3,924 | 6.97 |
|
Datasheet |
C6 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 1A (AC/DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 14.10mm |
