Rotary Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

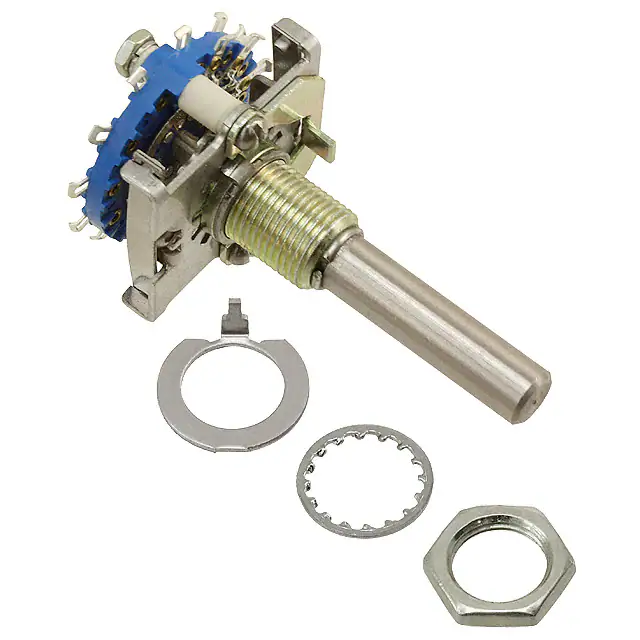

D2D0305NSWITCH ROTARY 2-5POS 250MA 115V Electroswitch |
3,748 | 47.83 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 3 | 3P5T | Non-Shorting (BBM) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 11.99mm |
|

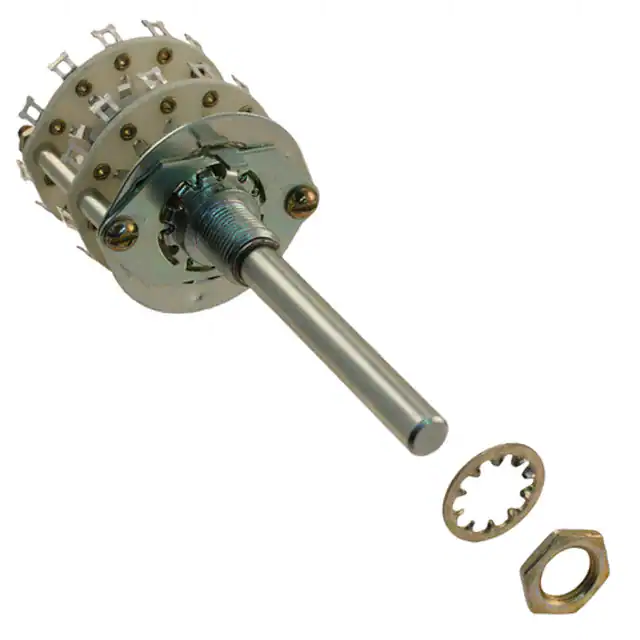

D4G0211NSWITCH ROTARY 2-11POS 500MA 115V Electroswitch |
2,546 | 50.08 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 11 | Adjustable | 2 | 1 | SP11T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 28.55mm |
|

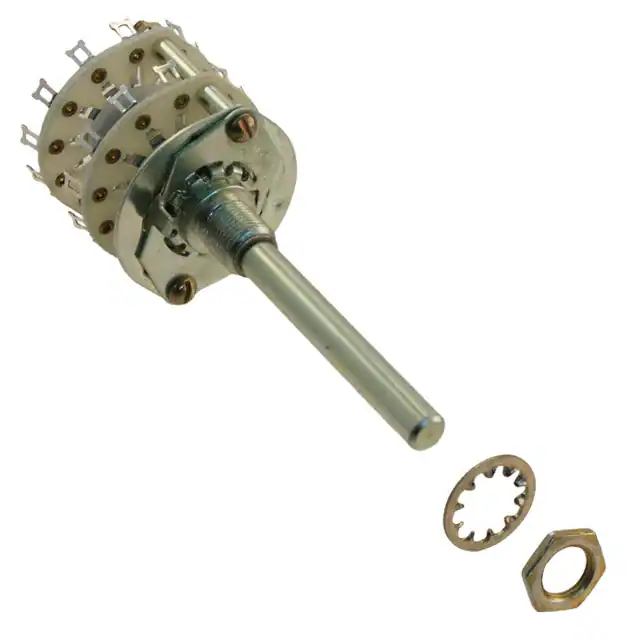

D4G0405NSWITCH ROTARY 2-5POS 500MA 115V Electroswitch |
3,178 | 50.08 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | 2 | DP5T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 28.55mm |
|

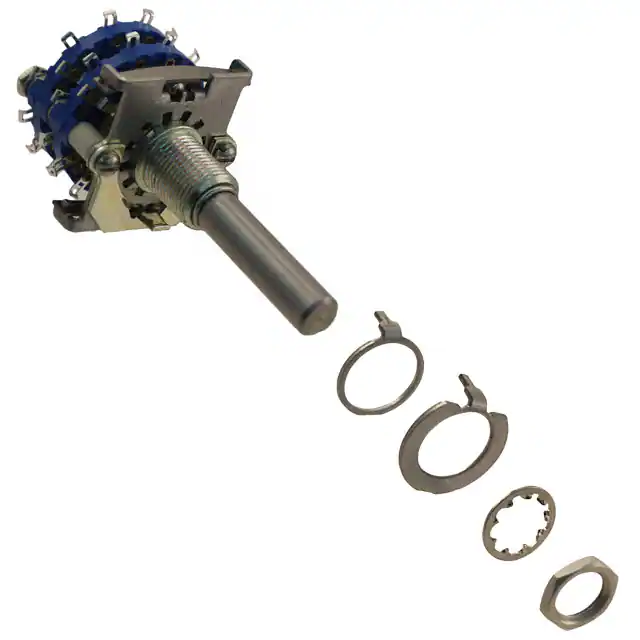

D2D0605NSWITCH ROTARY 2-5POS 250MA 115V Electroswitch |
2,926 | 63.72 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | 3 | 3P5T | Non-Shorting (BBM) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 18.34mm |
|

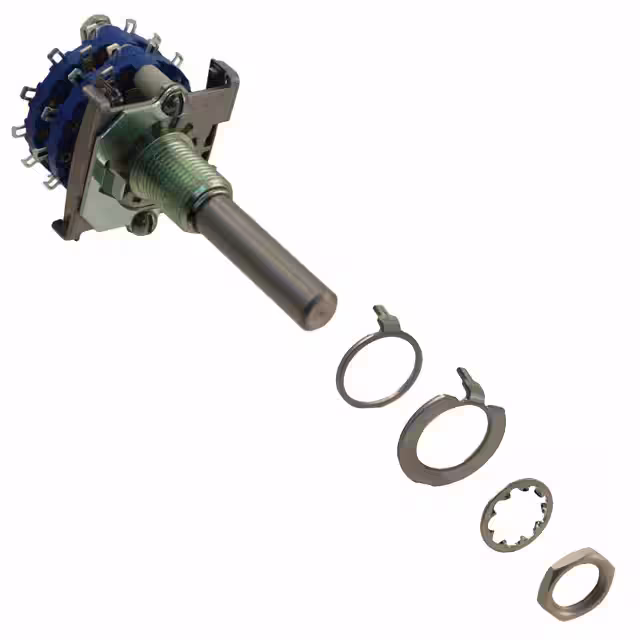

D2D0406NSWITCH ROTARY 2-6POS 250MA 115V Electroswitch |
4,881 | 66.52 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 18.34mm |
|

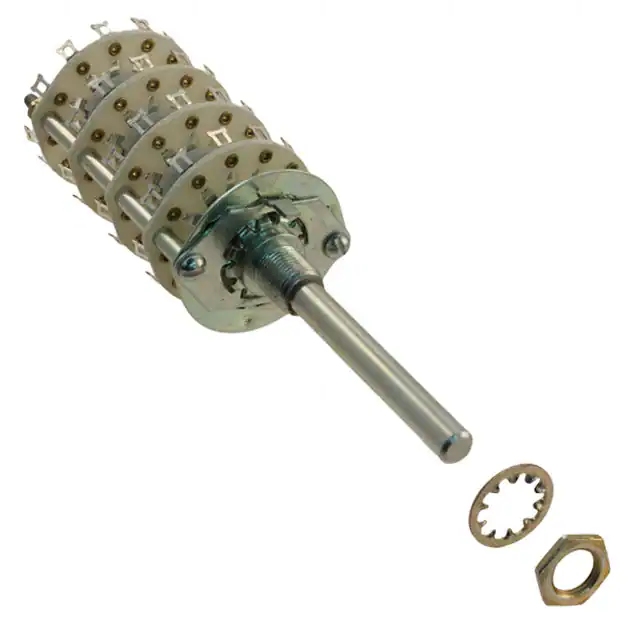

D4G0411NSWITCH ROTARY 2-11POS 500MA 115V Electroswitch |
4,808 | 82.77 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 11 | Adjustable | 4 | 1 | SP11T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 57.10mm |
|
C7D0112S-30CSWITCH ROTARY 12POS 500MA 125V Electroswitch |
1,155 | 38.99 |
|
Datasheet |
C7 | Bulk | Active | 12 | Continuous | 1 | 1 | SP12T | Shorting (MBB) | 500mA (AC), 1A (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 20.60mm |
|
|
D4C0606NSWITCH ROTARY 2-6POS 500MA 115V Electroswitch |
3,240 | 126.49 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 6 | Adjustable | 3 | 2 | DP6T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 45.24mm |
|
|
C4D0406S-ASWITCH ROTARY 2-6POS 300MA 125V Electroswitch |
3,252 | 43.43 |
|
Datasheet |
C4 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | 2 | DP6T | Shorting (MBB) | 300mA (AC), 500mA (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 27.33mm |
|
|
C3P0212N-4115SWITCH ROTARY 2-12POS 100MA 125V Electroswitch |
2,250 | 88.45 |
|
- |
C3 | Bulk | Active | 2 ~ 12 | Adjustable | 2 | 1 | SP12T | Non-Shorting (BBM) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Round (3.17mm Dia) | 17.50mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | - |
