Rotary Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M7G0148S-75SWITCH ROTARY 2-48POS 125MA 115V Electroswitch |
3,119 | 0.00 |
|
- |
M7 | Bulk | Active | 2 ~ 48 | Adjustable | 1 | 1 | SP48T | Shorting (MBB) | 125mA (AC), 500mA (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 17.46mm | 7.5° | Silver Alloy | - | Panel Mount | Solder Lug | - | 27.61mm |
|
|
D8G0517NSWITCH ROTARY 2-17POS 1A 115V Electroswitch |
3,959 | 196.48 |
|
Datasheet |
D8 | Bulk | Active | 2 ~ 17 | Adjustable | 5 | 1 | SP17T | Non-Shorting (BBM) | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 20° | Brass | Silver | Panel Mount | Solder Lug | - | 64.57mm |
|
|
M5D0412S-ASWITCH ROTARY 2-12POS 2.5A 120V Electroswitch |
2,284 | 197.65 |
|
Datasheet |
M5 | Bulk | Active | 2 ~ 12 | Adjustable | 4 | 1 | SP12T | Shorting (MBB) | 2.5A (AC), 2A (DC) | 120 V | 28 V | Flatted (6.35mm Dia) | 11.11mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 49.28mm |
|
|
D4C0512NSWITCH ROTARY 2-12POS 500MA 115V Electroswitch |
1,442 | 197.98 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 12 | Adjustable | 5 | 1 | SP12T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 75.72mm |
|
|
D4C0512SSWITCH ROTARY 2-12POS 500MA 115V Electroswitch |
3,833 | 197.98 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 12 | Adjustable | 5 | 1 | SP12T | Shorting (MBB) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 75.72mm |
|
|
D9G0423NSWITCH ROTARY 2-23POS 250MA 115V Electroswitch |
4,900 | 202.48 |
|
Datasheet |
D9 | Bulk | Active | 2 ~ 23 | Adjustable | 4 | 1 | SP23T | Non-Shorting (BBM) | 250mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 15° | Brass | Silver | Panel Mount | Solder Lug | - | 51.87mm |
|
|
M5D0412N-ASWITCH ROTARY 2-12POS 2.5A 120V Electroswitch |
2,137 | 204.48 |
|
Datasheet |
M5 | Bulk | Active | 2 ~ 12 | Adjustable | 4 | 1 | SP12T | Non-Shorting (BBM) | 2.5A (AC), 2A (DC) | 120 V | 28 V | Flatted (6.35mm Dia) | 11.11mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 49.28mm |
|

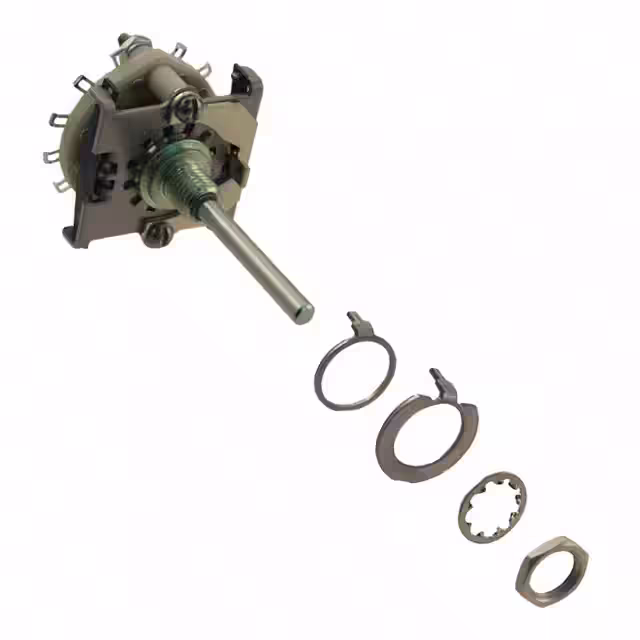

D2C0303NSWITCH ROTARY 2-3POS 250MA 115V Electroswitch |
1,137 | 207.98 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 3 | Adjustable | 1 | 3 | 3P3T | Non-Shorting (BBM) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (3.17mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
D3C0605NSWITCH ROTARY 2-5POS 500MA 115V Electroswitch |
2,261 | 264.59 |
|
Datasheet |
D3 | Bulk | Active | 2 ~ 5 | Adjustable | 3 | 2 | DP5T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 32.79mm |
|
|
D7G0611NSWITCH ROTARY 2-11POS 1A 115V Electroswitch |
2,699 | 211.81 |
|
Datasheet |
D7 | Bulk | Active | 2 ~ 11 | Adjustable | 6 | 1 | SP11T | Non-Shorting (BBM) | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 151.64mm |
